Meyer Sound UltraMonitor UM-1C Operating Instructions

Meyer Sound UltraMonitor UM-1C Operating Instructions

Compact high-power biamplified loudspeaker

Advertisement

Quick Links

UM-1C
UltraMonitor
TM
Operating Instructions

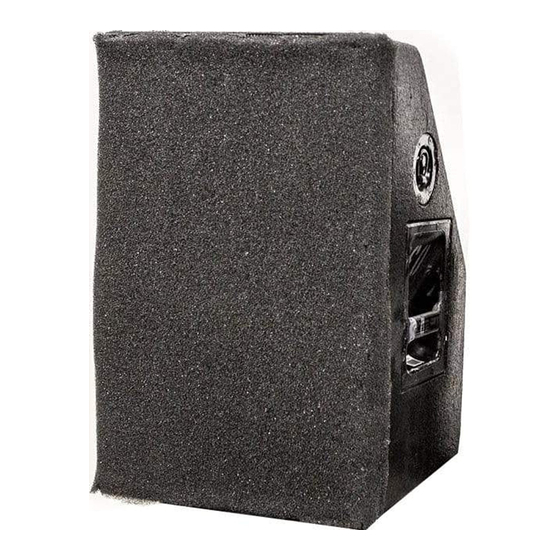

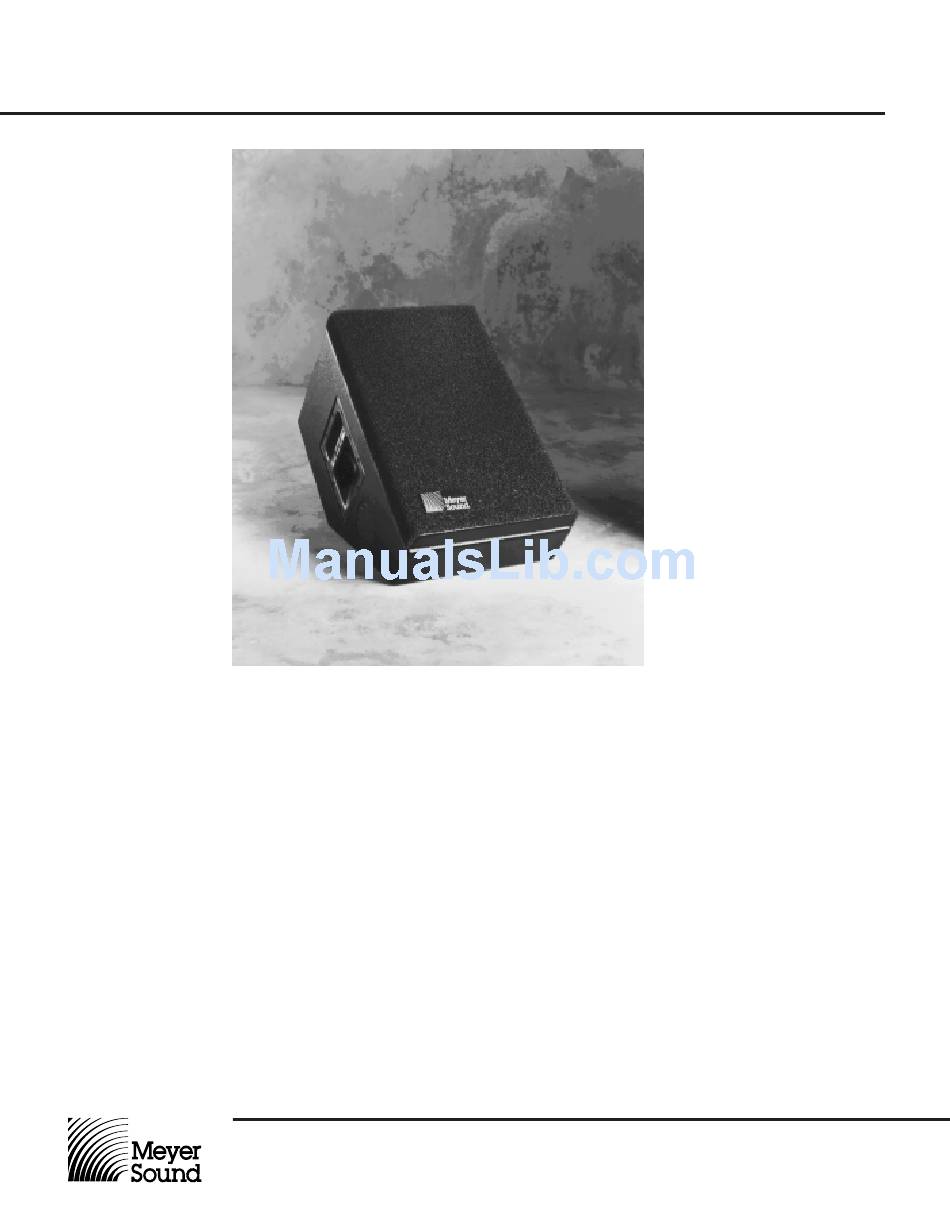

The Meyer Sound UM-1C UltraMonitor
compact, high-power biamplified loudspeaker
designed specifically for stage monitor applications.
It consists of a proprietary 12-inch low-frequency
cone driver with a symmetrical 60-degree high-
frequency horn and driver in a vented enclosure.
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
The UM-1C is designed to be operated as a system
is a
TM
with the Meyer Sound M-1A Control Electronics
Unit (one M -1A per channel). The M-1A comprises
electronic crossover, Meyer Sound exclusive
SpeakerSense
amplitude and phase response alignment circuitry
optimized for the loudspeaker.
driver protection circuitry, and
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the UltraMonitor UM-1C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Meyer Sound UltraMonitor UM-1C

  • Page 1 2832 San Pablo Avenue Berkeley, CA 94702 The UM-1C is designed to be operated as a system is a with the Meyer Sound M-1A Control Electronics Unit (one M -1A per channel). The M-1A comprises electronic crossover, Meyer Sound exclusive SpeakerSense...
  • Page 2 UM-1C, the male end of the cable to the Meyer Sound pigtail adapter, and the banana connectors of the adapter to your amplifier outputs. In making connections between the UM-1C and the amplifier, be sure to connect the 12-inch driver to the Lo channel, and the horn driver to the Hi channel.
  • Page 3 420 lbs (190 kg). Any of the individual rigging points is ⁄8 capable of supporting this load with an adequate safety margin. However, Meyer Sound strongly recommends that safety lines be run to the other points. If the struc- tural integrity of any cabinet has been compromised by damage or negligence, then the safety of the rigging cannot be assured.
  • Page 4 Loudspeaker driven with pink noise. Meyer Sound Part Number 05051044.03 Revision A, November 1992 © Meyer Sound, 1985 - 1992. All rights reserved. This document may not be reproduced without permission. Meyer Sound Laboratories, Inc. 2832 San Pablo Avenue Berkeley, CA 94702...
