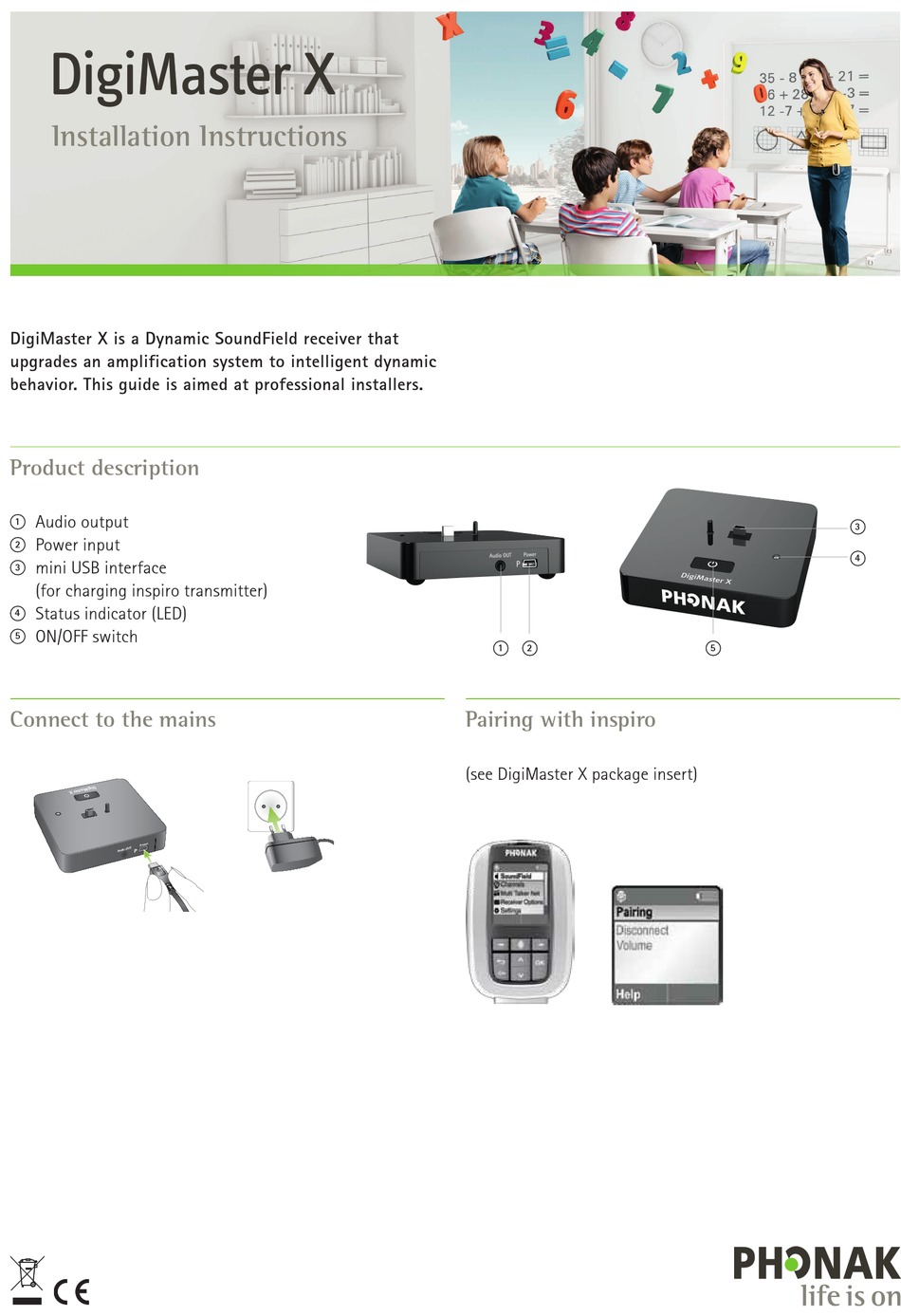

Installation Instructions

DigiMaster X is a Dynamic SoundField receiver that
upgrades an amplification system to intelligent dynamic
behavior. This guide is aimed at professional installers.
www.phonak.com

Product description

1. Setup
Audio output
1
Power input
2
mini USB interface
3
(for charging inspiro transmitter)
Status indicator (LED)
4
ON/OFF switch
5
DigiMaster X
Connect to the mains
2. Setup: Connect to the power
3. Setup: Pairing inspiro with DigiMaster X
Power adapter
Audio cable
www.phonak.com
1. Setup
DigiMaster X
2. Setup: Connect to the power
1
2
inspiro
Pairing with inspiro
3. Setup: Pairing inspiro with DigiMaster X
(see DigiMaster X package insert)
4. Setup: Connect to audio device
Power adapter
5
Press (2 s.)
Audio cable
3
4

Advertisement

loading
Need help?

Need help?

Do you have a question about the DigiMaster X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phonak DigiMaster X

  • Page 1: Installation Instructions

    Installation Instructions www.phonak.com 1. Setup DigiMaster X is a Dynamic SoundField receiver that upgrades an amplification system to intelligent dynamic behavior. This guide is aimed at professional installers. www.phonak.com Product description DigiMaster X Power adapter Audio cable 1. Setup 2. Setup: Connect to the power...
  • Page 2: Setting The Microphone Gain

    • The distance between the DigiMaster X and the room’s ex- isting amplifier system should be as short as possible. • The power supply for the DigiMaster X and the power sup- ply for the amplifier can be fed from the same mains.
  • Page 3 3.5 mm <–> 6.3 mm Jack adapter Mic input = XLR 3.5 mm <-> XLR jack cable Balanced input vs unbalanced input Both balanced and unbalanced system inputs can be used with the DigiMaster X. However the balanced connection is recommended. DigiMaster X Balanced...
  • Page 4 Connection to computer (recording) and amplification system Mic input = 3.5 mm mono jack Y-jack splitter Mic input = 3.5 mm Caution: such connections may cause hum. Connection to Grommes-Precision XAV-102-A The gain of the microphone input is set by a potentiometer on the Wall Plate Remote Module.
  • Page 5 Connection to RDL FP-PA20A AUDIO AMP Audio from DigiMaster X...
  • Page 6 CH4+/CH4-(Bal) series-socket as depicted above. Identical values Shielding The screenshot show: • Set-up on channel 4 for DigiMaster X • Mono, Gain 32 • Fine-tune the volume • Change the ‘PreSet Vol:’ to the same value as the Master out volume...
  • Page 7 Connection to CAT 855 Lightspeed Connect the cable (1 × 3.5 mm Mono and 2 × RCA) from the Digimaster X output and CD/DVD input of the CAT 885 amplifier. Set the microphone gain Connect inspiro with the DigiMaster X. Increase the DigiMaster X’s volume level to + 8dB in the inspiro menu.
