Gator PT350 User Manual

Multi-functional tracker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

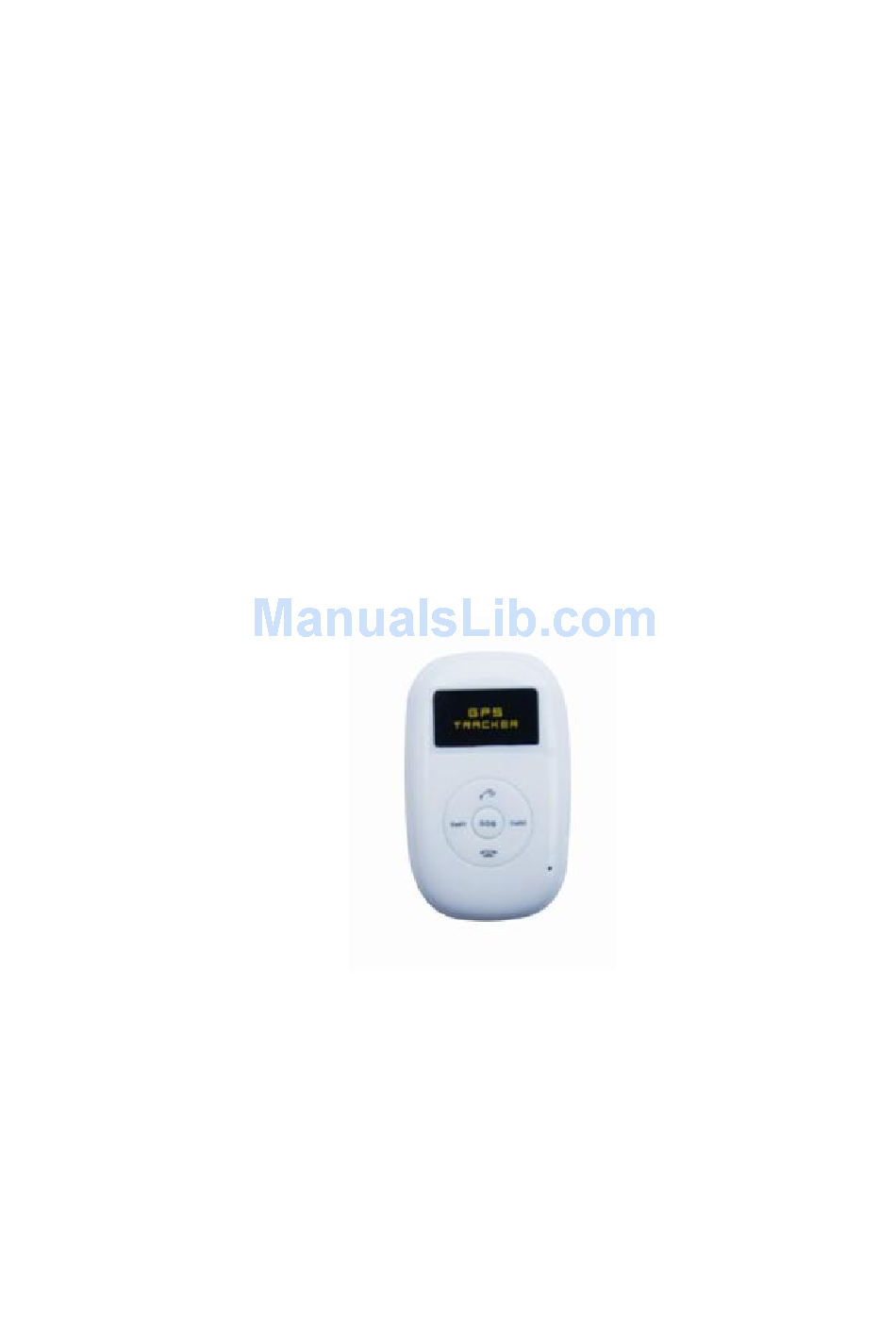

PT350 Multi-functional Tracker

User Manual

Edition 1.0
Copyright © Feb. 15, 2009
GATOR GROUP CO.,LTD. All rights reserved.
LA Brand
http://www.gatorcn.com
China Printing
WEB
http://www.gatorcn.com
:
EMAIL
: vip12@gatorcn.com
Tel: +86-755-23085553
Mob: +86-18620381992

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gator PT350

Summary of Contents for Gator PT350

  • Page 1: User Manual

    PT350 Multi-functional Tracker User Manual Edition 1.0 Copyright © Feb. 15, 2009 GATOR GROUP CO.,LTD. All rights reserved. LA Brand http://www.gatorcn.com China Printing http://www.gatorcn.com EMAIL : vip12@gatorcn.com Tel: +86-755-23085553 Mob: +86-18620381992...

  • Page 2: Table Of Contents

    Contents Chapter I Preface ............................2 I. General ..............................2 II. Notices ..............................2 Chapter II About the Device ..........................2 I. Components .............................. 2 II. Product Features ............................ 2 III. Product Specifications .......................... 3 1. Technical Specifications ........................3 2.

  • Page 3: Chapter I Preface

    3. The defaulted password of this product is 0000. Chapter II About the Device PT350, as a personal remote positioning device made up of GPS module and GSM/GPRS module, is compact in dimensions and has high accuracy. On the basis of GPS satellites and under dynamic conditions, it can provide you with accurate and correct location information.

  • Page 4: Product Specifications

    ● Can work effectively in limited space such as the remote and narrow places in a city; ● Low energy consumption; ● Fast signal capturing; ● Supports single positioning and continuous tracking; ● Supports alarming and remote monitoring; ● Supports fast dial button; ●...

  • Page 5: Charge The Battery

    CALL 2 button Lanyard hole Receive button Speaker sound hole SOS button Call 1 button End button Power button Power-on indicator II. Charge the Battery Before the use of the tracker, please charge the battery at least 4h via the USB charging cable. For the first charge, in order to bring the performance of the battery into full play, charge it above 12h.

  • Page 6: Chapter Iv Commands Corresponding To And Operation Method Of Basic Functions

    Remove this small iron piece Insert the SIM card in as directed Restore the small iron piece Choose SIM card:  The type of the SIM card is GSM card (the SIM card of China Mobile is recommended).  Make sure the SIM card has sufficient amount in order to pay the communication cost. ...

  • Page 7: Setup Of Center Number

    2. Setup of Center Number Set the center number by means of SMS through mobile phone. After the setup is successful, then the mobile phone sending the SMS will receive the “config OK” response message from the terminal. Command format: #710# center number # user password ## For example: #710#134xxxxxxxx#0000## Note: All alarming information thereafter including SOS, low power, electronic fence, etc will be returned to such number.

  • Page 8: Regular Upload Interval Setup

    SMS format: 5550000 Remarks: 0000 is the initial default password and the actual use s subject to the actual password. 6. Regular Upload Interval Setup The defaulted factory upload interval of this device is 2 minutes for getting the point and 10 minutes for uploading one piece of positioning information.

  • Page 9: Set Server Address(Ip,Port)

    10. Set server address(ip,port) Command Format: #803# Fixed IP address# port number#4-digit password## This command is used to set GPRS center server address, which could be fixed IP number, like IP1, IP2, IP3, IP4……as well as domain name with the length less than 64. After the setup is successful, the module will send a reply with „&803&successful setting&&‟...

  • Page 10: Gsm Fence Function

    user password ##. For example: #751#500#5#22.5442N#113.91E#0000## After the setup is successful, the setting mobile phone will receive a piece of config ok command. Then, when the ward leaves this area, the terminal will send the alarming information of being out of the fence to the center number.
  • Page 11 send to the mobilephone of the sender. #701#0000## When X=1, the mode is SMS Center Way mode,the feedback will send to the saver numberof the unit. #703#0000## When X=3, unit is in the GPRS Mode. #704#0000## When X=4, unit is in the GPRS Mode,the different as X=3 is that when the data is change what is less...
  • Page 12 1.#803# Fixed IP address# port number#4-digit This command is used to password## set GPRS center server #803#58.60.185.172#9125#0000## Gator‟s address, which could be server) fixed IP number, and port User name #801#4~20-digit letters or numbers # Password ## Set username for device.
  • Page 13 number, press " Call2" can dial the third number. if a new number is coming, you can listen by hang up button, hang down button for close Monitor Function Send : 555+Password After the unit receive this Eg: 5550000 command, the unit will call the sender SOS Alarm Send SOS Alarm Command : 720...

  • Page 14: Notices

    （3）#903## Data （4）#904## （3）Restart the Unit （5）#905## （ 4 ） Connect with the GPRS （5） Cut Off GPRS Notices: 1. This device is of non-waterproof design. 2. This device must work with the cooperation of GSM/GPRS network. 3. Make sure that the SIM card has sufficient balance in order to avoid inconvenience in use.
