Gator M588T User Manual

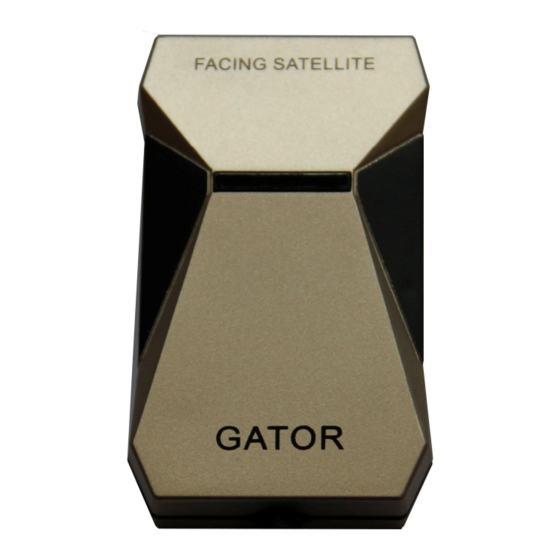

Cruise vehicle tracking device. gps+gsm+sms/gprs
Hide thumbs
Table of Contents

Advertisement

Quick Links

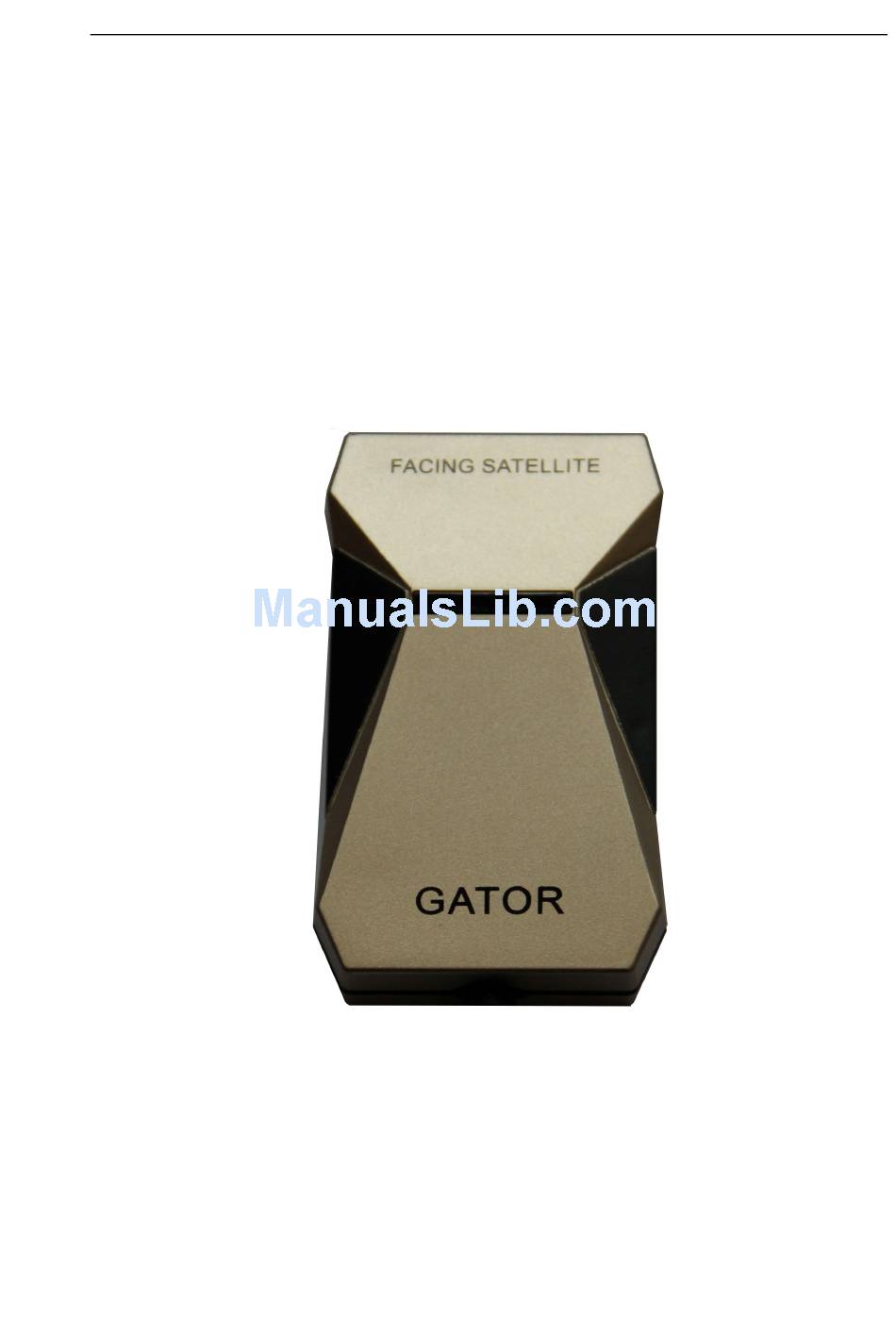

Cruise
Vehicle Tracking Device
Model No.: M588T(Third Version)
(GPS+GSM+SMS/GPRS)
User Manual
Copyright © 2015 GATOR GROUP CO., LTD. All rights reserved.
1 / 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M588T and is the answer not in the manual?

Questions and answers

Related Manuals for Gator M588T

Summary of Contents for Gator M588T

  • Page 1 Cruise Vehicle Tracking Device Model No.: M588T(Third Version) (GPS+GSM+SMS/GPRS) User Manual Copyright © 2015 GATOR GROUP CO., LTD. All rights reserved. 1 / 12...

  • Page 2: Table Of Contents

    Notes:  Please mount the device steadily on the flat place before using;  Please make sure the voltage value is right before connecting with battery, and placing the wires to where shouldn’t be trodden;  Please power off when plugging or taking out of any module or connector; ...

  • Page 3: Product Introduction

    1. Product Introduction GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS module is for getting location data from satellite, and GSM module is for transferring data to server so that people can check the information via PC or mobile phone. Our GPS Tracking device, with the best quality, stable performance and versatile functions，can be applied to various kind of fleet management like construction trucks, rental cars, logistics vehicles and public transportation, anti-theft system and security purpose.

  • Page 4: Characteristics

    2. Characteristics 1) GSM 850/900/1800/1900 Quad band 2) Wide for voltage input range: 11-50VDC(can customized 40-90VDC) 3) GPS continuous positioning, GPRS timing interval 4) Support check location via SMS 5) Built-in vibration sensor, theft-proof 6) ACC ignition detection, car status prompt 7) Support Tele-cutoff (petrol/ electricity) remotely 8) Support setting three SOS numbers for voice monitoring remotely and received SOS alarm 9) Support connect SOS button to emergency Call for help...

  • Page 5: Pecification

    2.4.Pecifications Items Parameters work voltage 11VDC-50VDC work current About 55mA GSM module inside contain frequency GSM 850/900/1800/1900Mhz Communication protocol GPS module GPS MTK3337 GPS sensitivity -165dBm C/A coding L1,1575.42MHz C/A code Channels 22 channels examine track Position accuracy 5-15m Cold boot Work temperature -20～70℃...

  • Page 6: Device Wiring Diagram

    2.6 Device wiring diagram 6 / 12...

  • Page 7: Method Of Installation

    3. Method of installation 3.1. Preparation before installation 3.1.1 Open the packing box to check whether the type of device is correct and whether the accessories are included, or else please contact your distributor. 3.1.2 Choose SIM card: each device needs to insert a GSM SIM card. Please refer to the distributor’s suggestions to choose the SIM card.

  • Page 8: Sms Configuration

    e.g.: ss,*cmnet*,**,**,*211.154.139.208*,*8872*, *123456* Notes: If no username and password, please leave it blank, e.g: SS, *apn*,**,**,*IP*,*Port* ,*Password* the system number on the platform should be the last 11digital number of device IMEI eg: if your device IMEI number is 356814563232141 the system number on platform should be : 14563232141 5.
  • Page 9 Checking Parameter SN: 7893267638---Serial Number param,*password* setting e.g: param,*123456* IP: 211.154.139.208 PORT:8872--- Replied SMS content, eg platform server address SN:7893267638 IP: Upload ----GPRS data uploading 211.154.139.208 PORT:8872 interval, range from 10-18000s , interval,upload:10,sleep:10,alarm:1 default :15s Sleep----sleep mode interval, range from 1-65535 Minutes, default :10 Minutes 0 means no sleep mode Sensor alarm time lnterval:10--- defense delay , setting range:1-60...
  • Page 10 Restore to factory If you want to make all parameter www.gatorcn.com setting setting back to default factory data. Once received “OK”, it means restore success. Check GPS location After sending this command to url# device successfully , it will reply a location Google Map Link, you can check where the car is by clicking Link .

  • Page 11: 6．Trouble Shooting

    . (Details: If the users are testing the device in office or at home, M588T has to connect with 12V DC external power supply. If it is tested in the car, make sure the installer connect all the cable correctly.) b) Check the LEDs’...

  • Page 12: Standard Accessories

    7. Standard Accessories Device Relay Power Wires Microphone SOS button 12 / 12...
