Summary of Contents for Gator GTRACK4G

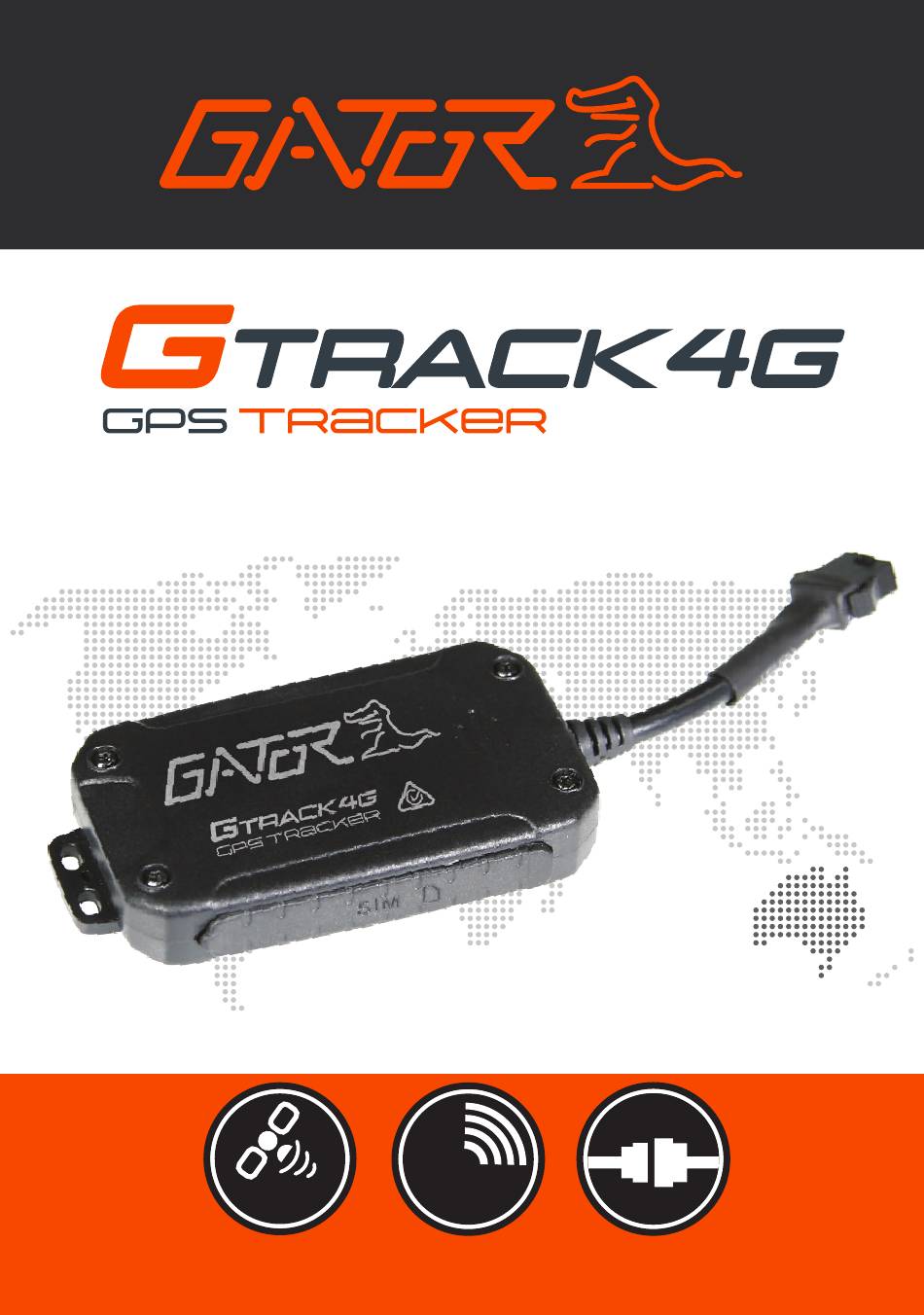

- Page 1 PRODUCT USER MANUAL Data Recording Network Wired...
-
Page 2: Product Overview
Product overview The GTRACK4G GPS Tracker has been designed to offer an efficient, effective vehicle tracking system for managing your business fleet. A 3G GPS tracking... -
Page 3: Product Features
Product features: • Built-in cellular and GPS antenna for easy installation • 3G compatible • Requires active Text/Data/Phone SIM card (Mobile SIM) not included • Real-time tracking with history route • Lithium-ion rechargeable battery • 3 hour battery backup • Built-in motion sensor •... -
Page 4: Table Of Contents
Table of contents Introduction...........p2 Product overview..........p2 Product features...........p3 Table of contents...........p4 Package components...........p5 Installation & setup..........p6-9 Check list ............p10-11 Function commands ........p12-14 Download Smartphone App........p14 Login by Smartphone App......p15-16 Smartphone home screen........p17 Device list screen..........p18 Historical route screen........p19 Geofence location screen........p20 Issue command screen........p21 Device screen.............p22 Common command screen........p23... - Page 5 1. GPS tracker module 2. Relay and harness 3. Power cable with in-line fuse 4. Adhesive MountPad...
- Page 6 Activation & Authorisation 1. Open the rubber plug, Insert an active Text/Data/Phone SIM card that supports 3G/GPRS network into the slot and make sure the chip side is up. (Picture 1) 2. Connect power cable and relay (optional) and follow wiring diagram...
- Page 7 3. The GTRACK4G must know who you are and where to send alerts. Set ADMIN number, by sending a SMS command to the SIM card inside your device. For example: admin123456 xxxxxxxxxx (123456) is the default password. xxxxxxxxxx is your mobile number.
- Page 8 For example: apn123456 xxxxxxxxxx (123456) is the default password. xxxxxxxxxx is your mobile SIM card provider. NOTE: There is a space between password and SIM card provider. For use in other countries replace the APN with the corresponding countries SIM card provider 5.
-
Page 10: Check List
Check List For full list and more up to date information download the checklist at https://tdj.com.au/firmware/Gator/ GTRACK4G/ 1. Sim card must have active service/ dial, minimum data of 2 gbs and sms. 2. Insert the Sim card contacts side up. - Page 11 SMS reply to your phone should be “apn ok” NOTE: This tracker will work with all providers. This check list is important, if you type in the incorrect APN the device will not established a connection, the yellow led will not flash nor will it track. 7.
-
Page 12: Function Commands
Function commands Function Text to send to Gtrack4G Reply apn+123456+space+SIM apn ok provider apnuser+123456+space+SIM apnuser provider apnpasswd+123456+space+ apnpasswd SIM provider admin admin123456+space+admin admin ok number phone number time timezone+123456+space+ timezone zone GMT No. time sleep time sleep123456 time sleep... - Page 13 shock sleep sleep sleep123456 shock shock ok (default) sleep off no sleep sleep123456 off upload frequency upload123456+space+time upload ok Desired circuit Cut oil OK immobilise Arm & Arm delay 111 or SF Disarm in 0s Google Position G123456# or where...
-
Page 14: Download Smartphone App
Restart restart ok Back to format No reply factory Downloading Smartphone APP For iPhone: search “GTRACK” in the App Store to download For Android: search “GTRACK” in the App Google play store to download For further instructions of the Apps functionality, go to www.tdj.com.au/help-downloads and search for your product name... -
Page 15: Login By Smartphone App
Log in by Smartphone APP Log in by IMEI/ID... - Page 16 Log in by Smartphone APP Log in by Username (pending)
- Page 17 Home screen Device status info...
-
Page 18: Device List Screen
Device List screen... -
Page 19: Historical Route Screen
Historical route screen Set a time range location... -
Page 20: Geofence Location Screen
Geofence location screen... -
Page 21: Issue Command Screen
Issue command screen... -
Page 22: Device Screen
Device screen... -
Page 23: Common Command Screen
Common command screen... -
Page 24: General Command Screen
General command screen... -
Page 25: Alarm Setting Screen
Alarm setting screen... -
Page 26: Login By Website
Log in by website Open the website gtrack3g.com, choose IMEI No, enter the 10-digit ID code of the device, the default password is 123456, click “GO” to log in into the platform. IMEI number is printed on a sticker on the back of the unit. -
Page 27: Led Indicator Definition
Led indicator definition Green Indicator: Mobile Network (3G) Status of indicator Meaning Flash 3G conversation start Solid No 3G signal Power off or in sleep mode Blue Indicator: GPS Status of indicator Meaning Flash GPS location successful Solid Searching Power off or in sleep mode... -
Page 28: Trouble Shooting Guide
NOTE: When the equipment in power saving sleep mode, the light will turn off after about 10 minutes (settable) without any operation. Trouble shooting guide Q: Start up Fail? A: Check all wiring connections and fuses Q: The device cannot obtain location information? A: Place the unit in an open area to test. -
Page 29: Cautions
Cautions Please comply with the instructions to extend the unit life: 1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry. 2. Don’t use & store the unit in dusty places. 3. Do not place the unit in extremely hot or cold places 4. -
Page 30: Product Specifications
8. Please use the battery and charger provided by manufacturer. Using other batteries and chargers will cause unwanted situation. Product specifications Real-time tracking Vibration/Displacement/Low battery/ Power off/over speed alert Main power cut off alert ACC detection Geo-fence History Route Cut and resume functions remotely AGPS locating... - Page 31 Product specifications cont..Frequency WCDMA 850/900/1900/2100 MHz 3G Version support Backup Battery 3.7V 370mAh Networks WCDMA/GPRS Operating voltage 9-75V Location time Cold start 35s-80s Hot start 1s Location accuracy 5 meters Operating °C °C temperature Dimension 75*40*12mm Weight 39.5g...
-
Page 32: Sim Card Information
SIM Card into a mobile phone to receive the sim card activation sms. Please ensure the SIM Card is activated before installing it into the GTRACK4G. Ensure the SIM Card has sufficient TEXT & DATA credit. -
Page 33: Apn Settings
APN settings When configuring the GTRACK4G, you need to setup the mobile network APN (Access Point Name) to your GPS tracker (refer manual pg 7-8). This is required to access the mobile data service by the tracker. Your carrier APN is: ALDI Mobile: TELSTRA.INTERNET... -
Page 34: Technical Assistance
Technical assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference. - Page 35 printing but is subject to change. For latest manuals and updates refer to the website. Copyright © 2017 by TDJ Australia All rights reserved. No part of this publication may be reproduced, distrib- uted, or transmitted in any form or by any means, including photocopying, recording, copying or other electronic or mechanical methods, without the prior...
- Page 36 IMEI/SIM number safeguard Copy the IMEI/I.D. number (10-digit bar code of the device), and the SIM card number and place here for safe keeping before installing the device. IMEI number _ _ _ _ _ _ _ _ _ _ SIM number -------------------- Retailer...
