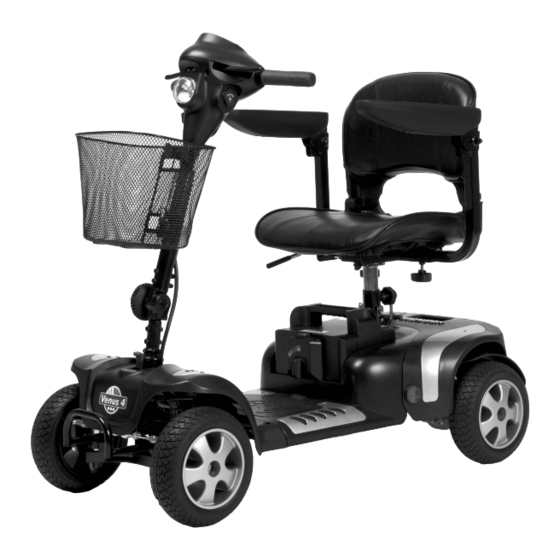

  • Page 1 V RM IR N Venus 4 Sport I N S T R U C T I O N...
  • Page 2 No part of this manual may be reproduced in any form what so ever (print, photocopy, microfilm or any other process) without written permission of the publisher, or processed, duplicated or distributed by using electronic systems. © N.V. Vermeiren N.V. 2015...

  • Page 3: Table Of Contents

    Venus 4 Sport 2015-08 Contents Product description ....................3       Intended Use ....................... 3     Safety instructions ...................... 4     Technical specifications ....................5     Accessories ......................... 6     Components ........................ 7    ...
  • Page 4 Following the user instructions and the maintenance instructions are an essential part of the warranty. This manual reflects the latest product developments. Vermeiren has the right to introduce changes without the obligation to adapt or replace previously delivered models. For any further questions, please consult your specialist dealer.

  • Page 5: Product Description

    The scooter can be used on sidewalks. Under no circumstances the scooter may be used for driving on larger roads or expressways. Use only Vermeiren approved accessories. The manufacturer is not liable for damage caused by the lack of or improper service or as a result of not following instructions from this manual.

  • Page 6: Safety Instructions

    Venus 4 Sport 2015-08 Safety instructions Use only Vermeiren approved accessories. Before getting on or off, taking apart or transporting your scooter, turn the start key to the “off” position. When transporting the scooter, no persons may be transferred along with it.

  • Page 7: Technical Specifications

    Venus 4 Sport 2015-08 Technical specifications Technical terms below are valid for the scooter in standard settings and optimum environmental conditions. If other accessories are used, the tabulated values will change. Changes in outdoor temperatures, humidity, uphills, downhills, soils and battery levels can reduce output.

  • Page 8: Accessories

    115 kg driver and a brand new fully recharged battery by a constant driving speed at 6 km/h with 70% battery power discharged. Table 1: Technical specifications Accessories The following accessories are available for the scooters Venus 4 Sport:  WARNING: Risk of injury - Be sure that crutches are attached very well and cannot fall on the user.

  • Page 9: Components

    Venus 4 Sport 2015-08 Components 1 = Backrest 2 = Armrest / Armpad 3 = Seat 4 = Rear frame 5 = Anti-tipping 6 = Rear wheels 7 = Battery housing 8 = Footplate 9 = Front wheel 10= Starknob angle...

  • Page 10: Explanation Of Symbols

    Venus 4 Sport 2015-08 Explanation of symbols Maximum mass Outdoor use Indoor use (only for battery charger) Separate recovery and recycling of electric and electronic devices (only for battery charger) Protection class II Maximum safe slope CE conformity Maximum speed...

  • Page 11: Carrying The Scooter

    Venus 4 Sport 2015-08 Interfering electromagnetic fields may have a negative effect on the scooter’s electronic systems. These can include:  Disengagement of the engine brake  Uncontrollable behavior by the scooter  Unintentional steering movements In the presence of very strong or enduring interfering fields, the electronic systems could even break down entirely or suffer permanent damage.

  • Page 12: Assembly And Disassembly Of The Scooter

    Venus 4 Sport 2015-08 If this is not possible or you are on your own, you can carry the scooter by following steps: 1. Switch the scooter off. 2. Remove loose parts (seat, battery housing, shopping basket). 3. Store loose parts in a safe place.

  • Page 13: Operating The Brakes

    Venus 4 Sport 2015-08 To reassemble, please proceed as follows:  Mount the front and rear frames in each other (see "Mounting or removing the rear and front frame" chapter).  Move the steering column upwards (see "Adjusting angle of the steering column" chapter).

  • Page 14: Parking The Scooter

    Venus 4 Sport 2015-08 2.7.2 Handling after usage Before getting off from your scooter, make sure that all four wheels touch the ground simultaneously. Next turn the key to the “OFF” (charge indicator goes out) to turn off the integrated light.
  • Page 15 Venus 4 Sport 2015-08 For corners and bends, use both hands to turn the handle bar in the direction you wish to take. The front wheels will turn accordingly and steer the scooter into a new direction. It is very important that you ensure that there is enough space allowing you to go around bends and corners.

  • Page 16: Driving The Scooter On Ramps

    Venus 4 Sport 2015-08 2.7.7 Going downhill WARNING: Control your scooter - Accustom yourself with the driving behavior of your scooter. WARNING: Control your scooter - Never put your scooter in neutral on slopes. WARNING: Control your speed - Moving on slopes as slow as possible.

  • Page 17: Driving The Scooter Over Steps

    Venus 4 Sport 2015-08 Driving the scooter over steps It is possible to drive with your scooter over steps from 50 mm. Please start from 500 mm to take this step. 500 mm 50 mm 2.10 Operator control  ...

  • Page 18: Neutral

    Venus 4 Sport 2015-08 Vermeiren is responsible for the changes in the software. For changes in the software contact Vermeiren. 2.11 Neutral WARNING: Control your scooter - Never put your scooter in neutral while you are driving. WARNING: Control your scooter - Never put your scooter in neutral on slopes. It may accidentally roll away.

  • Page 19: Transport In The Car

    Venus 4 Sport 2015-08 2.12 Transport in the car DANGER: Risk of injury - The scooter is not suited for use as a seat in a motor vehicle. WARNING: Risk of injury - Remove all loose parts prior to transportation.
  • Page 20 Venus 4 Sport 2015-08 Kindly also observe the accompanying operating instructions. Primary 230V ~ / 50-60 Hz / 270 W max. Secondary 24 V / 2A max. Max. battery cap. 20 Ah Charging Charge 80% cap. within 8 hrs Method 1: On board charging: 1 = Socket battery charger 1.

  • Page 21: Battery Indicator

    The instructions in this chapter are for the user and the specialist dealer. To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility. A list of Vermeiren facilities can be found on the last page.

  • Page 22: Mounting Or Removing The Rear And Front Frame

    Venus 4 Sport 2015-08 Mounting or removing the rear and front frame WARNING: Risk of injury - Be carefull that you do not pinch your fingers, hands between the frame. CAUTION: Risk of injury - Check that the front and rear frame is fixated properly.

  • Page 23: Mounting / Removing The Shopping Basket

    Venus 4 Sport 2015-08 Mounting / removing the shopping basket Mounting shopping basket: 1. Grasp the shopping basket. 2. Mount the shopping basket with the holes on the hooks of the attachment plate. 3. Check the shopping basket is mounted very well.

  • Page 24: Folding The Backrest

    Venus 4 Sport 2015-08 Seat height adjustment (Fig. B) The seat can be adjusted in 2 different seat heights (increments: 50 mm).  1. Remove the seat from the adjustment bar  2. Loosen the starknob a little bit. ...

  • Page 25: Adjusting The Armrests

    Venus 4 Sport 2015-08 Adjusting the armrests CAUTION: Risk of tipping over - Make sure that the armrests are positioned symmetrically from the seat. CAUTION: Risk of injury - Mount the inner tube always with of safe distance of 50 mm in the outer tube.

  • Page 26: Tyre Changing

    Venus 4 Sport 2015-08 3.10 Tyre changing CAUTION: There must be no air in the tube before it can be removed. CAUTION: Risk of damage - If handled improperly, the rim might be damaged. If you want to change the tyres or inner tubes, you should note the following: Before you can remove a tyre, you must let all the air out of the tube, and insert a tyre lever between the tyre and the rim.

  • Page 27: Thermal Fuses

    Venus 4 Sport 2015-08 3.11 Thermal fuses To protect the motor against overload, your scooter have a thermal safety mechanism  on the right side of the battery housing. The thermal fuse will automatically cut the motor to prevent overheating and thus rapid wear and tear or breakdowns.

  • Page 28: Changing The Batteries

    2. Turn the switch  to the lock symbol. 3. Check that the battery housing is firmly secured in the scooter, by lifting this gently upwards with the handgrip. Maintenance For the maintenance manual of the scooters refer to the Vermeiren website: www.vermeiren.be. Page 26 ...

  • Page 29: Declaration Of Conformity

    Venus 4 Sport 2015-08 Declaration of conformity Page 27 ...
  • Page 30 Dealer´s stamp: Dealer´s stamp: Date: Date: Dealer´s stamp: Dealer´s stamp: Date: Date: Dealer´s stamp: Dealer´s stamp: Date: Date:  For service checklists an additional technical information, please see our specialist dealers nearest to you. More information on our website at: www.vermeiren.com.
  • Page 32 Fax: +41(0)31 818 40 98 website: www.reatime.it website: www.vermeiren.ch e-mail: info@reatime.it e-mail: info@vermeiren.ch Poland Spain / Portugal Vermeiren Polska Sp. z o.o Vermeiren Iberica, S.L. Carratera de Cartellà, Km 0,5 Łączna PL-55-100 Trzebnica Sant Gregori Parc Industrial Edifici A Tel: +48(0)71 387 42 00...
