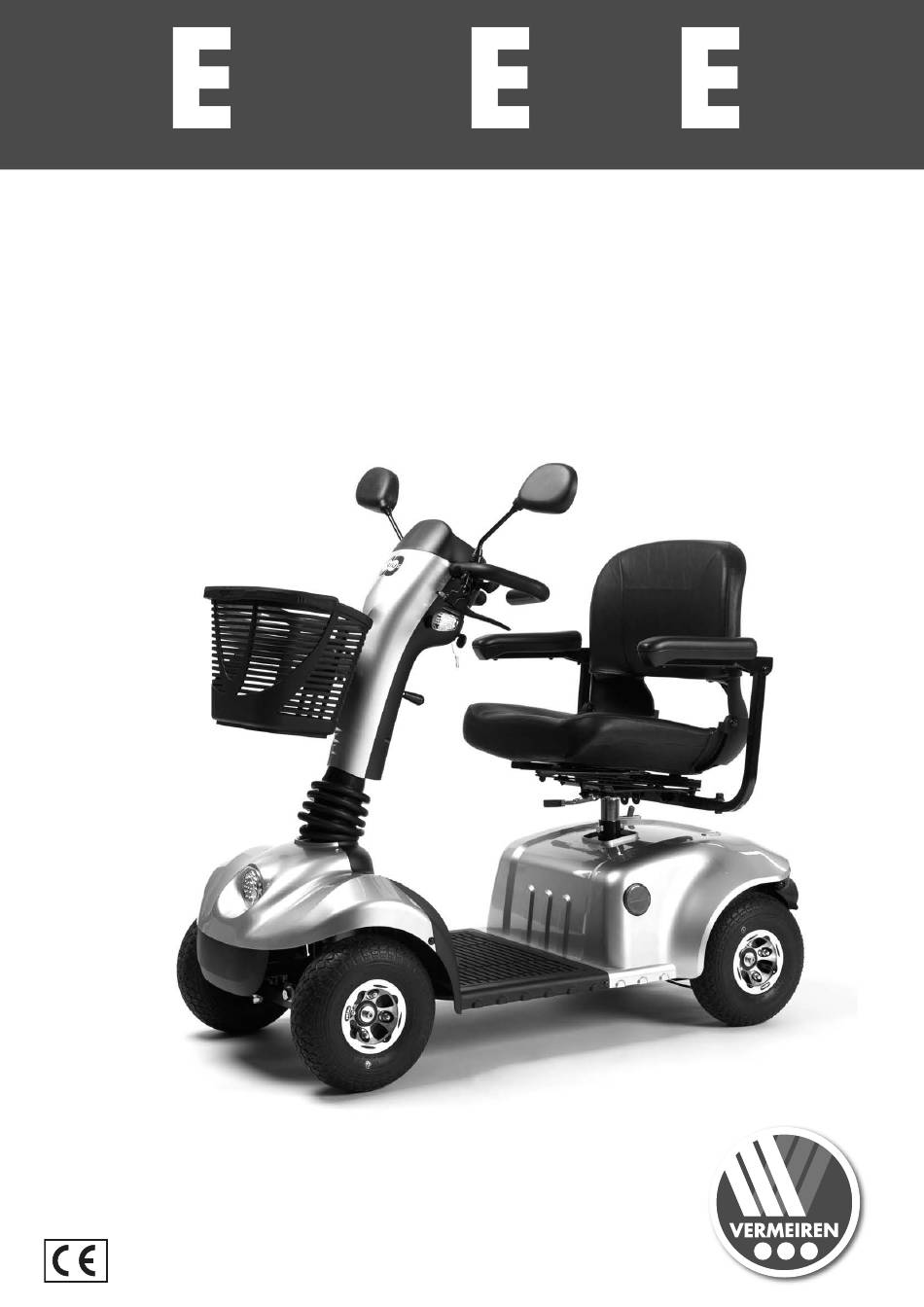

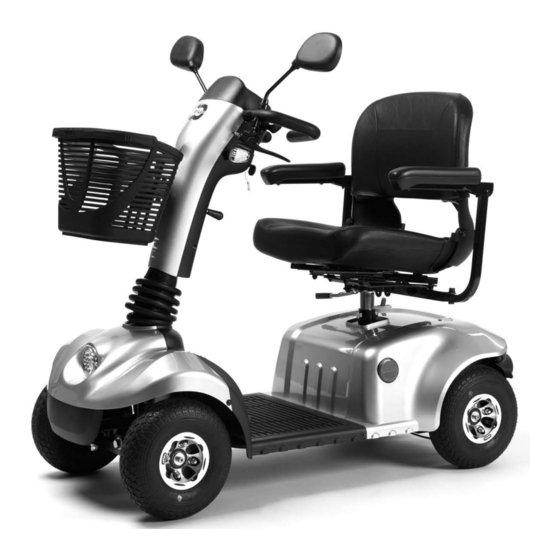

- Page 1 V RM IR N Eris I N S T R U C T I O N M A N U A L...
-
Page 3: Table Of Contents
Eris 2019-03 Contents Product description ..................3 Intended Use Safety instructions Technical specifications Accessories Components Location identification plate Explanation of symbols Expected lifespan Use ......................... 9 Remarks on electromagnetic compatibility (EMC) Carrying the scooter Assembly and disassembly of the scooter... - Page 4 For user and specialist dealer Instructions for mounting and demounting of optional parts For specialist dealer Service manual For specialist dealer Contact details To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility. Page 2...
-
Page 5: Product Description
The scooter can be used on sidewalks, urban road. Under no circumstances the scooter may be used for driving on larger roads or expressways. Use only Vermeiren approved accessories. The manufacturer is not liable for damage caused by the lack of or improper service or as a result of not following instructions from this manual. -
Page 6: Safety Instructions
Eris 2019-03 Safety instructions Use only Vermeiren approved accessories. Before getting on or off, taking apart or transporting your scooter, turn the start key to the “off” position. When transporting the scooter, no persons may be transferred along with it. -
Page 7: Technical Specifications
Eris 2019-03 Technical specifications Technical terms below are valid for the scooter in standard settings and optimum environmental conditions. If other accessories are used, the tabulated values will change. Changes in outdoor temperatures, humidity, uphills, downhills, soils and battery levels can reduce output. -
Page 8: Accessories
Maximum driving distance is tested according ISO 7176-4 under ideal circumstances. Table 1: Technical specifications Accessories The following accessories are available for the scooters Eris: WARNING: Risk of injury - Be sure that crutches are attached very well and cannot fall on the user. -
Page 9: Components
Eris 2019-03 Components 1 = Backrest 2 = Armrest / Armpad 3 = Seat 4 = Rear frame 5 = Rear light 6 = Rear wheels 7 = Side reflectors 8 = Footplate 9 = Front wheel 10= Head light... -
Page 10: Explanation Of Symbols
Eris 2019-03 Explanation of symbols Maximum mass Outdoor use Indoor use (only for battery charger) Separate recovery and recycling of electric and electronic devices (only for battery charger) Protection class II Maximum safe slope CE conformity Maximum speed Not intended to be used as a seat in a Motor vehicle... -
Page 11: Use
Eris 2019-03 This chapter describes the everyday use. These instructions are for the user and the specialist dealer. The scooter is delivered fully assembled by your specialist dealer. The instructions intended for the specialist dealer on how to set up the scooter are given in § 3. -
Page 12: Carrying The Scooter
Eris 2019-03 Other home devices like CD player, notebook, cordless phones, AM/FM radios, electric shavers and hair dryers, so far as we know, will have no influence provided that they function perfectly and their cabling be in an excellent condition. Please conform to the operating instructions accompanying such electric instruments to ensure trouble free operating of your scooter. -
Page 13: Operating The Brakes
Eris 2019-03 To reassemble, please proceed as follows: Move the steering unit upwards. Put the batteries back in and connect to the battery plugs (plugs of the same color go together). Use the straps to tighten the batteries in such a way that they will not move, even during drives. -
Page 14: Driving The Scooter
Eris 2019-03 Driving the scooter WARNING: Risk of burns – Be careful when driving in hot or cold environments (sunshine, extreme cold, saunas, etc.) for a sufficient amount of time and when touching - Surfaces can assume the environment temperatures. - Page 15 Eris 2019-03 PULL ACTION BY THE RIGHT HAND FORWARD MOVEMENT PULL ACTION BY THE LEFT HAND BACKWARD MOVEMENT While using your scooter indoor, do not put your scooter in the highest speed. Driving on the pavement Ensure the limit switch is set to the slowest setting when using the scooter on the pavement. The maximum speed to drive on the pavement depends from country to country.
-
Page 16: Driving The Scooter On Ramps
Eris 2019-03 Sitting position, going uphill Adjust your seat depth and backrest angle, in order to sit in most front position, see section §3.4 and §3.5 for adjustment. Always lean forward when climbing a steep gradient. Always approach slopes directly from the front and, to avoid tipping over, see that all four wheels stay in contact with the ground at all times (ramps, driveways, etc.). -
Page 17: Driving The Scooter Over Obstacles
3 = Head Lights 4 = Horn 5 = Indicator (left) 6 = Emergency lights 7 = Indicator (right) 8 = Battery level indicator Vermeiren is responsible for the changes in the software. For changes in the software contact Vermeiren. Page 15... -
Page 18: Neutral
Eris 2019-03 2.11 Neutral WARNING: Control your scooter - Never put your scooter in neutral while you are driving. WARNING: Control your scooter - Never put your scooter in neutral on slopes. It may accidentally roll away. WARNING: Risk of injury - Never pick up the electronic drive before stopping the motor/gears to prevent motor from overheating. -
Page 19: Automatic Power Shut Down
Eris 2019-03 2.12.2 By car DANGER: Risk of injury - The scooter is not suited for use as a seat in a motor vehicle as indicated by the symbol in the following picture. WARNING: Risk of injury - Remove all loose parts prior to transportation. - Page 20 Eris 2019-03 If your scooter is stored for a while, it is advised to charge the ba ttery regularly (approximately once a month). Do not interrupt the c harging cycle; wait till the charger indicates that the battery is fully charged, see the charger instruction manual.
-
Page 21: Installation And Adjustment
The instructions in this chapter are for the user and the specialist dealer. To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility. A list of Vermeiren facilities can be found on the last page. -
Page 22: Adjusting The Seat
Eris 2019-03 Adjusting the seat WARNING : Risk of injury - Never perform adjustments while you are driving. WARNING : Risk of injury - Make sure that the seat is locked securely. Remove seat (Fig. A) 1. Pull the seat lever upwards. -
Page 23: Folding The Backrest
Eris 2019-03 Seat height adjustment (Fig. B) Fig. B The seat can be adjusted in 3 different seat heights (increments: 25 mm). 1. Remove the seat and battery cover. . 2. Remove the bolt and nut 3. Move the adjustment bar ... -
Page 24: Adjusting The Rear View Mirrors
Eris 2019-03 Adjusting the rear view mirrors It is possible to adjust the rear view mirrors: Adjustment 1 (arrow A): 1. Grasp the rear view mirror 2. Rotate the rear view mirror in the desired position. Adjustment 2 (arrow B): ... -
Page 25: Thermal Fuses
Eris 2019-03 DISMANTLING 1. Unscrew and remove the middle screw that attach the wheel and flange to the scooter. 2. Let the air out of the wheel by lightly pressing the pressure pin on the valve 3. Unscrew the 4 screws on the inside of the rim. -
Page 26: Anti-Tipping
Eris 2019-03 3.10 Anti-tipping An anti-tipping is fixed to the frame of the scooter on the back side. It is not possible to remove this. The anti-tipping is there for your safety. It prevents the scooter from tipping over backward when you drive over small obstacles that do NOT exceed the maximum height specified. -
Page 27: Maintenance
Eris 2019-03 Maintenance For the maintenance manual of the scooters refer to the Vermeiren website: http://www.vermeiren.com/. CAUTION: Risk of injuries or damage Repairs and replacements may only be undertaken by trained persons and only genuine replacement parts of Vermeiren should be used. -
Page 28: End Of Use
Eris 2019-03 Wipe all rigid parts of the scooter with a damp cloth (not drenched). If necessary, use a mild soap, suitable for varnishes and synthetics. The upholstery can be cleaned with lukewarm water and a mild soap. Do not use abrasive cleaning agents to clean. - Page 29 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
- Page 32 No part of this manual may be reproduced in any form what so ever (print, photocopy, microfilm or any other process) without written permission of the publisher, or processed, duplicated or distributed by using electronic systems. © Vermeiren Group 2019...
