  • Page 1 VERMEIREN Mercurius 4D INSTALLATION MANUAL...
  • Page 3: Table Of Contents

    Mercurius 4D 2021-02 Content Content Content ........................1 Preface........................2 This product ....................3 Scope of delivery ..................4 Assembly and adjustments ................. 5 Tools ....................... 5 Adjusting the scooter to the user ..............6 Changing the batteries ..................6 Tyre changing ....................
  • Page 4: Preface

    To support you on the installation and repairs of this scooter, we provide you with this installation manual. Please read it carefully. If you still have questions after reading this manual, do not hesitate to contact Vermeiren. Important note Pictures of the product are used to clarify the instructions. Details of the shown product may deviate from your product.
  • Page 5: This Product

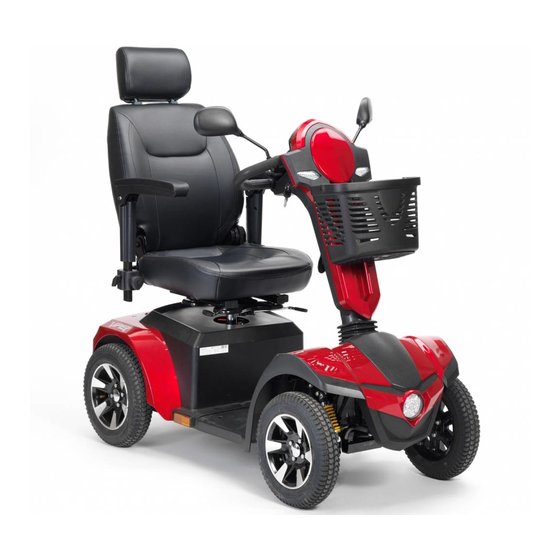

    Mercurius 4D 2021-02 This product This product 1. Headrest 2. Backrest 3. Armrest / Armpad 4. Seat 5. Rear wheel 6. Footplate 7. Front wheel 8. Front light 9. Indicator lights 10. Rearview mirror 11. Speed lever 12. Handgrips 13. Basket 14.
  • Page 6: Scope Of Delivery

    Mercurius 4D 2021-02 Scope of delivery Scope of delivery The following items are part of the delivery: • Frame with armrests, steering unit, rear and front wheels • Footplate • Seat + backrest • Batteries (2x), motor • Basket • Accessories •...
  • Page 7: Assembly And Adjustments

    • Read the user manual of this scooter. • Be aware of the technical details and limits of intended use; see the user manual. • For more information, contact Vermeiren. Tools To set up the scooter, the following tools are needed: •...
  • Page 8: Adjusting The Scooter To The User

    Mercurius 4D 2021-02 Assembly and adjustments Adjusting the scooter to the user 3.2.1 Seat height adjustment The seat can be adjusted in 2 different seat heights (distance: 25 mm). 1. Remove the seat. 2. Remove the bolt (3) and nut (5).
  • Page 9: Tyre Changing

    Mercurius 4D 2021-02 Assembly and adjustments To disassemble: • Switch the scooter off. • Remove the seat (see user manual). • Lift off the rear plastic cover of the batteries. • Loosen the straps used to keep the batteries in place.
  • Page 12 No part of this manual may be reproduced in any form what so ever (print, photocopy, microfilm or any other process) without written permission of the publisher, or processed, duplicated or distributed by using electronic systems. © Vermeiren Group 2021...
