Vermeiren Sedna Instruction Manual

Up to 6km/h
Hide thumbs Also See for Sedna:
Table of Contents

Advertisement

Quick Links

V RM IR N
Sedna
I N S T R U C T I O N M
N U
L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sedna and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vermeiren Sedna

Summary of Contents for Vermeiren Sedna

  • Page 1 V RM IR N Sedna I N S T R U C T I O N M...
  • Page 2 Version: A, 2017-12 systems. © Vermeiren Group, 2017 Tous droits réservés, y compris la traduction. Instructions pour les distributeurs Aucune partie de ce manuel ne peut être reproduite, Ce manuel d'instructions fait partie du sous quelque forme que ce soit (imprimée, photocopie,...

  • Page 3: Table Of Contents

    Sedna 2017-12 Contents Contents Preface........................2 Your product ....................3 Description ...................... 3 Optional parts ....................5 Expected lifespan .................... 5 Declaration of conformity ................5 Before use ..................... 6 Intended use ....................6 General safety instructions ................6 Symbols on the scooter .................. 7 Transport, folding and storing .................

  • Page 4: Preface

    Vermeiren. Thanks for your trust in the products of Vermeiren. To support you on the use of this scooter and its operating options, this manual is offered. Please read it carefully; it will help you to get familiar with the operation, capabilities and limitations of your scooter.

  • Page 5: Your Product

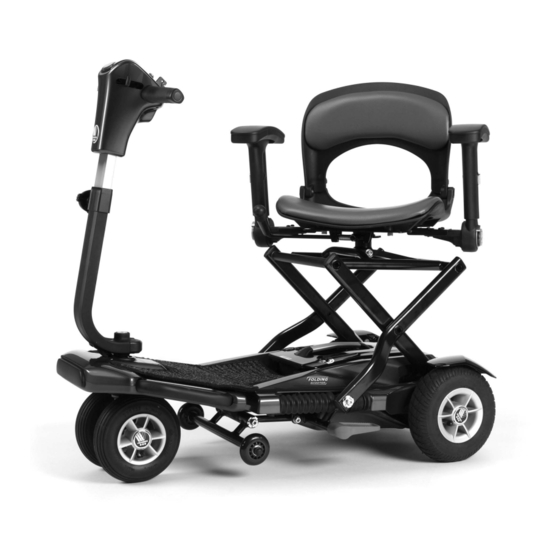

    Your product Description This Sedna scooter is easy-operatable scooter to be use indoors as well as outdoors. It is foldable which makes it very compact to store. Next picture shows all parts that are relevant for the user/driver. In the operation and maintenance section, these parts are described if applicable.
  • Page 6 Sedna 2017-12 Your product 14. Free-wheel lever 15. Frame tube 16. Anti-tipping wheels 17. Battery 18. Reflector Parts on the back Height adjustment 11. Hand grip 20. ON/OFF switch 21. Error indicator 22. Signal push button 23. Operating-lever left (drive backward) 24.

  • Page 7: Optional Parts

    Sedna 2017-12 Your product Battery and location of identification plate 30. Battery housing 31. Location of identification plate 32. Battery, mounted 33. Warning label Important notice on battery: WARNING To maximize the lifespan of batteries, they need to be FULLY charged before using your scooter.

  • Page 8: Before Use

    115kg. It is not designed for transport of goods or objects, or for any other use than the transport previously described. • If applicable, use only accessories and spare parts approved by Vermeiren. • You should NOT use this scooter if you suffer from physical or mental impairments that may put you, or other people, in danger when driving the scooter.

  • Page 9: Symbols On The Scooter

    Sedna 2017-12 Before use Symbols on the scooter The symbols in following list are applicable for your scooter. Missing symbols can be found in the relevant ISO standard (ISO 7000, ISO 7001 and IEC 417). Maximum weight of the user...

  • Page 10: Transport, Folding And Storing

    Sedna 2017-12 Before use Transport, folding and storing Risk of severe injuries WARNING Do NOT use your scooter as seat in a vehicle, see next symbol. The best way to transport your scooter is to fold and lift it (with help) in the vehicle.
  • Page 11 Sedna 2017-12 Before use 2.4.1 Unfolding scooter and connecting drive Lower the back of the scooter by holding Push red lever (5) down with your foot to frame tube (15) and turn it down till the release the lock of tiller (8); with an audible scooter lands on rear wheels (4).
  • Page 12 Sedna 2017-12 Before use Put free-wheel lever (14) in coupled position (B), pointing to the rear of the scooter. Your scooter is now ready to be used. 2.4.2 Folding Turn you scooter OFF and remove the key Put free-wheel lever (14) in free-wheel from ON/OFF switch (20).
  • Page 13 Sedna 2017-12 Before use Push with your foot the red lever (5) down to Fold backrest (1) against the seat. unlock; a click should be heard. Next turn tiller (8) towards the seat. If tiller (8) lies on the seat, push it gently Lift the rear end of the scooter by the frame down till it is locked;...

  • Page 14: Using Your Scooter

    Sedna 2017-12 Using your scooter Using your scooter Risk of injuries WARNING First read previous chapters and inform yourself about the intended use. Do NOT use your scooter unless you have read and fully understood all instructions. In case of doubts or questions, do not hesitate to contact your local specialist dealer, your care provider or technical adviser to help you on this.
  • Page 15 Sedna 2017-12 Using your scooter 3.1.3 Armrests (if applied) Your scooter may be delivered with next parts. 34. Armrest (2x) 35. Height adjustment armrest 36. Rotatable seat 37. Operating lever to turn the seat 38. Position adjustment armrest Rotatable seat and armrests Your specialist dealer installs the armrests according to a standard width.

  • Page 16: Switching On And Off

    Sedna 2017-12 Using your scooter Switching on and off The way the scooter is switched on and off is described in next points. The numbers in parenthesis can be found in Figure 3. Switching ON with ON/OFF Put the key in switch (27) and turn it clockwise (ON).

  • Page 17: Driving

    Sedna 2017-12 Using your scooter Risk of injuries CAUTION Only operate the free-wheel lever when your scooter is turned OFF! An attendant should operate the free-wheel lever if you have impaired mobility. NEVER operate it from sitting position. Make sure that the free-wheel lever is in its rear position BEFORE switching the scooter ON.

  • Page 18: Battery Status, Status Indication And Charging

    Sedna 2017-12 Using your scooter Battery status, status indication and charging 3.5.1 Battery status and status indication The indicator lights of the status indication and battery status will go on as soon as the scooter is switched on, see next figure.
  • Page 19 Sedna 2017-12 Using your scooter Risk of injuries CAUTION The batteries will last shorter or longer depending on the use, terrain and driving conditions. Do NOT drive outdoors when your battery is not fully charged. Be aware of the action radius of the battery, see chapter 6.
  • Page 20 Sedna 2017-12 Using your scooter Risk of damage CAUTION Protect your battery from large sources of electromagnetic radiation. In case of any problems, read the instructions of the battery charger or contact your specialist dealer. Follow next instructions for charging: 1.

  • Page 21: First Ride

    Sedna 2017-12 Using your scooter First ride Make sure you are familiar with the operation of your scooter before using it on crowded and possible dangerous places. First exercise at a specious, open area with little bystanders. Make sure that: the scooter is on a flat surface with all wheels touching the ground;...
  • Page 22 Sedna 2017-12 Using your scooter WARNING Risk of injuries by unexpected movement • Make sure that your scooter is switched OFF when getting on and off. • Keep your tires at the right tire pressure for an optimal driving performance and to decrease the risk of tipping over on uneven surfaces, see chapter 4.1.

  • Page 23: Maintenance

    Sedna 2017-12 Maintenance Maintenance Your scooter requires minimum maintenance, but it is advisable to inspect the scooter regularly in order to drive trouble-free for years. Points of maintenance The last page of this manual contains a registration form for the specialist dealer to record each service.

  • Page 24: End Of Use

    Sedna 2017-12 Maintenance 4.2.2 Cleaning Risk of damage by moisture CAUTION • Keep the operating console clean and protect it from water and rain. • Never use a hose or high-pressure cleaner to clean the scooter. Wipe all rigid parts of the scooter with a damp cloth (not drenched). If necessary, use a mild soap, suitable for varnishes and synthetics.

  • Page 25: Troubleshooting

    Sedna 2017-12 Troubleshooting Troubleshooting Even if you use your scooter properly a technical problem may occur despite this. In this case, contact your local specialist dealer. WARNING Risk of injuries and damage to the scooter • NEVER repair your scooter yourself attempting to solve the problem.
  • Page 26 Sedna 2017-12 Troubleshooting Code Problem Meaning Maximum current rating of motor has been exceeded for too long. • because the scooter has stalled. Switch the scooter off. Wait a few minutes and switch it back on. Current limit • caused by a motor fault. Check motor, its associated been reached connections and wiring.

  • Page 27: Technical Specifications

    Sedna 2017-12 Technical specifications Technical specifications The technical details below are only valid for this scooter, at standard settings and optimal ambient conditions. Take these details into account during use. The values are no longer applicable if your scooter has been modified, damaged or suffers from severe wear.
  • Page 28 Sedna 2017-12 Technical specifications Description Dimensions Backrest height 330 mm / 360 mm Horizontal position of axle 50 mm Motor Nom. 270 Watt, electromagnetic brake Battery 1x Li-battery 24V DC – 11,5 Ah – 276 Wh Controller Dynamic controller, R-series...
  • Page 29 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
  • Page 30 Poland Spain / Portugal Vermeiren Polska Sp. z o.o. Vermeiren Iberica, S.L. ul. Łączna 1 Carratera de Cartellà, Km 0,5 PL-55-100 Trzebnica Sant Gregori Parc Industrial Edifici A 17150 Sant Gregori (Girona) phone: +48(0)71 387 42 00...
