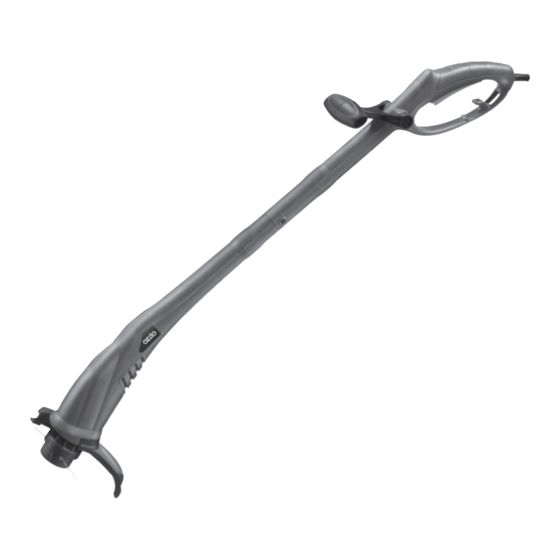

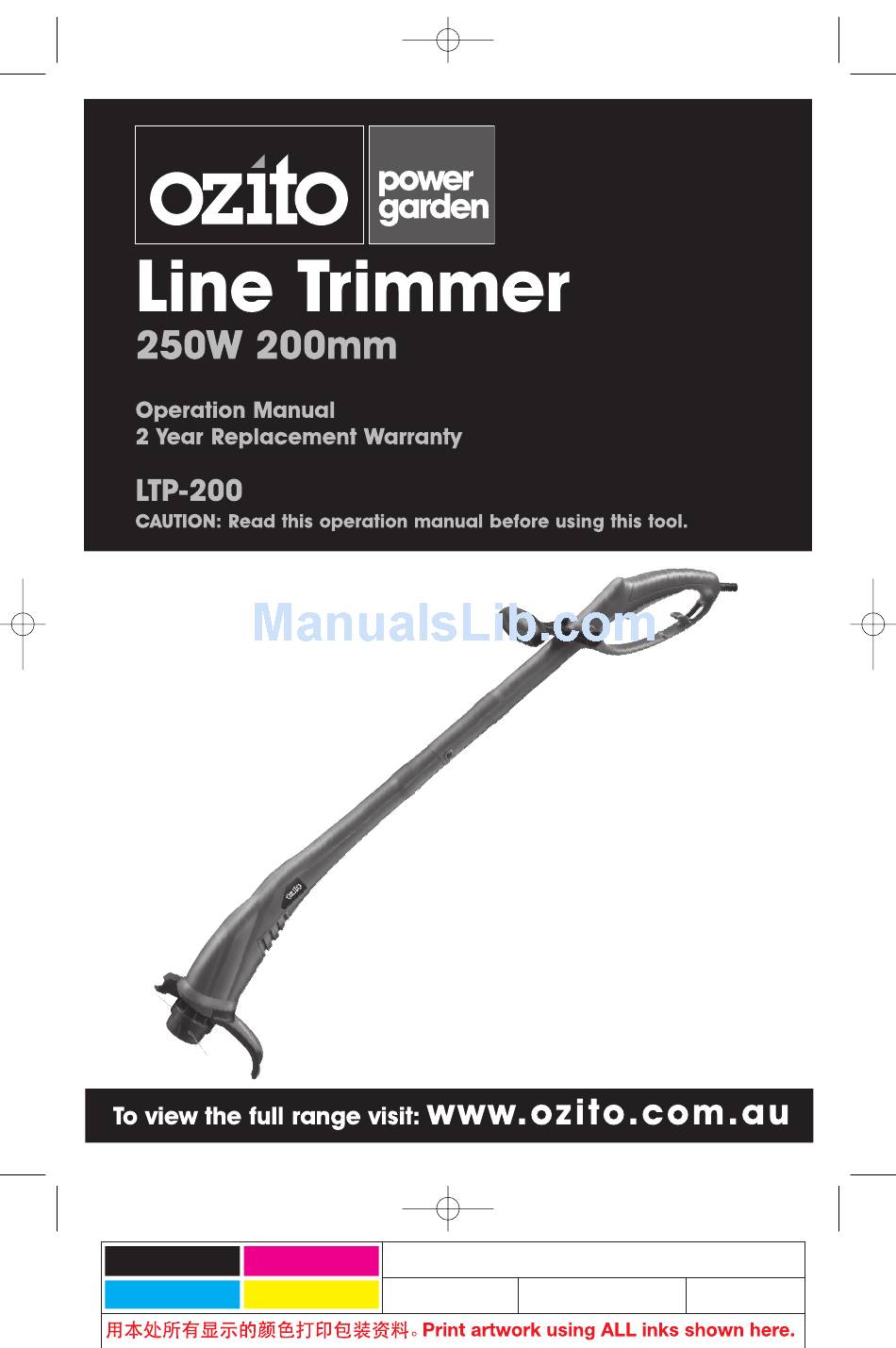

- Page 1 LTP-200 Manual.qxd 9/11/09 Page 1 0809 Black Magenta Code: LTP-200 Cyan Yellow Date: 11/09/09 Edition: 09 Op: Even...
-
Page 2: Specifications
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 2 SPECIFICATIONS - MODEL NO. LTP-200 Motor: 250W Input: 230-240V ~ 50Hz No load speed: 14,000/min Cutting diameter: 200mm Line diameter: 1.2mm Feed type: Bump Weight (tool only): 1.2kg 1. Main Handle 7. Handle Locking Bolt 2. -
Page 3: Table Of Contents
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 3 TABLE OF CONTENTS SPECIFICATIONS ………………………………………… Page 1 INTRODUCTION………………………………………... Page 3 SAFETY INSTRUCTIONS……………………………….. Page 3 ASSEMBLY……………………………………………….. Page 7 OPERATION …………………………………………….. Page 8 MAINTENANCE …………….………………………….. Page 11 CONTENTS ……………………………………………... Page 13 WARRANTY……………………………………………… Page 15... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Rules
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 5 GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 6 LTP-200 Manual.qxd 9/11/09 5:16 PM Page 6 GENERAL SAFETY RULES (cont.) e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
- Page 7 LTP-200 Manual.qxd 9/11/09 5:16 PM Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR LINE TRIMMERS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 8: Assembly
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 8 ASSEMBLY Warning! Before assembly, make sure that the tool is switched off and unplugged. Installing the upper handle assembly (4) on the lower housing (5) Remove the locking bolt (6) from the upper handle assembly (4). -
Page 9: Operation
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 9 OPERATION Before starting Before use, check that the tool is in good working order and that the length of the trimmer line is correct, as follows: 1. Ensure the switch is in the off position and disconnect the cable plug from the mains supply. - Page 10 LTP-200 Manual.qxd 9/11/09 5:16 PM Page 10 OPERATION (cont.) Trimming Warning! Make sure that the work area is free of rocks, debris, lines and other foreign objects. 1. Start the trimmer before approaching the grass to be cut. 2. After each bump the bump line feed mechanism releases 2mm of cutting line from each side of the spool.
- Page 11 LTP-200 Manual.qxd 9/11/09 5:16 PM Page 11 OPERATION (cont.) Fitting a new pre-wound spool 1. Thread the ends of the line on the new spool through the eyelets in the spool cover (Fig. 8). Fig. 8 2. Holding the line trimmer upside down fit the...
-
Page 12: Maintenance
• No lubrication is required as bearings are sealed. • Store in a cool, dry place after use Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 13: Description Of Symbols
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 13 DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute Double insulated Regulator compliance mark ø Diameter Warning Read operator’s manual Wear eye protection Do not operate in the rain... -
Page 14: Contents
1 x Phillips Head Screw (for safety guard) 1 x Secondary Handle 1 x Operation Manual 1 x Bolt & Nut (for secondary handle) OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au... -
Page 15: Warranty
PURCHASED FROM:__________________________________________________ DATE PURCHASED: __________________________________________________ 2 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 24 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
