Ozito LHT-018 Instruction Manual

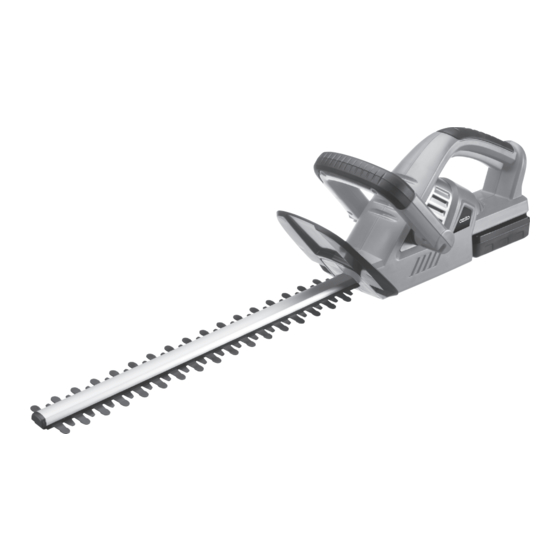

Lithium ion cordless hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LHT-018 and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito LHT-018

Summary of Contents for Ozito LHT-018

  • Page 2: Specifications

    SPECIFICATIONS - MODEL NO. LHT-018 Battery power: Charge time: 2 hours Strokes per minutes: 2600 SPM Length of blade: 400mm Cutting capacity: 15mm Batteries: 1 x 1300mAh Lithium Ion Weight with 1 battery: 2.5kg WARNING! The noise level of this machine can exceed 85dB(A).

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 2 INTRODUCTION………………………………………… Page 4 ELECTRICAL SAFETY…………….……………………… Page 4 GENERAL POWER TOOL SAFETY WARNINGS……… Page 5 LITHIUM ION BATTERY AND CHARGER SAFETY WARNINGS…………….……………………… Page 7 ADDITIONAL SAFETY RULES FOR HEDGE TRIMMERS… Page 8 CHARGING YOUR LITHIUM ION BATTERY..………… Page 9 INSTALLING OR REMOVING THE BATTERY...………...

  • Page 4: Introduction

    We hope you will enjoy using this tool for many years. Your Lithium Ion Cordless Hedge Trimmer LHT-018 has been designed for trimming light foliage. Being cordless, it offers maximum convenience of operation without the need for a connection to the mains power.

  • Page 5: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

  • Page 7: Lithium Ion Battery And Charger Safety Warnings

    LITHIUM ION BATTERY AND CHARGER SAFETY WARNINGS WARNING! Do not allow any liquid to get inside charger. Electric shock may result. To facilitate cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.

  • Page 8: Additional Safety Rules For Hedge Trimmers

    ADDITIONAL SAFETY RULES FOR HEDGE TRIMMERS • This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that hey can use the appliance safely. • Young children should be supervised to ensure that they do not play with the appliance.

  • Page 9: Charging Your Lithium Ion Battery

    CHARGING YOUR LITHIUM ION BATTERY The battery (9) has been shipped in a low charge condition, and require charging prior to use. • Plug the charger adaptor (10) into a mains power outlet. • The green light on the charger adaptor (10) will illuminate showing that power is being supplied to the charger adaptor (10).
  • Page 10 CHARGING YOUR LITHIUM ION BATTERY (cont.) Subsequent charges • After normal usage, approximately 2 hours of charging time is required to fully recharge the battery (9). • If the battery (9) is completely discharged, 5 hours or longer of charging time will be required to fully recharge it.

  • Page 11: Installing Or Removing The Battery

    INSTALLING OR REMOVING THE BATTERY Always switch off the tool before insertion or removal of the battery. Installing the battery • Align the notches in the base of the hedge trimmer rear handle (3) with those of the battery (9) and slide the battery (9) and hedge trimmer together until the battery (9) locks into place (see Fig.

  • Page 12: Operation

    OPERATION Switching on For your safety this Hedge Trimmer is designed with a two hand safety switch. To turn the Hedge Trimmer on both the rear handle on/off switch (2) and front handle on/off switch (5) are required to be activated to start the hedge trimmer (See Fig.

  • Page 13: Maintenance

    Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the tool by an unauthorised person or by mishandling of the tool.

  • Page 14: Spare Parts

    SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part Part No. Battery (18V Lithium Ion) ACCLB-018 Charger assembly ACCLCA-018 DESCRIPTION OF SYMBOLS Volts...

  • Page 15: Pack Contents

    1 x Battery (18V Lithium Ion) 1 x Charging adaptor & connector 1 x Blade cover 1 x Instruction manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...

  • Page 16: Warranty

    PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 2 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 24 months from the ORIGINAL date of purchase under the following conditions: Professional, industrial or high frequency use will VOID this warranty.
