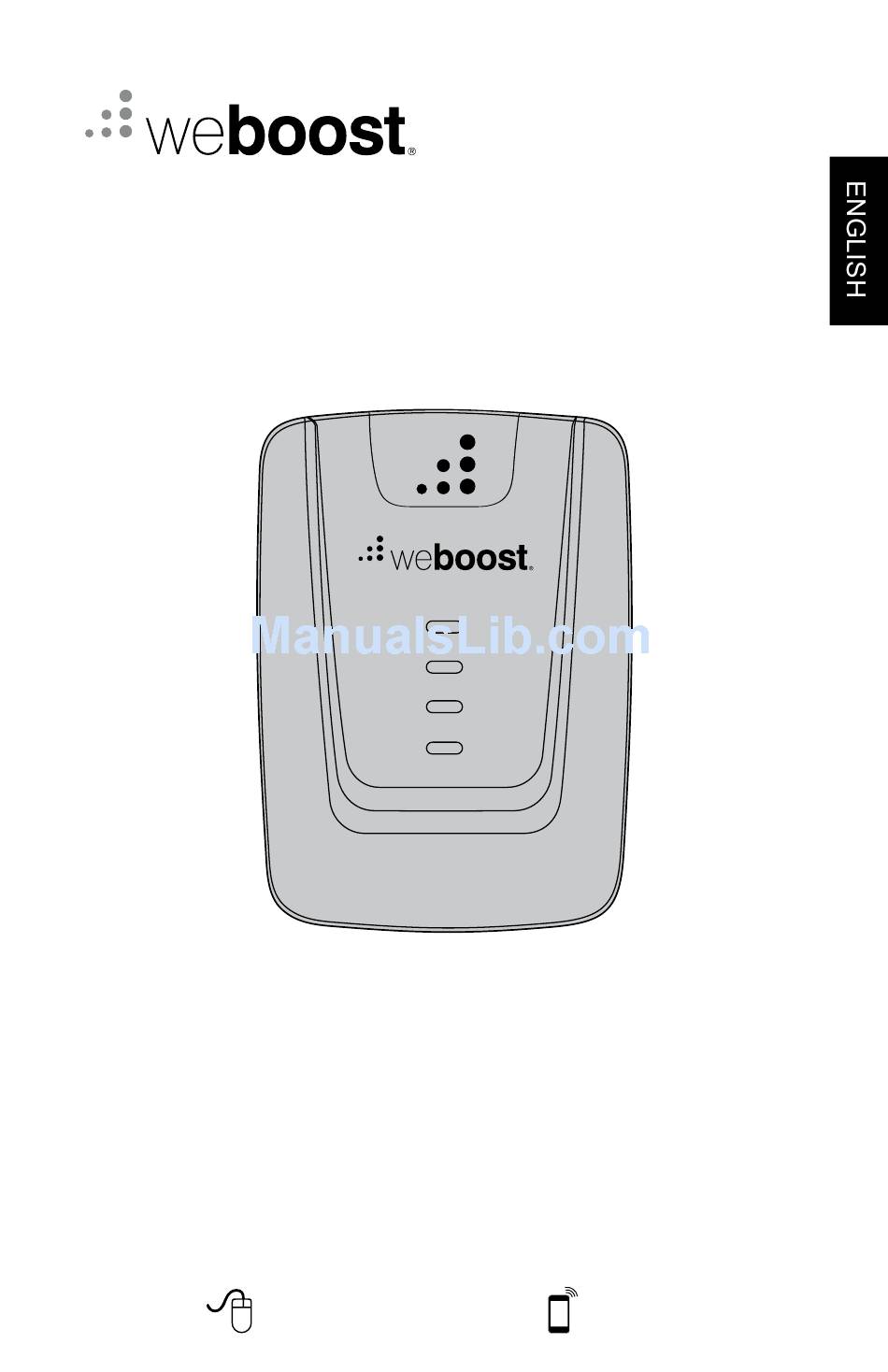

- Page 1 Connect 4G ™ Cellular Signal Booster Need help? https://cellphonesignalbooster.us Customer Support 800-501-3153 Mon.- Fri. Hours: 7 am to 6 pm MST...
-
Page 2: Table Of Contents
FAILURE TO DO THIS WILL VOID YOUR WARRANTY IN THE EVENT OF A POWER SURGE OR LIGHTNING STRIKE. Installation Instructions for the Following weBoost Signal Booster: Connect 4G™ Adjustable Gain 700 (Band 17,13) / 800 / 1900 (Band 25, Ext. PCS) / AWS (1700 / 2100) MHz Smart Tech ™... -
Page 3: Package Contents
Package Contents Connect 4G™ AC Power Supply Outside Antenna Kit Panel Antenna Kit 5V / 2.5A 75 Ohm Wide Band Antenna Inside Panel Antenna 30’ RG6 coax cable 30’ RG6 coax cable (Not included with some models) (314475-0630) (311155-0630) (859948) Appearance of device and accessories may vary. -
Page 4: Installation Details
Acceptable method: Check the bar the bar indicator. Go to: https://cellphonesignalbooster.us indicator on your cell phone display and note where the signal appears for your phone. the strongest. (Note: cell phone bars are only an approximation of signal b. The person on the roof should turn strength and vary from phone to the Outside Antenna 45 degrees phone.) Phones can take up to 30... -
Page 5: Quick Install
Be sure the Inside Antenna is NOT Run the coax cable from the Outside facing toward the Outside Antenna. Antenna to the Signal Booster and This creates potential oscillation attach it to the connector labeled or feedback and reduces the “Outside Antenna.”... -
Page 6: Signal Booster Installation
Inside Antennas. These can attach to the Signal Boost by using a splitter (sold separately). Contact weBoost for more information. Ensure a minimum of 20 feet vertical The lights on the Signal Booster or 50 horizontal feet separation from should remain green . -
Page 7: Troubleshooting & Understanding Lights
The Signal Boost includes four indicator indicating reduced gain, contact the lights, one for each band (see FAQ for weBoost Customer Support Team for explanation of MHz bands). Each indicator assistance: 800-501-3153. light will either be green, orange or red. -
Page 8: Additional Faq
Additional FAQ: Inside Antenna Expansion Kit What hours can I contact customer support? Kit 309900-50N • 2 - Wall Panel antennas Customer Support can be reached from • 1 - 50 ohm 3-Way Splitter 7:00am to 6:00pm MST, by calling (800- Kit 309905-50N 501-3153), or by email, at •... - Page 9 Kit 301111-11140 Kit 311203-5820 • Omni-Directional antenna • Yagi Directional Antenna • 20’ RG58 Cable • 140’ RG11 Cable • N-Male to F-Female adapter Kit 311124-5830 • 1900 MHz Yagi antenna Kit 311201-1120 • 30’ RG58 Cable • Omni Directional w/ F-Female •...
-
Page 10: Safety Guidelines & Recommendations
Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone. WARNING: Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). -
Page 11: Signal Booster Specifications
Signal Booster Specifications Connect 4G ™ Model Number 470003 Connectors F-Female Antenna Impedance 50 Ohms Frequency 704-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz 700 MHz 700 MHz 800 MHz 1700/2100 MHz 1900 MHz Passband Gain (nominal) Band17 Band13 Band 5 Band 4... - Page 12 Returned Material Authorization (RMA) number supplied by weBoost. weBoost shall, at its option, either repair or replace the product. weBoost will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S.
