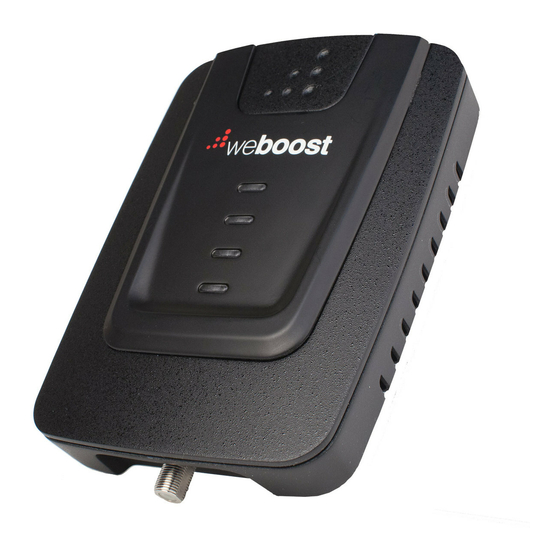

weBoost Connect 4G Quick Start Manual

Connect 4G
SKU: 470103 MAP: $549.99

FEATURES

• Boosts 4G LTE & 3G signals for entire home or small office
• Coverage area up to 5,000 sq. ft.
• For multiple devices and users
• Works on ALL cellular devices with ALL carriers simultaneously
• Enhances talk, text, and high-speed 4G LTE internet
†
WARNING: This product can expose you to chemicals including Nickel, which
!
is known to the State of California to cause cancer, and Bisphenol A, which is
known to the State of California to cause birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov

About

The Connect 4G allows users to get better voice and data
signal with fewer dropped calls, improved voice quality,
faster uploads and downloads. Our 4G signal booster in-
creases cell signals up to 32x and enhances 4G LTE and 3G
signals for buildings up to 5,000 sq ft. Compatible with all
US networks, it works on Verizon, AT&T, Sprint, T-Mobile, US
Cellular, Straight Talk and more.
Installation guide available for download and all parts are
included in the kit with trained support staff on call to assist.
All boosters come with a 2-year warranty.

Coverage Area

IF YOUR OUTSIDE SIGNAL IS
-89 AND LOWER
About 5 bars
-90 dB
About 3 to 4 bars
-100 dB
About 1 to 2 bars
No existing
YOUR BOOSTED SIGNAL MAY BE
UP TO 5,000 sq. ft.
UP TO 3,500 sq. ft.
UP TO 1,000 sq. ft.
A signal booster likely
will not work

Kit Includes

Connect 4G Outside Directional
Antenna
(314475)
Power Supply (x2) 15' & (x1) 30' White
(850012) Low Loss RG6 (75 Ohm)
Coax Cable
(950615-950630)

Specifications

MODEL NUMBER 470103†
FREQUENCIES Band 12/17
Band 13
Band 5
Band 4
Band 2
MAX GAIN 65 dB
IMPEDANCE 75 Ohm
POWER 110-240 V AC, 50-60 Hz, 8 W
CONNECTORS F-Female
BOOSTER DIMENSIONS 6.5 x 4.25 x 1.25 in
BOOSTER WEIGHT
0.445 lbs
FASTEST
NETWORK
SPEEDS
UP TO 5,000 sq. ft.
COVERAGE
UP TO
+65 dB GAIN
MULTI-USER
WIRELESS
BOOSTER
Inside Panel Antenna
(311155)
Flat Window
Cable
(951177)
700 MHz
700 MHz
850 MHz
1700/2100 MHz
1900 MHz
