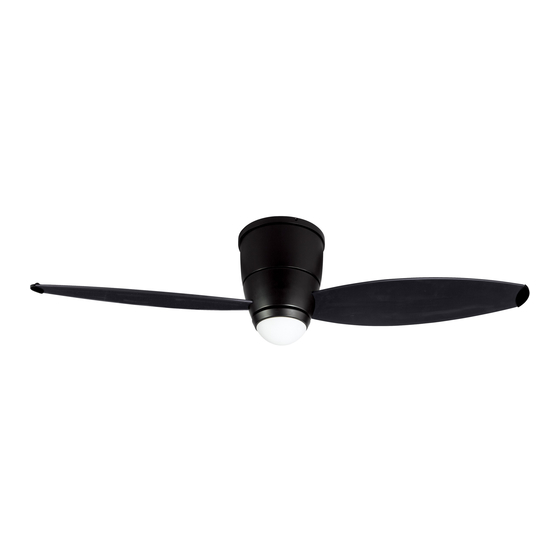

- Page 1 Style that revolves around you. ’ • • eiling wner anual •D • euCe ugger 10/09 WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout.
- Page 2 & O eneral nstallatiOn peratiOn nstruCtiOns mportant afeguardS 1. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning. 2. To avoid possible electrical shock, be sure electricity is turned off at the main power box before wiring. All electrical connections must be made in accordance with local codes, ordinances and/or the National Electric Code.
- Page 3 MpOrtant aFety reCautiOns Thank you for choosing a Regency Ceiling Fan. You have chosen the best! Your new ceiling fan has been designed to provide many years of service and enjoyment. Warnings: • Disconnect power by removing fuse or turning off circuit breaker before installing the fan.
- Page 5 reparatiOn Blade Housing Light / Cover Blade Tip reparatIon Verify that you have all parts before beginning the installation. Check foam insert closely for missing parts. Remove motor from packing. To avoid damage to finish, assemble motor on soft padded surface or use the original foam inset in motor box. Do not lay fan on its side as this could result in shifting of motor in decorative enclosure.
- Page 6 nstalling tHe WARNING: Mtg. Plate To avoid damaging the blades, do not install them onto fan until fan is fastened to ceiling. Tether Hole 1. Carefully support the fan body (motor) in its styrofoam packing with the top (where the wires come out) facing upward.
-
Page 7: Electrical Connections
leCtriCal OnneCtiOns Be sure electricity is turned off at the main power box before wiring lectrIcal onnectIonS Wire Connections: Four wires are connected to the fan. Black – this is the “hot” power to run fan. White – this is the “common” power to run fan and light. Blue –... -
Page 8: B Lade A Ttachment
laDe ttaCHMent lade ttachment 1. Place fiber washer on screw. Insert this assembly through the blade and start the screw into the blade tip. Repeat this procedure without tightening the screw until all 3 screws have been started into the blade tip (Fig. 1). 2. - Page 9 NOTE: If using fan with solid light kit cap cover, do not install bulbs, just install a cap instead(Fig.4)
-
Page 10: Remote Control
eMOte OntrOl eneral nformatIon NOTE: For use with a standard remote control. Multiple code choices are included with your fan’s remote control in case: • you have more than one remote control fan and want them to respond only to their own remote control •... -
Page 11: Operation
peratiOn peratIng ButtonS on the ranSmItter HI – fan high speed MED – fan medium speed LOW – fan low speed FAN/OFF – fan speed off LIGHT – light brightness and off function for uplight FOR/REV – forward and reverse WARM MONTHS Forward (counterclockwise) •... -
Page 12: Care And Cleaning
NOTE: When dusting the blades, you must support the blade to prevent bending - no pressure should be applied to the blades. Hank yOu FOr purCHasing a egenCy eiling Write to us at: Regency Ceiling Fans P.O. Box 730 Fenton, MO 63026 For additional troubleshooting tips, visit us on the Web at: www.regencyfans.com 10/09 Regency Ceiling Fans...
