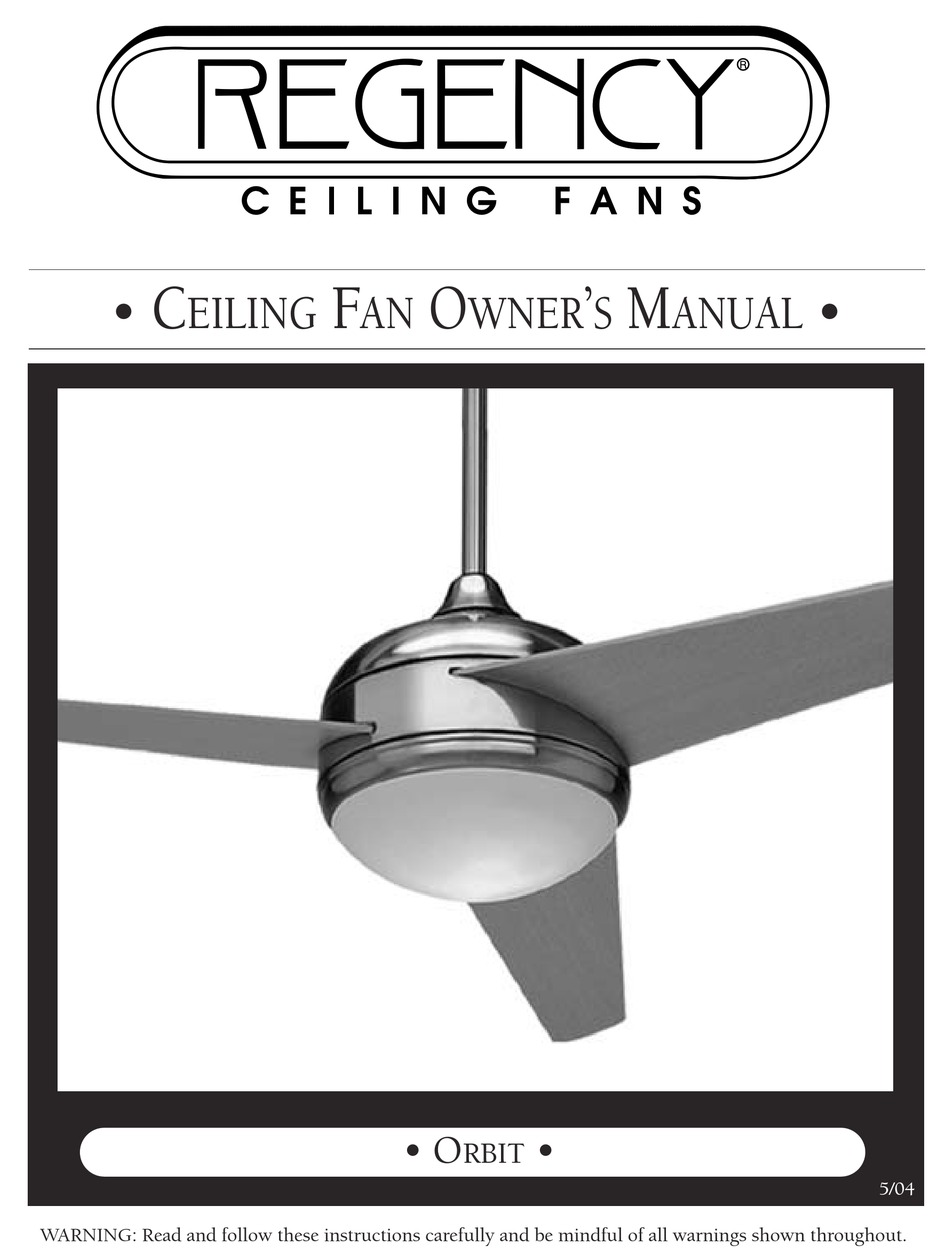

- Page 1 ’ • • EILING WNER ANUAL • E • • O • NVOY RBIT 5/04 WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout.
- Page 2 & O ENERAL NSTALLATION PERATION NSTRUCTIONS MPORTANT AFEGUARDS 1. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning. 2. To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring. All elec- trical connections must be made in accordance with local codes, ordinances and/or the National Electric Code.
-
Page 3: Important Safety Precautions
MPORTANT AFETY RECAUTIONS Thank you for choosing a Regency Ceiling Fan. You have chosen the best! Your new ceiling fan will provide many years of service and enjoyment. ARNINGS Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting. -
Page 4: Unpacking Your Fan
NPACKING A. Unpack your fan and check the contents. Do not discard the carton. If warranty replacement or repair is ever nec- essary, the fan should be returned in original packaging. Remove all parts and hardware. Do not lay motor housing on its side –... -
Page 5: Parts Supplied
ARTS UPPLIED Bracket (inside canopy) Canopy * Remote control Downrod receiver mounts inside Collar bracket and canopy (if Blade Cover used). Motor Housing Glass Shade (covering halogen light) REPARATION Verify you have all parts before beginning the installation. Check foam insert closely for missing parts. Remove motor from packing. - Page 6 NSTALLING THE TTACHING THE LADES 1. Remove fan’ s top housing (Fig. 2) by removing 6 screws holding it to the mounting collar. NOTE: 3 large screws, 3 small screws. 2. Insert blades through slots in side of fan motor and align with 5 holes. (If holes do not align, the blade is upside down.) Blades fit very snugly –...
-
Page 7: Installing The Fan
NSTALLING . 4): TTACHING OWNROD ANOPY AND OLLAR OVER 1. Remove ball from downrod by loosening set screw in the side of the ball. Slide ball down and remove ball pin; remove ball. 2. Feed the 3 wires from top of fan through either end of downrod and set end of downrod into mounting collar. 3. -
Page 8: Hanging The Fan
NSTALLING ANGING THE 1. Be sure your mounting bracket is secure. The entire weight of the fan will now be hanging from it. 2. Lift fan/downrod/ball assembly into mounting bracket opening. NOTE: The tab opposite mounting bracket opening should fit into slot on ball (Fig. 5). 3. -
Page 9: Electrical Connections
LECTRICAL ONNECTIONS ONTROL LECTRICAL ONNECTIONS Be sure electricity is turned off at the main power box before wiring. 1. Four wires are connected to the fan. Black - this is the “hot” power to run fan, also referred to as “AC line” or “supply”. White - this is the “common”... -
Page 10: General Information
LECTRICAL ONNECTIONS EMOTE ONTROL ENERAL NFORMATION This remote control is designed to separately control your ceiling fan speed and light brightness. There are four but- tons (hi, medium, low, off) to control the fan speed and off. The light dimmer button will control the light brightness dimmer and off. - Page 11 LECTRICAL ONNECTIONS EMOTE ONTROL 3. Push all connected wires up into junction box. 4. Lay the black antenna wire on top of the receiver and slide the receiver in the mounting bracket (Fig. 4). 5. Reinstall the canopy on the mounting bracket. 6.
-
Page 12: Operation
- if measurements from blade tip to blade tip are not equal, loosen screws connecting blade to motor one at a time and adjust blade(s) so that distances are equal. Interchanging adjacent blades may redis- tribute mass and result in smoother operation. www.regencyfan.com 5/04 Regency Ceiling Fans...
