CONTENTS Precautions..............................1 ..........................1 Lithium Battery Cell Warnings Use Caution s ............................1 Installation ..............................2 Installation Procedures ...........................2 Installation Opening ..........................2 Wiring Connections..........................3 ........................3 Remove of the Main Unit Control Panel Button Locations ........................4 Operation .............................. -
Page 3: Precautions
PRECAUTIONS Lithium Battery Cell Warnings Cell leakage may cause damage to the remote control. Do not throw cells into as this may cause an explosion. Keep battery cells out of reach of children. Use cautions Some MP3/WMA files may not be playable. Be sure to lower the volume before switching off the unit or the ignition key. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening 2.05 inch 7.20 inch MOUNTING SLEEVE This unit can be installed in any dashboard Having an opening as shown above . Insert mounting collar into the dashboard and bend the mounting tabs out with a screwdriver. -
Page 5: Wiring Connections
INSTALLATION(CONT.) - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA. Wiring Connections WIRING DIAGRAM Fuse Purple + Rear Right Speaker Power B+ (Yellow) Purple/Black -... -
Page 6: Control Panel Button Locations

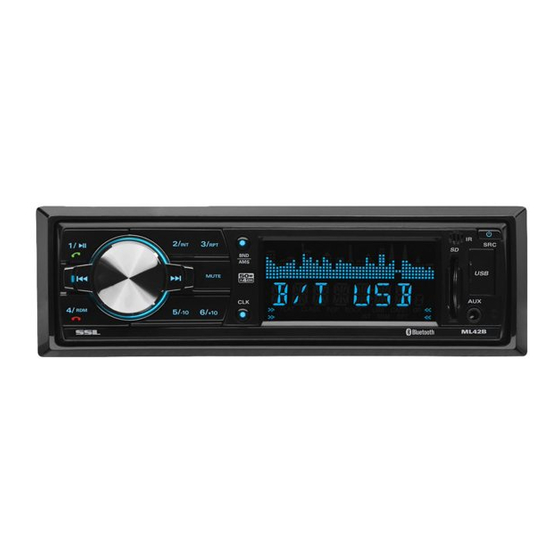

CONTROL PANEL BUTTON LOCATIONS ML42B OPERATION turn off the unit. RADIO,USB&CARD, BT , AUX IN, BT modes (if there are USB and SD card inside the unit). radio and Aux. When the user inserts a USB Stick or SD Card, their respective logos will illuminate on the display. -
Page 7: Set The Clock (Clk)
OPERATION 9. SD CARD SLOT In the radio mode, rotate the volume knob to increase or decrese the volume level of the sound Loud Stereo In the USB or SD card mode, press the volume knob to enter the EQ function that the audio At the radio status,press and hold the VOL button to enter switch state of the US(USA) and EU (EUROPE) frequency,then rotate the VOL knob to select US frequency or EU frequency,after selecting US or EU frequency,the system will switch to the selected frequency 3 seconds later. -
Page 8: Bluetooth Operation
To begin pairing, enable BT mode on your mobile phone. When the phone the car audio system, the SSL name will be displayed. Choose the SSL from the device list to pair and connect with the car audio system. Upon the BT logo will stop... -
Page 9: Remote Control
REMOTE CONTROL Button Names and Locations Power button BAND or button >|| or 1 button + 10 or 6 button INT (intro) or 2 button MUTE or DEL button - 10 or 5 button RPT (repeat) or 3 button AMS (automatic music search) or 9 button LOUD (loudness) or 8 button CLK (clock) or button... -
Page 10: Troubleshooting
TROUBLESHOOTING A lot of static in broadcast Connect the battery cable to the terminal that is always live. -
Page 11: Specifications
SPECIFICATIONS General Power supply Requirement : DC 12V Maximum power output : 50W X 4CH Speaker impedance : 4 - 8 Ohm Unit Dimensions(WxHxD) : 7.0 X 2.0 X 3.8 inch Weight : 1.54 Lb (0.7 kg) Fuse : RADIO Frequency Range USA / EUROPE: 87.5 MHz - 107.9 MHz / 87.5 MHz - 108.0MHz Channel step:...
