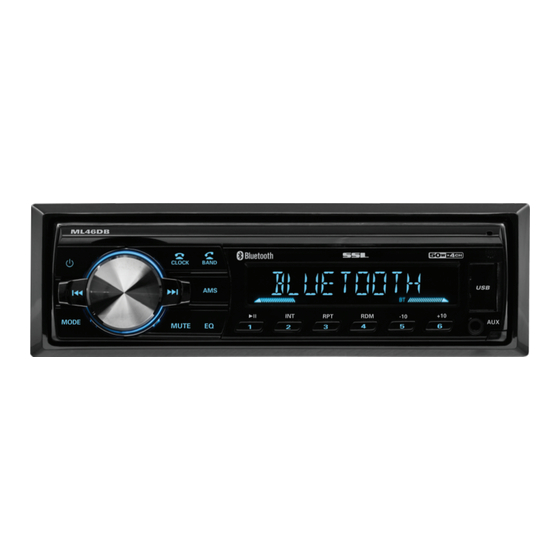

Summary of Contents for Ssl ML46DB
-
Page 2: Table Of Contents
CONTENTS Precautions..............................1 ..........................1 Lithium Battery Cell Warnings Use Caution s ............................1 Installation ..............................2 Installation Procedures .......................... 2 Installation Opening..........................2 Wiring Connections ..........................3 Uninstall the Main Unit ........................... 3 Control Panel Button Locations ........................4 Operation ..............................4 Power .............................. -
Page 3: Precautions
PRECAUTIONS Lithium Battery Cell Warnings • Cell leakage may cause damage to the remote control. • Do not throw cells into as this may cause an explosion. • Keep battery cells out of reach of children. Use cautions • • Some MP3/WMA files may not be playable. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening This unit can be installed in any dashboard Having an opening as shown below. 2.05 inch 7.20 inch Insert mounting collar into the dashboard and bend the mounting tabs out with a screwdriver. Make sure that lock lever is flush with the mounting collar( not projecting outward). -
Page 5: Wiring Connections
INSTALLATION(CONT.) - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA. Wiring Connections WIRING DIAGRAM Radio Antenna White:Front Left PRE-AMP Output Red: Front Right PRE-AMP Output Red: Rear Right PRE-AMP Output White: Rear Left PRE-AMP Output... -
Page 6: Control Panel Button Locations
CONTROL PANEL BUTTON LOCATIONS REMOVE PANEL RESET OPERATION 1.POWER Press the power ( ) button to turn the unit on or off. 2.MODE Press the MODE button to switch between RADIO, USB, BT, AUX IN modes. (if there are USB inside the unit). -
Page 7: Play/Pause, Intro, Repeat, Random, Tracks Playback
OPERATION >|| During USB mode, press the ‘1/ ’ button to pause or resume music playback. Press the ‘2/INT’ button to play the first 10 seconds of each track, press again to stop the introduction scan, and play the current track. Press the ‘3/RPT’... -
Page 8: Manual Tuning (|<< / >>|)
OPERATION 11.FF( ) &12.FB( In the radio mode: Long press the button for more than 2 seconds, the unit will switch to manual tuning mode, briefly press the button to search the next or previous frequency step by step. Short press the button, the automatic search will start, it will search upward or downward for the strong signal radio station within the cuttent band. -
Page 9: Bluetooth Operation
To begin pairing, enable BT mode on your mobile phone. 2. When the phone the car audio system, the “SSL ML46DB” will be displayed. 3. Choose the SSL ML46DB from the device list to pair and connect with the car audio system. Upon the BT logo will stop 4. -
Page 10: Remote Control
REMOTE CONTROL Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell When the lithium cell battery becomes weak, replace it as illustrated on the right. -
Page 11: Button Names And Locations
REMOTE CONTROL Button Names and Locations (Power on/off) button 2. VOL+/VOL-(volume increase/decrease) button 3. Band button, (answer call) button : tune down, seek down; previous track, fast reverse 5. SEL(selection) button : tune up, seek up; next track, fast forward 7. -
Page 12: Troubleshooting
TROUBLESHOOTING If you suspect something is wrong, immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell, can cause fire or electric shock. Immediately stop using it and call the store where you purchased it. Never try to repair the unit by yourself because it is dangerous to do so. - Page 13 SPECIFICATIONS General Power supply Requirement : DC 12V Maximum power output : 50W X 4CH Speaker impedance : 4 - 8 Ohm Unit Dimensions(WxHxD) : 7.0 X 2.0 X 3.8 inch Weight : 1.54 Lb (0.7 kg) Fuse : 15 A RADIO Frequency Range USA / EUROPE: 87.5 MHz - 107.9 MHz / 87.5 MHz - 108.0MHz...
