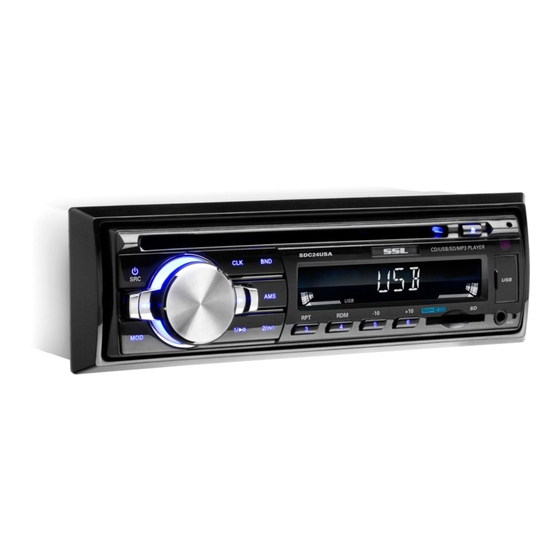

Ssl SDC24USA User Manual

Mp3-compatible am/fm receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDC24USA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ssl SDC24USA

Summary of Contents for Ssl SDC24USA

  • Page 2: Table Of Contents

    CONTENTS Precautions..............................1 How to Handle Discs ..........................1 Lithium Battery Cell Warnings ........................ 1 Installation ..............................2 Prepare Radio ............................2 Mount Radio ............................2 Wiring Connections ..........................3 Uninstall the Main Unit ........................... 4 Control Panel Button Locations ........................5 General Operation ............................

  • Page 3: Precautions

    PRECAUTIONS How to Handle Discs Handle a disc by its edges. Do not touch the playing side. Before inserting a disc, wipe the disc outward from the disc center with a clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a petrol/benzene or cleaners.

  • Page 4: Installation

    INSTALLATION Prepare Radio Before you begin, disconnect the battery negative terminal. Remove the transport screws. Remove chassis from the mounting sleeve. BRACKET KEY PLASTIC TRIM OUT BRACKET KEY If you want to remove the chassis from the mounting sleeve, remove the plastic trim out from both sides.

  • Page 5: Wiring Connections

    INSTALLATION (CONT.) INSTALLATION DASH BOARD DIAGRAM HEX NUT METAL MOUNTING STRAP CONSOLE PLAIN WASHER MOUNTING SLEEVE TAPPING SCREW HEX BOLT - Only use speakers with 4 ohms impedance. - Do not attach the control panel to the chassis before wiring is complete. - The maximum current of the auto antenna is 200mA.

  • Page 6: Uninstall The Main Unit

    INSTALLATION (CONT.) Uninstall the Main Unit Remove the metal strap from the main unit. Remove the plastic trim out from the main unit. Insert a bracket key into the left and right side of the main unit and draw the unit out of the mounting sleeve.

  • Page 7: Control Panel Button Locations

    CONTROL PANEL BUTTON LOCATIONS 2 13 11 4 3 MUTE 17 16 POWER/SRC (source) button SEL (select/menu) button and VOL (volume) knob BAND button AMS (automatic music search) button >|| or 1 button INT (intro) or 2 button RPT (repeat) or 3 button RDM (random) or 4 button -10 or 5 button +10 or 6 button...

  • Page 8: General Operation

    GENERAL OPERATION Turn Unit On/Off Press the power ( ) button to turn the unit on or off. Adjust Volume (VOL) Rotate the VOL knob on the front panel or press the VOL+/- buttons on the remote control to increase or decrease the volume level. Adjust Menu Options (SRC) Press the SEL button repeatedly to cycle through the following adjustable audio functions: VOL, BASS, TREBLE, BALANCE, FADER, LOUD, DSP and DX.

  • Page 9: Radio Operation

    RADIO OPERATION Switch Between US and EU Frequency In radio mode, press and hold the VOL button to switch between US (USA) and EU (Europe) frequency. The system will change the frequency setting in about 3 seconds. Change Bands (BAND) Press the BAND button to switch between the F1 (FM1), F2 (FM2), F3 (FM3), A1 (AM1) and A2 (AM2) bands.

  • Page 10: Disc/Usb/Card Operation

    DISC/USB/CARD OPERATION Insert Disc/USB/SD To play on a disc, insert a disc with the label surface up Label Up into the disc slot. Playback will begin automatically. To play on a USB device, open the USB port cover and insert the USB storage device into the USB port. Playback will begin automatically.

  • Page 11: Remote Control

    REMOTE CONTROL Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell When the lithium cell battery becomes weak, replace it as illustrated on the right.

  • Page 12: Button Names And Locations

    REMOTE CONTROL (CONT.) Button Names and Locations Power button MUTE button CLK (clock) button LOUD (loudness) button AMS (automatic music search) button PREV (previous) button EQ (equalizer) button SRC (source) button RPT (repeat) or 3 button 10. INT (intro) or 2 button 11.

  • Page 13: Troubleshooting

    TROUBLESHOOTING Symptom Cause Solution No Power Car ignition not on Switch ignition key to “ACC” Fuse blown Replace fuse Disc cannot be loaded Another disc is already in the Eject disc and insert new player Disc cannot be read Disc was inserted upside Insert disc with label facing down upward...

  • Page 14: Specifications

    SPECIFICATIONS General Power Supply Requirement ................... DC 12V Current Consumption ....................5A MAX Maximum Power Output ...................50W x 4CH Radio USA/Europe............... 87.5 MHz - 107.9 MHz/87.5 - 108.0 MHz Usable Sensitivity ......................30 dBu I.F. Frequency ......................10.7 MHz USA/Europe..............530 KHz - 1710 KHz/522 - 1620 KHz Usable Sensitivity ......................20 dBu I.F.
