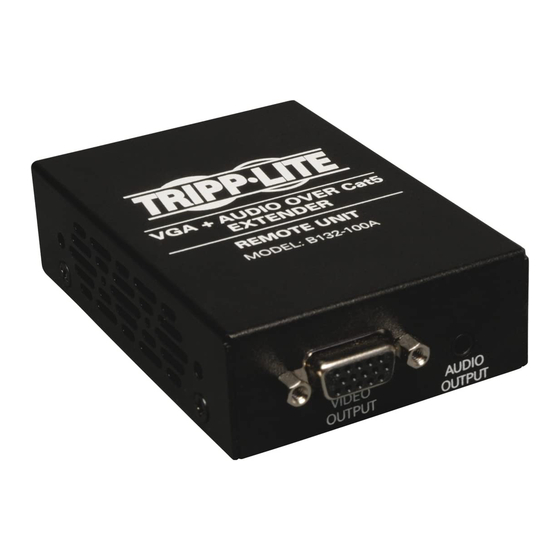

Vga with audio over cat5 extender/splitter
Hide thumbs Also See for B132-100A:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

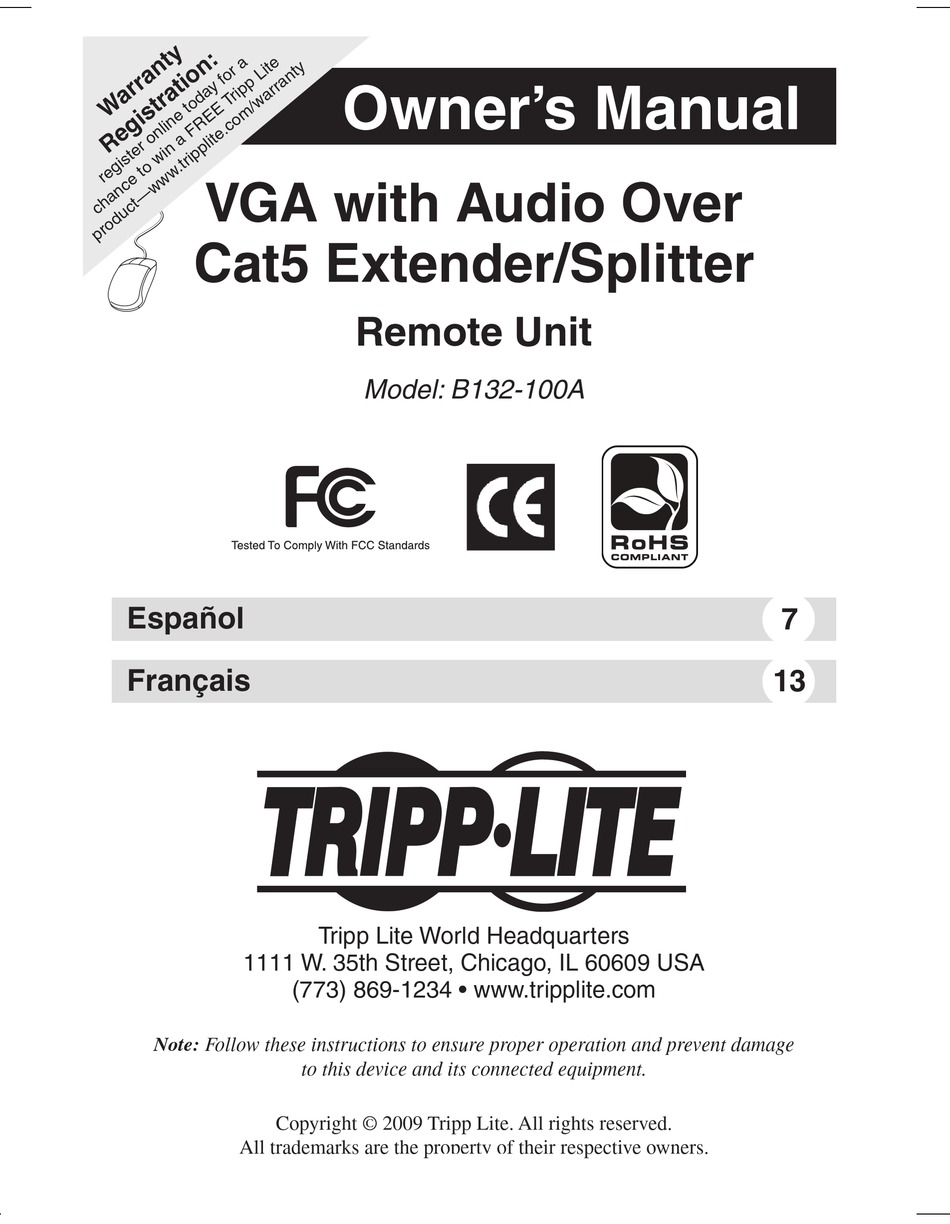

Owner's Manual
VGA with Audio Over
Cat5 Extender/Splitter

Remote Unit

Model: B132-100A
Español
7 7
Français
15
13
Tripp Lite World Headquarters
1111 W. 35th Street, Chicago, IL 60609 USA
(773) 869-1234 • www.tripplite.com
Note: Follow these instructions to ensure proper operation and prevent damage
to this device and its connected equipment.
Copyright © 2009 Tripp Lite. All rights reserved.
All trademarks are the property of their respective owners.
1

Advertisement

loading

Related Manuals for Tripp Lite B132-100A

Summary of Contents for Tripp Lite B132-100A

  • Page 1: Remote Unit

    1111 W. 35th Street, Chicago, IL 60609 USA (773) 869-1234 • www.tripplite.com Note: Follow these instructions to ensure proper operation and prevent damage to this device and its connected equipment. Copyright © 2009 Tripp Lite. All rights reserved. All trademarks are the property of their respective owners.

  • Page 2: Product Features

    Package Contents • B132-100A VGA with Audio Over Cat5 Extender/Splitter Remote Unit • 5V, 2A Power Supply • Screwdriver • Owner’s Manual Product Features • Works in conjunction with a B132-004A VGA with Audio Over Cat5 Extender/Splitter Local Unit (sold separately) to extend a VGA and Audio...

  • Page 3: Function Description

    Specifications (continued) B132-100A Dimensions (Inches) ..1.1 (H) x 2 (W) x 3.75 (D) B132-100A Weight (lbs) ..... 0.4 Note: Specifications are subject to change without notice. Mass and dimensions are approximate; please take the products as a standard. Function Description Remote Audio-Out Port: 3.5 mm Female.

  • Page 4: Installation

    B132-100A Remote Unit. Use Cat5e/6* cable to connect one of the Output ports on the B132- 004A Local Unit to the Input port on the B132-100A Remote Unit. Connect a monitor to the Video port of the B132-100A Remote Unit using a Tripp Lite P502-Series VGA cable.

  • Page 5: Safety Information

    Safety Information • To reduce the risk of electric shock, do not expose this product to rain or moisture. • Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fire.
  • Page 6 Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite; 1111 W. 35th Street; Chicago IL 60609; USA. Seller will pay return shipping charges. Call Tripp Lite Customer Service at (773) 869-1234 before sending any equipment back for repair.
