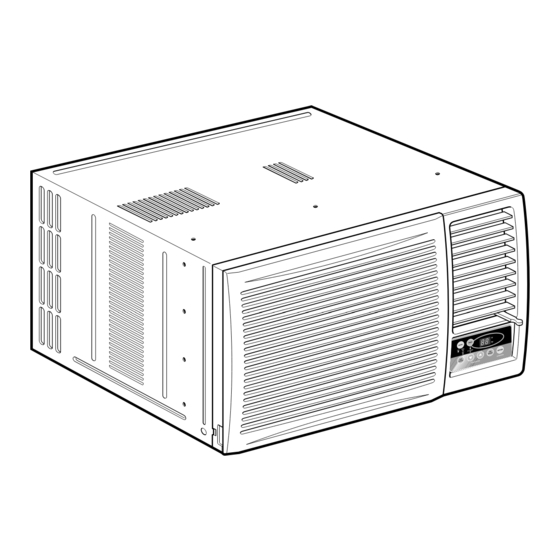

Panasonic CW-XC145HU Installation And Operating Instructions Manual

Room air conditioner
Hide thumbs

Advertisement

Please read these operating instructions thoroughly
before using your air conditioner and keep for future
reference.
For assistance, please call: 1-800-211-PANA(7262) or
Register your product at : http://www.panasonic.com/register

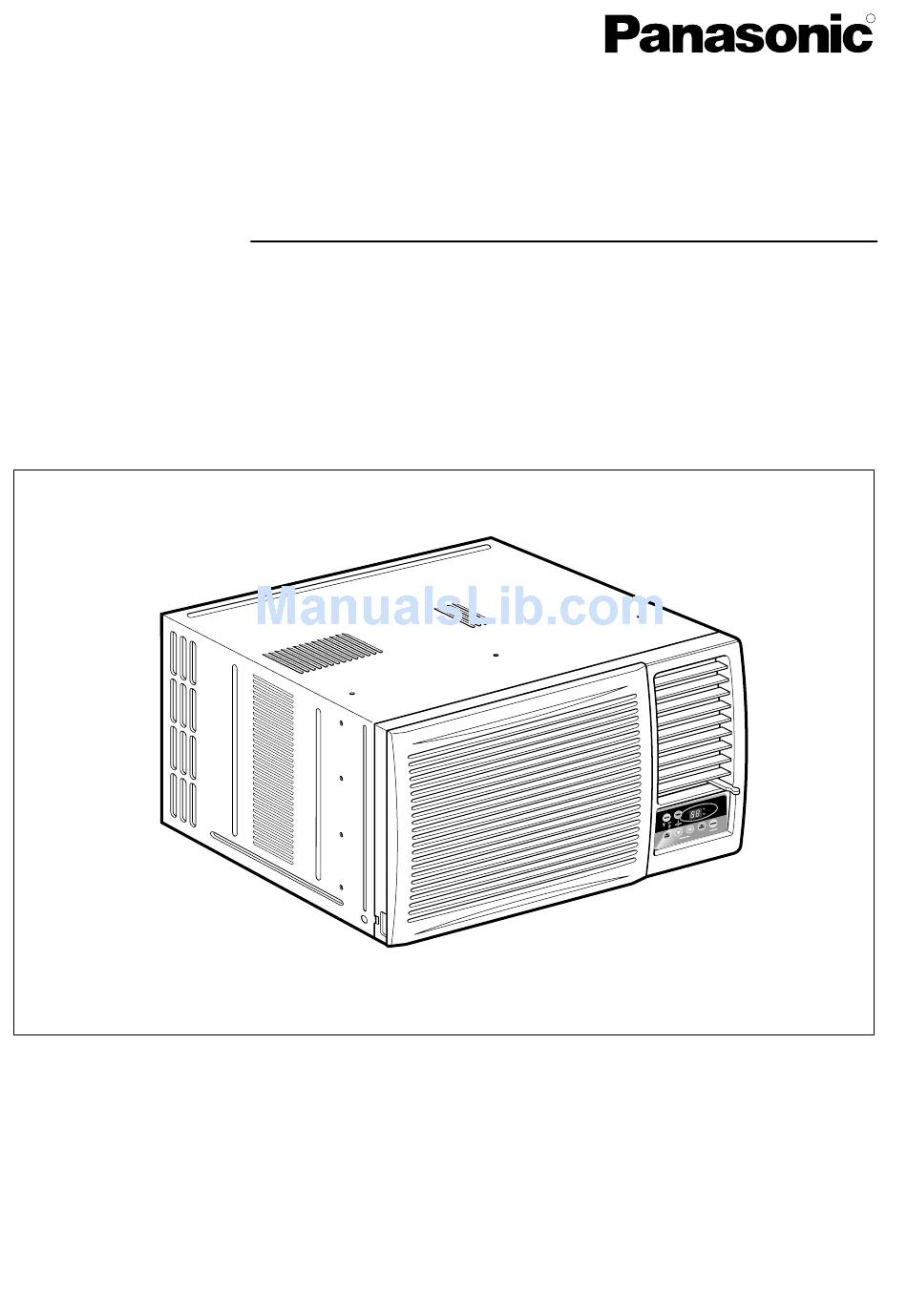

INSTALLATION AND OPERATING INSTRUCTIONS

Room Air Conditioner

CW-XC145HU
Models:
CW-XC185HU
CW-XC245HU
R
CW382820391S

Advertisement

loading

  Also See for Panasonic CW-XC145HU

  Related Manuals for Panasonic CW-XC145HU

  Summary of Contents for Panasonic CW-XC145HU

  • Page 1: Room Air Conditioner

    Room Air Conditioner INSTALLATION AND OPERATING INSTRUCTIONS CW-XC145HU Models: CW-XC185HU CW-XC245HU Please read these operating instructions thoroughly before using your air conditioner and keep for future reference. For assistance, please call: 1-800-211-PANA(7262) or Register your product at : http://www.panasonic.com/register CW382820391S...
  • Page 2: Table Of Contents

    Safety Precautions Safety Precautions .....3 FOR YOUR RECORDS Staple your receipt to this page in case you need it later. Write down the model and serial numbers here: Model # Serial # You can find them on a label on the side of each unit. Dealer's Name Date Purchased About the Controls on...
  • Page 3: Safety Precautions

    Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury.
  • Page 4 When the air filter is to be Do not clean the air Ventilate well when used conditioner with water. removed, do not touch the together with a stove, etc. metal parts of the unit. • It may cause an injury. •...
  • Page 5: About The Controls On The Air Conditioner

    About the Controls on the Air Conditioner Controls OPERATION ON/OFF TIMER • To turn the air conditioner ON, push the button. To turn You can set the time when the unit will turn on or turn off the air conditioner OFF, push the button again. automatically by pressing the timer button.
  • Page 6: Remote Controller

    Remote controller Precaution: The Remote Controller will not function properly if strong light strikes the sensor window of the air conditioner or if there are obstacles between the Remote Controller and the air conditioner. OPERATION TEMP TIMER SWING MODE FAN SPEED ECONOMY - STARTING OPERATION OPERATION...
  • Page 7: Ventilation

    Additional controls and important information. Ventilation The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions. When fresh air is necessary in the room, set the ventilation lever to the OPEN position. CLOSE VENT OPEN The damper is opened and room air is drawn out.
  • Page 8: Care And Maintenance

    Care and Maintenance TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET. Air Filter Cleaning The air filter behind the front grille should be checked and cleaned at least once every 2 weeks or more often if necessary. TO REMOVE: 1.
  • Page 9: Features

    Features Learning parts name prior to installation will help you understand the installation procedure. Features VERTICAL AIR DEFLECTOR (HORIZONTAL LOUVER) HORIZONTAL AIR DEFLECTOR (VERTICAL LOUVER) AIR DISCHARGE CABINET FRONT GRILLE AIR FILTER AIR INTAKE (INLET GRILLE) BRACE COMPRESSOR CONDENSER EVAPORATOR BASE PAN CONTROL BOARD POWER CORD...
  • Page 10: Installation How To Install The Unit

    Installation How to Install the Unit INSIDE OUTSIDE Fence Awning Foam Heat 1/4 Bubble Radiation Cooled About 1/2" Over 20" Level 1. To prevent vibration and noise, make sure the unit is installed securely and firmly 2. Install the unit where the sunlight does not shine directly on the unit. 3.
  • Page 11: Installation Kit Contents

    Installation Kits Contents Foam strip Foam-PE (Plain-Back) (Adhesive-Backed) Foam-PE (Adhesive-Backed) Left frame curtain Drain pipe Window locking bracket Right frame curtain Sill bracket (2) Support bracket(2) Type A (14) Type B (7) Type C (5) Type D (2) Carriage Bolt (2) Lock Nut (4) Top retainer bar is in product package.
  • Page 12: Suggested Tool Requirements

    Suggested Tool Requirements SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL PREPARATION OF CHASSIS Shipping screws 1. Remove the screws which fasten the cabinet at both sides and at the back.(See Fig.1) 2. Slide the unit out from the cabinet by gripping the base pan handle and pulling forward while bracing the cabinet.(See Fig.
  • Page 13: Cabinet Installation

    Cabinet Installation 1. Open the window. Mark a line on the center of the window stool between the side Sill Bracket Support window stop moldings. Bracket Loosely attach the sill bracket to the support Carriage Lock nut Bolt bracket using the carriage bolt and the lock (Type M) nut.
  • Page 14 5. Pull each Frame curtain fully to each window sash track, and pull the bottom window sash down behind the Top retainer bar until it meets. 6. Attach each Frame curtain the window sash by using screws (Type C.) (See Fig. 9) Fig.
  • Page 15: Electrical Data

    Electrical Data Power cord may include a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.
  • Page 16: Electrical Safety

    Electrical Safety IMPORTANT Because of potential safety hazards, we strongly discourage the use of an adapter plug. However, if (PLEASE READ CAREFULLY) you wish to use an adapter, a TEMPORARY CONNECTION may be made. Use UL-listed adapter, available from most local hardware stores FOR THE USER'S PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED (Fig.
  • Page 17: Before You Call For Service

    Before you call for service... Troubleshooting Tips Save time and money! Review the chart below first and you may not need to call for service. Normal Operation • You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high.

This manual is also suitable for:

Cw-xc245huCw-xc185hu
