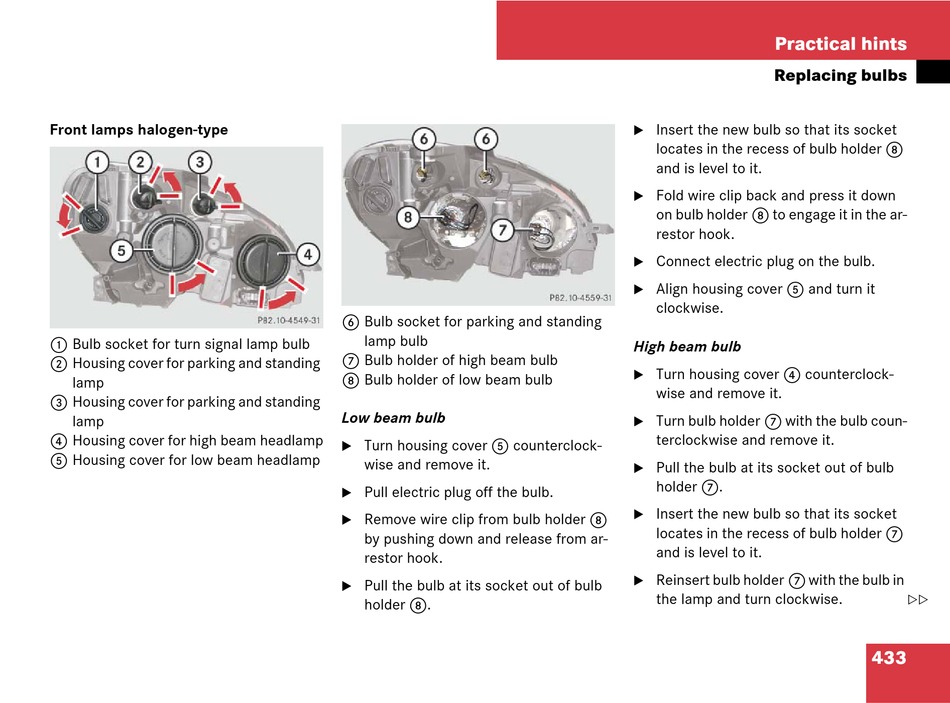

Front lamps halogen-type
1 Bulb socket for turn signal lamp bulb
2 Housing cover for parking and standing
lamp
3 Housing cover for parking and standing
lamp
4 Housing cover for high beam headlamp
5 Housing cover for low beam headlamp
6 Bulb socket for parking and standing
lamp bulb
7 Bulb holder of high beam bulb
8 Bulb holder of low beam bulb
Low beam bulb
Turn housing cover 5 counterclock-
wise and remove it.
Pull electric plug off the bulb.
Remove wire clip from bulb holder 8
by pushing down and release from ar-
restor hook.
Pull the bulb at its socket out of bulb
holder 8.
Practical hints
Replacing bulbs
Insert the new bulb so that its socket
locates in the recess of bulb holder 8
and is level to it.
Fold wire clip back and press it down
on bulb holder 8 to engage it in the ar-
restor hook.
Connect electric plug on the bulb.
Align housing cover 5 and turn it
clockwise.
High beam bulb
Turn housing cover 4 counterclock-
wise and remove it.
Turn bulb holder 7 with the bulb coun-
terclockwise and remove it.
Pull the bulb at its socket out of bulb
holder 7.
Insert the new bulb so that its socket
locates in the recess of bulb holder 7
and is level to it.
Reinsert bulb holder 7 with the bulb in
the lamp and turn clockwise.
