Summary of Contents for CDA FWC860

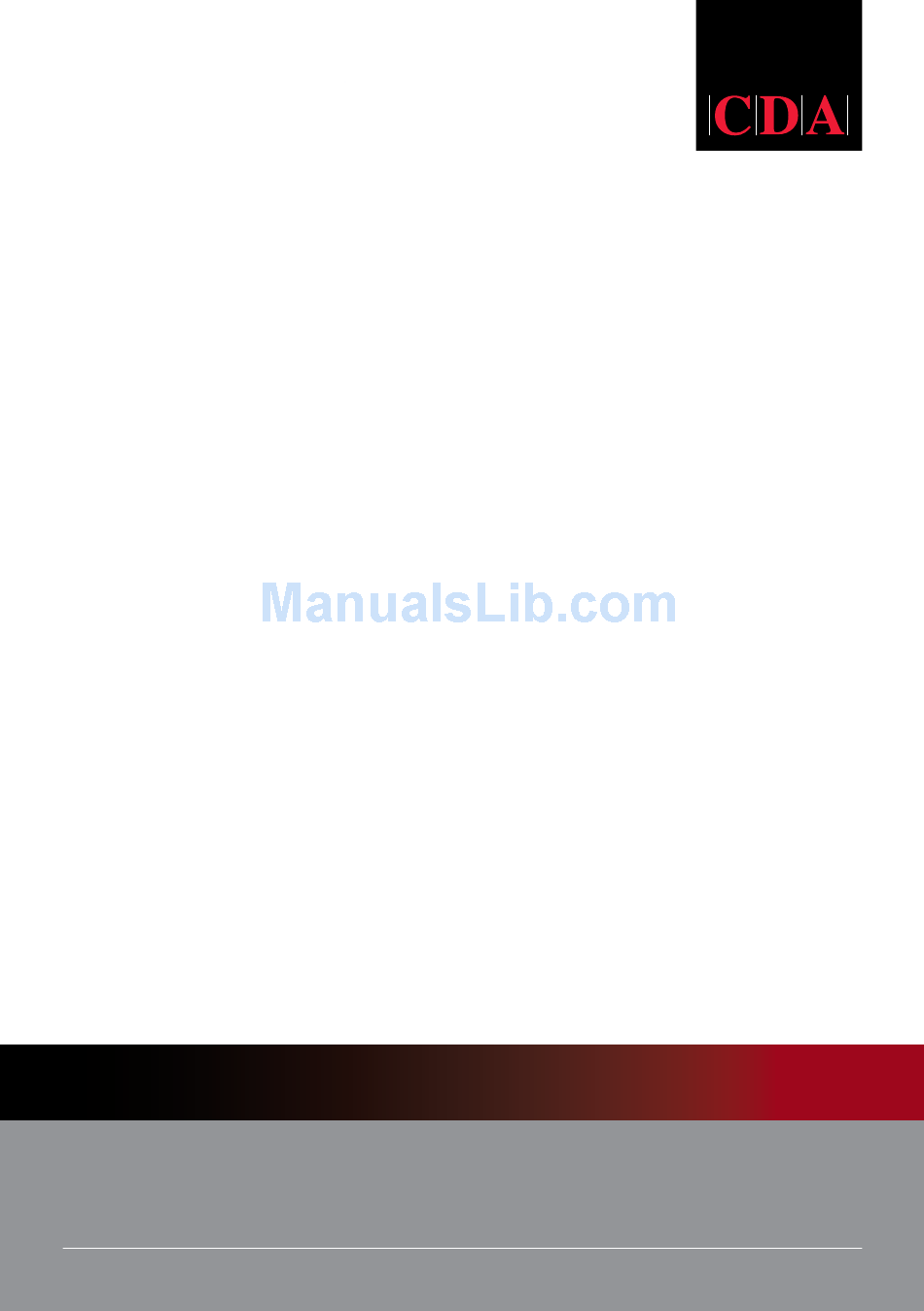

- Page 1 FWC860 Wine Cooler Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
- Page 2 Keep the mains cord out of the reach of children. Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes.
- Page 3 Appliance Model Serial Number CE Declarations of Conformity: This appliance has been designed, constructed and marketed in compliance with safety requirements of EEC Directive 2006/95/EEC (Low voltage) and requirements of EMC Directive 2004/108/EEC. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
-
Page 4: Before First Use
Before First Use You must allow the appliance to settle for at least twenty four hours prior to switching the power on. It is recommended that you remove all internal and external packaging and clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly dry the interior. - Page 5 • Only open the door when necessary. • Do not cover the shelves with aluminium foil or anything else that will prevent air from circulating around the cabinet. • To prevent damage to the door seal, ensure the door is fully open before removing the shelves.
- Page 6 Use and Controls Key: 1 – Power button 2 – Upper zone "+" button 3 – Upper zone "-" button 4 – Lower zone "+" button 5 – Lower zone "-" button 6 – Light button Fig. 1 To switch the power on/off Touch and hold the power button for five seconds.
- Page 7 Optimal temperature selection Whilst wine is best stored at temperatures between 13 and 15˚C, your wine can also be stored at drinking temperature, for red wine this is between 15 and 17˚C, and for white wine between 12 and 13˚C. To use the internal light •...
- Page 8 Temperature display The temperature display will show the current internal temperature. The display flashes: • When a different temperature is being set • If the internal temperature is +/- 5˚ away from the set temperature. This serves as a warning to prevent damage to the contents of the appliance should the temperature be too high.
- Page 9 Dynamic Cooling and Silent modes The appliance has two different running modes. • Silent mode Once the required temperature is reached, the appliance will run without the fan. The wine cooler is factory set to silent mode. To change to dynamic cooling mode, touch and hold the "-" button for approximately five seconds.
-
Page 10: Temperature Alarm
Removing the shelves To remove a shelf from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the Fig. 3 plastic peg on either side of the cabinet (as shown in fig. -
Page 11: Care And Cleaning
Care and Cleaning Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance. • Do not use abrasive products or detergents. After washing, rinse and dry thoroughly. • The exterior of the appliance and the door seal should be cleaned using mild soapy water and dried thoroughly. -
Page 12: Troubleshooting
Troubleshooting If you have any problems with your appliance you should check the troubleshooting guide prior to calling CDA Customer Care, to prevent unnecessary service calls and potential cost. If the appliance is not working, check • There is power to the appliance •... - Page 13 The light button is not set to off. Please note: The LED lighting cannot be replaced without a service call. If the light fails, contact CDA Customer Care. The door will not close properly, check • The appliance is level and stable.
-
Page 14: Installing The Wine Cooler
The minimum space required is: FWC860 – 600mm wide x 580mm deep x 1780mm high Please note: When the product is installed, there should be a small ventilation gap between the top of the unit and the underside of any fitting above (6 mm or ¼”). - Page 15 To Install the Handle IMPORTANT: Do not overtighten the screws, and do not use power tools to install the handle. 1. Carefully locate the handle in the required position (this would normally be the higher of the two). 2. Fix this in position using the screws supplied.
-
Page 16: Reversing The Door
Reversing the Door It is possible to reverse the door on this appliance, if required. To do so, follow the steps below: 1. Remove both plastic covers "1" then remove the bottom hinge "3" by unscrewing the four screws "2". Be Fig. - Page 17 5. Unscrew the door spacer "4" from the lower end of the door, move it to the other end and fasten it there (Fig. 9). 6. Unscrew the hinge pin from the bottom hinge (removed at stage 1, above) and attach it to its alternative location in the same hinge bracket Fig.
-
Page 18: Electrical Information
Electrical Information Warning! This appliance must be earthed. The mains lead of this appliance has been fitted with a BS 1363A 13 Amp fused plug. To change a fuse in this type of plug, follow the steps below: 1. Remove the fuse cover and fuse. 2. - Page 19 As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:- • The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with the letter (E) or by the Earth symbol or coloured GREEN and YELLOW.
- Page 20 NOTES:...
- Page 21 NOTES:...
- Page 22 NOTES:...
- Page 23 Airborne accoustic noise emissions dB(A) This appliance is intended to be used exclusively for the storage of wine. E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.
- Page 24 T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu Copyright © CDA 2015...
