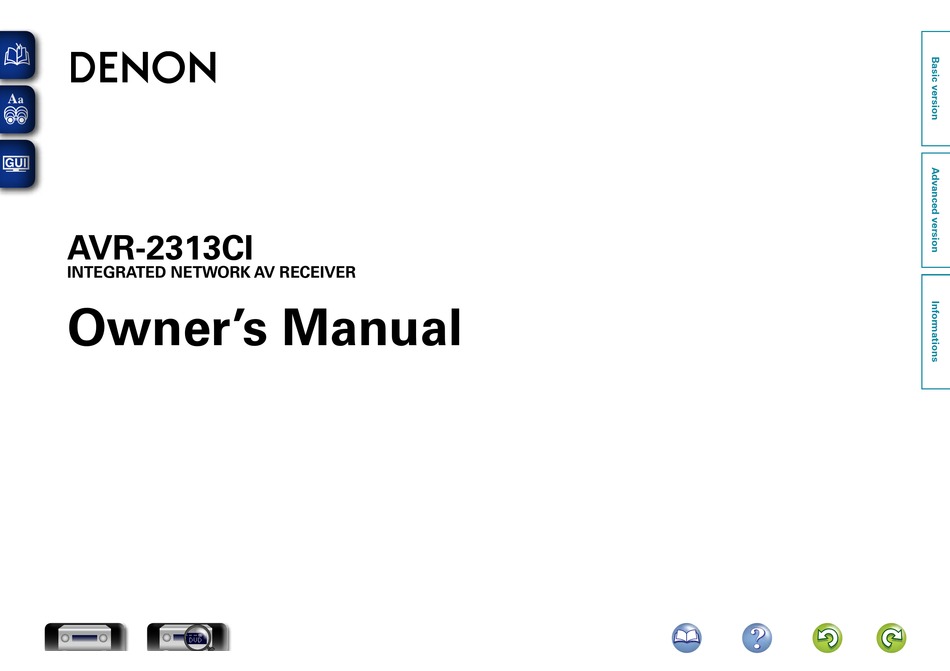

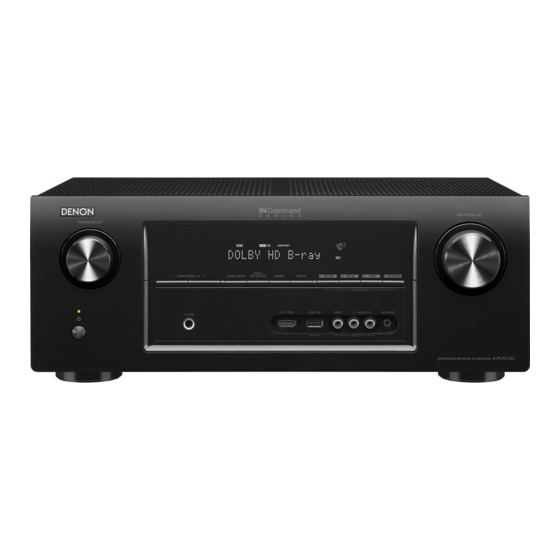

AVR-2313CI
INTEGRATED NETWORK AV RECEIVER
Owner's Manual
DVD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVR-2313CI and is the answer not in the manual?

Questions and answers

Related Manuals for Denon AVR-2313CI

Summary of Contents for Denon AVR-2313CI

  • Page 1 AVR-2313CI INTEGRATED NETWORK AV RECEIVER Owner’s Manual...
  • Page 2 The exclamation point within an equilateral triangle is intended approved by DENON may void your authority, granted by the FCC, to use 10. Protect the power cord from being walked on or pinched particularly at to alert the user to the presence of important operating the product.
  • Page 3 n CAUTIONS ON INSTALLATION NOTES ON USE WARNINGS • Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack. • Handle the power cord carefully. Hold the plug when unplugging the cord. • Keep the unit free from moisture, water, and dust. • Unplug the power cord when not using the unit for long periods of time.

  • Page 4: Table Of Contents

    Getting started Thank you for purchasing this DENON product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference. Contents Advanced version Informations ································································75 ·········································································134 Getting started ··············································································1...

  • Page 5: Accessories

    Android smartphone Simultaneous playback on two HDMI channels “Denon Remote App” is application software that allows you to This unit is equipped with two HDMI MONITOR outputs. You can perform basic operations with an iPad, iPhone, Android smartphone...

  • Page 6: Cautions On Handling

    Features Cautions on handling Digital video processor up-scales analog video • Before turning the power on signals (SD resolution) to 4K Check once again that all connections are correct and that there are This unit is equipped with the 4K video upscaling function, which no problems with the connection cables.

  • Page 7: Basic Version

    Basic version Basic version Here, we explain the connections and basic operation methods for this unit. F Connections vpage 5 F Setup vpage 25 F Playback (Basic operation) vpage 32 F Selecting a listening mode (Sound Mode) vpage 69...

  • Page 8: Connections

    Connections Important information Make connections before using this unit. n HDMI-compatible device To create a home theater that can play back higher quality video and audio by fully utilizing the capabilities of this unit and your video devices, connect this unit to each of your video devices with HDMI cables.
  • Page 9 Important information Converting input video signals for output (Video conversion function) Make Settings as Necessary • If you do not want this unit to convert video signals automatically, This unit is equipped with three types of video input connectors (HDMI, Component video and video) and three types of video output connectors use the following setting item to disable this function.

  • Page 10: Connecting An Hdmi-Compatible Device

    Connecting an HDMI-compatible device You can connect up to eight HDMI-compatible devices (6-inputs/2-outputs) to the unit. If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections. Connections with an HDMI cable offer the following benefits that can not be achieved with n Before connecting this unit to TV via HDMI connections (vpage 8) other connection methods.
  • Page 11 Connecting an HDMI-compatible device Before connecting this unit to TV via HDMI connections n About ARC (Audio Return Channel) function This function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable. There are 2 methods to connect HDMI-compatible TV to this unit.
  • Page 12 Connecting an HDMI-compatible device Connecting this unit to a TV via HDMI connections NOTE • The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be limited by the HDMI audio specifications of the connected device regarding permissible inputs. Cables used for connections • When connecting a TV that does not support the ARC function, an audio cable connection is Audio and video cable (sold separately)
  • Page 13 Connecting an HDMI-compatible device Connecting this unit to video devices via HDMI connections Digital camcorder Cables used for connections HDMI Audio and video cable (sold separately) HDMI cable • This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable. Blu-ray Disc Set-top...
  • Page 14 Connecting an HDMI-compatible device HDMI function n Deep Color (vpage 149) When a device supporting Deep Color is connected, use a cable compatible with “High Speed HDMI This unit supports the following HDMI functions: cable” or “High Speed HDMI cable with Ethernet”. n About 3D function n Auto Lip Sync (vpage 110, 149) This unit supports input and output of 3D (3 dimensional) video signals of HDMI.

  • Page 15: Connecting An Hdmi-Incompatible Device

    Connecting an HDMI-incompatible device For high quality video and surround playback, it is recommended to Cables used for connections Changing the source assigned to use an HDMI cable to connect this unit to TV and other video devices (vpage 7 “Connecting an HDMI-compatible device”). connectors This section describes connections when your device does not Video cable (sold separately)

  • Page 16: Connecting A Tv

    Connecting an HDMI-incompatible device Connecting a TV Input connector setting When making the following connection, you must change the input connector settings. • This section describes how to connect when your TV does not support HDMI connections. For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 7). a DIGITAL AUDIO COAXIAL connector • If the TV connected to this unit is equipped with an HDMI connector that supports ARC, digital audio When connecting to connectors marked as 1, change “CBL/SAT”...
  • Page 17 Connecting an HDMI-incompatible device Connecting a set-top box (Satellite tuner/cable TV) Satellite tuner/Cable TV AUDIO VIDEO This section describes how to connect when your satellite tuner or cable TV does not support HDMI AUDIO COAXIAL OPTICAL COMPONENT VIDEO VIDEO connections. For instructions on HDMI connections, see “Connecting an HDMI-compatible device”...
  • Page 18 Connecting an HDMI-incompatible device Connecting a DVD player Input connector setting When making the following connection, you must change the input connector settings. This section describes how to connect when your DVD player does not support HDMI connections. For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 7). a DIGITAL AUDIO OPTICAL connector When connecting to connectors marked as 1, change “TV AUDIO”...
  • Page 19 Connecting an HDMI-incompatible device Connecting a Blu-ray Disc player Blu-ray Disc player AUDIO VIDEO This section describes how to connect when your Blu-ray disc player does not support HDMI connections. AUDIO COAXIAL OPTICAL COMPONENT VIDEO For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 7). n Audio connection The following methods are available for connecting to this unit.
  • Page 20 Connecting an HDMI-incompatible device Connecting a digital camcorder Digital camcorder VIDEO AUDIO GFront panelH This section describes how to connect when your digital camcorder does not support HDMI connections. VIDEO AUDIO For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 7). n Audio connection The following methods are available for connecting to this unit.
  • Page 21 Connecting an HDMI-incompatible device Connecting a media player Input connector setting When making the following connection, you must change the input connector settings. • This section describes how to connect when your media player does not support HDMI connections. For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 7). a DIGITAL AUDIO COAXIAL connector • When recording analog audio, use the analog connection.
  • Page 22 • iPod nano • iPod touch DENON does not guarantee that all USB memory devices will operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, • iPhone...
  • Page 23 Connecting an HDMI-incompatible device Connecting a CD player CD player AUDIO You can enjoy CD sound. AUDIO COAXIAL OPTICAL n Audio connection The following methods are available for connecting to this unit. Use either of the methods to make a connection. The numbers prefixed with connectors indicate the recommendation order.
  • Page 24 Connecting an HDMI-incompatible device Connecting an FM antenna Direction of broadcasting station • Connect the FM antenna supplied with the unit to enjoy listening to radio broadcasts. FM outdoor • After connecting the antenna and receiving a broadcast signal (vpage  40 “Listening to FM antenna broadcasts”), fix the antenna with tape in a position where the noise level becomes minimal.

  • Page 25: Connecting An External Control Device

    Connecting an external control device REMOTE CONTROL jacks RS-232C connector TRIGGER OUT jack If this unit is installed in a location that is out of range of the signal When you connect an external control device, you can control this When a device with TRIGGER IN jack is connected, the connected from the remote control unit, you can still operate the unit and the unit with the external control device (such as power supply operation,...

  • Page 26: Connecting To A Home Network (Lan)

    To LAN port details. • The normal shielded-type Ethernet cable LAN port/ • DENON assumes no responsibility whatsoever LAN port/ is recommended. If a flat-type cable or To LAN port Ethernet for any communication errors or troubles...

  • Page 27: Connecting The Power Cord

    Connecting the power cord After completing all the connections, insert the power plug into the power outlet. To household power outlet (AC 120 V, 60 Hz) Power cord (supplied) NOTE • Do not plug in the power cord until all connections have been completed. • Do not bundle power cords together with connection cables.

  • Page 28: Setup

    Setup Here, we explain “Audyssey ® Setup”, which allows you to Set up speakers (Audyssey ® Setup) automatically make the optimal settings for your speakers, and “Network”, which allows you to connect this unit to a home network (LAN). This unit lets you play via your home network (LAN) music files stored The acoustic characteristics of the connected speakers and on a computer and music content such as that from Internet radio.
  • Page 29 Set up speakers (Audyssey ® Setup) Prepare the included setup microphone Set up the subwoofer Preparation Mount the setup microphone on a tripod or stand If using a subwoofer capable of the following and place it in the main listening position. adjustments, set up the subwoofer as shown below.
  • Page 30 Set up speakers (Audyssey ® Setup) Preparation (Continued) Detection & Measurement (Main) • This step automatically checks the speaker configuration and speaker NOTE Select “Start” and then press size, and calculates the channel level, distance, and crossover ENTER If “Caution!” is displayed on TV screen: frequency.
  • Page 31 Set up speakers (Audyssey ® Setup) Measurement (2nd – 8th) Calculation • In this step, you will perform measurements at multiple positions Repeat step 10, measuring positions 3 to 8. Select “Calculation” and then press ENTER (two to eight positions) other than the main listening position. When measurement position...
  • Page 32 Set up speakers (Audyssey ® Setup) Check Store Finish Unplug the setup microphone from the unit’s SETUP ENTER to select the item you Select “Store” and then press MIC jack. want to check, and then press Save the measurement results. ENTER Select “Next”...
  • Page 33 Set up speakers (Audyssey ® Setup) Error messages NOTE • An error message is displayed if Audyssey ® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures.

  • Page 34: Making The Network Settings (Network)

    Set up speakers (Audyssey ® Setup) Making the network settings Parameter Check (Network) This function enables you to check the measurement results and equalizer characteristics after Audyssey ® This unit can be connected to a home network (LAN) to listen to Internet radio or play back music files and Setup.

  • Page 35: Playback (Basic Operation)

    Playback (Basic operation) Important information Setup (vpage 25) Before starting playback, make the connections between the different Selecting the input source n Turning the power on (vpage 32) devices and the settings on the unit. n Selecting the input source (vpage 32) Press the input source select button NOTE CBL/SAT Blu-ray...

  • Page 36: Playing A Blu-Ray Disc Player/Dvd Player

    Important information Playing Super Audio CD Playing a Blu-ray Disc player/DVD Adjusting the master volume player The following describes the procedure for playing Super Audio CD. VOLUME df to adjust the Prepare for playback. The following describes the procedure for playing Blu-ray Disc player/ volume.

  • Page 37: Playing A Cd Player

    Playing a CD player Playing an iPod The following describes the procedure for playing CD player. You can use the USB cable provided with the iPod to connect the iPod n Streaming music stored in iPhone, iPod touch, with the unit’s iPod/USB port and enjoy music stored on the iPod. Prepare for playback.
  • Page 38 • Depending on the type of iPod and the software version, some functions may not operate. Press ENTER • Note that DENON will accept no responsibility whatsoever for any Playback starts. problems arising with the data on an iPod when using this unit in conjunction with the iPod.
  • Page 39 Playing an iPod n Performing repeat playback (Repeat) n iPod operation buttons n Performing random playback (Random) Operation buttons Function Press OPTION while in Browse mode. OPTION Press while in Browse mode. CH/PAGE df Page search The option menu screen is displayed. The option menu screen is displayed.

  • Page 40: Playing A Usb Memory Device

    Playing a USB memory device Playing back music or still picture (JPEG) files recorded on a USB memory device. Important information • Only USB memory devices conforming to mass storage class and MTP (Media Transfer Protocol) GCompatible formatsH standards can be played on this unit. Sampling frequency Bit rate Extension...
  • Page 41 Playing back still images in sequential order or folder, then press ENTER (Slideshow) (vpage 66) • Note that DENON will accept no responsibility whatsoever for any to select the file, then problems arising with the data on a USB memory device when using press ENTER this unit in conjunction with the USB memory device.
  • Page 42 Playing a USB memory device n USB memory device operation buttons Operation buttons Function CH/PAGE df Page search Display of information such as the INFO source name, volume, and sound mode name Text Search / Repeat playback / OPTION Random playback / Picture View / Slideshow Cursor operation /...

  • Page 43: Listening To Fm Broadcasts

    Listening to FM broadcasts For antenna connections, see “Connecting an FM antenna” Operations available through the OPTION button Listening to FM broadcasts (vpage 21). OPTION Press the button to display a menu of functions that can be Press to switch the input used on the TV screen.
  • Page 44 Listening to FM broadcasts n Changing the tuning mode (Tune Mode) to select tuning mode, then press ENTER You can change the mode for tuning into FM broadcasts. If you cannot tune in automatically with “Auto” mode, then change the GTV ScreenH mode to “Manual”...
  • Page 45 Listening to FM broadcasts n Tuning in by entering the radio frequency to select a number and press (Direct Tune) The screen that lets you enter the frequency is displayed. You can enter the receiving frequency directly to tune in. GTV ScreenH Press to switch the input source to “FM”.
  • Page 46 Listening to FM broadcasts Presetting broadcast stations Press ENTER The unit starts to tune in to radio stations automatically and n Tuning in to radio stations and presetting them preset them. automatically (Auto Preset Memory) GTV ScreenH Up to 56 stations can be preset. If “Auto Preset Memory”...
  • Page 47 Listening to FM broadcasts n Presetting the current broadcast station Channel Default Settings to select the channel you want to preset, (Preset Memory) 87.50 / 89.10 / 98.10 / 107.90 / 90.10 / 90.10 / 90.10 / ENTER then press 1 –...
  • Page 48 Listening to FM broadcasts n Specify a name for the preset broadcast station to select the group of the broadcast station to select a name label, then press ENTER (Preset Name) ENTER you want to name, then press The screen that lets you edit the preset name is displayed. You can set the name to the preset broadcast station or change it.
  • Page 49 Listening to FM broadcasts n Skipping preset broadcast stations GTo set the stations you want to skip by groupsH GTo set the stations you want to skip by stationsH (Preset Skip) q Use to select the group of broadcast q Use to select the group of broadcast You can set in advance, the stations you do not want to be stations you want to skip.
  • Page 50 Listening to FM broadcasts Cancelling preset skip n FM operation buttons Operation buttons Function While the Preset Skip screen is displayed, use FAVORITE Add/call up favorites to select a group containing a broadcast station to STATION 1 – 3 cancel the skip for. CH/PAGE df Preset channel selection Display of information such as the...

  • Page 51: Network Contents

    Network contents Listening to internet radio Internet radio refers to radio broadcasts distributed over the Internet. Listening to internet radio to select the item you want to play, then Internet radio stations from around the world can be received. press ENTER Prepare for playback.
  • Page 52 Listening to internet radio n Adjusting the sound quality (Restorer) Operations available through the OPTION button n Playing the last played Internet radio station Make this setting at “Restorer” (vpage 105) in the menu. This unit memorizes the last played Internet radio station. If you OPTION Press the button to display a menu of functions that can be...
  • Page 53 Listening to internet radio n Using vTuner to add Internet radio stations to n Internet radio operation buttons Select the radio station of your choice from the list, favorites and then click the Add to Favorites icon. Operation buttons Function There are many Internet radio stations in the world, and this unit The screen that lets you create a favorite group is displayed.

  • Page 54: Playing Back Files Stored On A Pc And Nas

    Playing back files stored on a PC and NAS This unit can play back music files and playlists (m3u, wpl) stored on a PC and on Network Attached Storage (NAS) that supports DLNA. Important information • The network audio playback function of this unit connects to the server using technologies shown below. GSpecifications of supported filesH • Windows Media Player Network Sharing Service Sampling frequency...
  • Page 55 Playing back files stored on a PC and NAS Applying media sharing settings When using Windows Media Player 12 When using Windows Media Player 11 (Windows 7) Here, we apply the settings to share music files stored on a PC and Start up Windows Media Player 11 on the PC.
  • Page 56 Playing back files stored on a PC and NAS Playing back files stored on a PC and NAS n Adjusting the sound quality (Restorer) Make this setting at “Restorer” (vpage 105) in the menu. • When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file Use this procedure to play music files, image files or playlists.
  • Page 57 Playing back files stored on a PC and NAS Operations available through the OPTION button n Media server operation buttons OPTION Press the button to display a menu of functions that can be Operation buttons Function used on the TV screen. Select the function you want to use from this FAVORITE Add/call up favorites menu.

  • Page 58: Using Online Services

    To listen to Pandora you will need a free Pandora account. If you do not have a Pandora account, you can create one at www.pandora.com or from the Pandora smartphone application. It is necessary to associate this machine with a Pandora account by visiting http://www.pandora.com/denon from your PC.
  • Page 59 Using online services Viewing photographs on the Flickr site n Going back to the previous screen to select “Add Flickr Contact”, then press BACK Press ENTER You can view photographs shared by particular users, or all of the photographs shared on Flickr. Operations available through the OPTION button Flickr [1/2]...
  • Page 60 Using online services n Viewing all photographs on Flickr n Flickr operation buttons to select “All Content”, then press ENTER Operation buttons Function CH/PAGE df Page search Display of information such as the INFO source name, volume, and sound mode Flickr [1/2] name...
  • Page 61 When “Cancel input?” is displayed, I am new to Pandora ENTER select “Yes”, then press Please go to http://www.pandora.com/denon and follow the instructions there to create a new account. Your activation code is : zzzzzz Cancel...
  • Page 62 Using online services n Creating a new station n Listening to an existing station to select “Search by Artist” or “Search by You can create up to 100 radio stations. ENTER Track”, then press and select the radio station to select “New Station”, then press ENTER You can search and display a list by track or artist.
  • Page 63 Using online services n Giving Feedback and Managing Stations n Pandora operation buttons NOTE You can personalize your stations by providing feedback. • You can Skip up to 6 Tracks that are being played back within 1 hour. Operation buttons Function • You can create up to 100 Stations (radio stations).
  • Page 64 Using online services Listening to SiriusXM Internet Radio n Going back to the previous screen Select “Sign in”, then press ENTER BACK Press Over 120 channels of the SiriusXM programming you love, including commercial-free music plus sports, talk, news and entertainment. Listen anywhere on your computer or smartphone.
  • Page 65 Using online services n Sign out n SiriusXM operation buttons Disassociate this unit from your SiriusXM account. Operation buttons Function While the SiriusXM top menu is displayed, press CH/PAGE df Page search BACK Display of information such as the INFO source name, volume, and sound mode When the popup menu appears, use to select...

  • Page 66: Convenient Functions

    Convenient functions Here, we explain how to use convenient functions for NETWORK Searching content with keywords n Playing back a search result content sources and USB sources. The source names under the titles of each function’s description are sources that allow use of these functions. (Text Search) to select the content you ENTER...
  • Page 67 Convenient functions Performing repeat playback (Repeat) Performing random playback (Random) The random playback randomly selects a track to play back from all Media Server Media Server tracks every time a track ends. Therefore, the same track may be played back consecutively. OPTION OPTION While content is playing, press...
  • Page 68 Convenient functions Favorites function Playing back content added in “Favorite Memory” FAVORITE STATION Contents that can be added to the button differ NETWORK There are two ways to add content to favorites: Press depending on the input source. q Add to favorites from the Option menu FAVORITE STATION w Add to the button...
  • Page 69 Convenient functions n Deleting content added to favorites Playing back music and a favorite picture Playing back still images in sequential (Remove Favorites) at the same time (Picture View) order (Slideshow) Press NETWORK You can play back still image (JPEG) files stored on a USB memory Internet Radio Media Server device or media server and pictures on Flickr website as a slide show.

  • Page 70: Airplay Function

    My Computer this unit from the list. This Computer • For details, see your device’s manual. DENON AVR-2313CI Startup iPhone, iPod touch, or iPad music or iPod AirPlay Device app. is displayed on the iPhone, iPod touch or iPad screen.
  • Page 71 AirPlay function n Perform iTunes playback operations with the remote control unit of this unit • is displayed on the menu screen while With this unit’s remote control unit, you can perform iTunes song AirPlay is being operated. play, pause, and auto search (cue) operations. • Source input will...

  • Page 72: Selecting A Listening Mode (Sound Mode)

    Selecting a listening mode (Sound Mode) This unit allows you to enjoy various kinds of surround and stereo Selecting a listening mode playbacks. Multi-channel audio formats are adopted by many of the contents Play the selected device (vpage 33 – 61). Direct playback including Blu-ray disc and DVD as well as digital broadcasting and Internet-delivered movies and music.
  • Page 73 Selecting a listening mode n Listening mode MOVIE MUSIC GAME PURE • The following listening modes can be selected using the , and buttons. • Adjust the sound field effect with the menu “Surround Parameter” (vpage 103) to enjoy your favorite sound mode. z1 2-channel also includes analog input.
  • Page 74 Selecting a listening mode z1 2-channel also includes analog input. Operation Operation Input signal Listening mode Input signal Listening mode z2 This mode plays back 2-channel source in 5.1 or 7.1-channel button button playback. It cannot be selected when headphones are used, or STEREO DTS-HD HI RES / when only front speakers are used.
  • Page 75 Selecting a listening mode Views on the TV screen or display Operation Operation Input signal Listening mode Input signal Listening mode button button STEREO DIRECT DOLBY PLgx Game + PL z DVD PURE DIRECT DOLBY PLg Game z1 2-channel also includes analog input. DOLBY PLg Game A-DSX 2-channel z2 This mode plays back 2-channel source in 5.1 or 7.1-channel...
  • Page 76 Selecting a listening mode n Description of listening mode types Dolby listening mode DTS listening mode Listening mode type Description Listening mode type Description DOLBY PLgx This mode can be selected when a Dolby Pro Logic gx decoder is used to DTS NEO:6 This mode can be selected when a DTS NEO:6 decoder is used to play back 2-channel source in 6.1/7.1-channel surround sound including the surround...
  • Page 77 Selecting a listening mode Audyssey DSX listening mode STEREO listening mode Listening mode type Description Listening mode type Description Audyssey DSX This mode creates playback for the new channels (front wide or front height) in STEREO This is the mode for playing in stereo. The tone can be adjusted. (A-DSX) 5.1-channel systems.

  • Page 78: Advanced Version

    Advanced version Advanced version Here, we explain functions and operations that let you make better use of this unit. F Installation/connection/setup of speakers (Advanced) vpage 76 F Playback (Advanced operation) vpage 89 F Playback in ZONE2 (Separate room) vpage 95 F How to make detailed settings vpage 97...

  • Page 79: Installation/Connection/Setup Of Speakers (Advanced)

    Installation/connection/setup of speakers (Advanced) Speaker installation Procedure for speaker settings • Determine the speaker system depending on the number of speakers When 7.1ch speakers are installed using surround Speaker installation you are using and install each speaker and subwoofer in the room. back speakers Here, we explain how to install the speakers using a typical example.
  • Page 80 Speaker installation When 7.1ch speakers are installed using front When 7.1ch speakers are installed using front wide When 5.1ch speakers are installed height speakers speakers When using Dolby Pro Logic gz or Audyssey DSX ® , install front height When using Audyssey DSX ® , install front wide speakers. speakers.

  • Page 81: Speaker Connection

    Speaker connection Here, we connect the speakers in the room to this unit. Connecting the speaker cables This section explains how to connect them using a typical example. Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to this unit, and be sure to interconnect the channels and polarities correctly.
  • Page 82 Speaker connection Connecting 7.1-channel speakers using surround back speakers The illustration on the right shows a connection example for performing 7.1-channel playback using the surround back speakers. To perform 7.1-channel playback using the surround back speakers, set “Assign Mode” to “Surround Back”...
  • Page 83 Speaker connection Connecting 7.1-channel speakers using front height speakers The illustration on the right shows a connection example for performing 7.1-channel playback using the front height speakers. To perform 7.1-channel playback using the front height speaker, set “Assign Mode” to “Front Height” in steps 3 to 5 for “Set up “Amp Assign””...
  • Page 84 Speaker connection Connecting 7.1-channel speakers using front wide speakers The illustration on the right shows a connection example for performing 7.1-channel playback using the front wide speakers. To perform 7.1-channel playback using the front wide speaker, set “Assign Mode” to “Front Wide” in steps 3 to 5 for “Set up “Amp Assign””...
  • Page 85 Speaker connection Connecting 6.1-channel speakers using one surround back speaker If using only one surround back speaker, connect to the “L” side of the SURROUND BACK terminal. For speaker settings in this case, see “When 6.1ch speakers are installed” (vpage 77). To perform 6.1-channel playback using the surround back speaker, set “Assign Mode”...
  • Page 86 Speaker connection Connecting 5.1-channel speakers To perform 5.1-channel playback, set “Assign Mode” to “Surround Back” in steps 3 to 5 for “Set up “Amp Assign”” (vpage 87). Cables used for connections Audio cable (sold separately) Speaker cable Subwoofer cable NOTE • For speaker cable connections, see page 78. • For speaker impedance , see page 78.
  • Page 87 Speaker connection Connecting front A/B speakers You can connect a second set of speakers to this unit and use them for playback. In this case, set “Assign Mode” to “Front B” in steps 3 to 5 for “Set up “Amp Assign”” (vpage 87). Cables used for connections Audio cable (sold separately) Speaker...
  • Page 88 Speaker connection Connecting 2.1-channel speakers Cables used for connections Audio cable (sold separately) Speaker cable Subwoofer cable NOTE • For speaker cable connections, see page 78. • For speaker impedance , see page 78. n For connecting two subwoofers Two subwoofers can be connected to this unit. The same signal is output from each subwoofer terminal.
  • Page 89 Speaker connection Connecting front speakers with a bi-amp connection • You cannot use surround back speakers in a bi-amp connection. Use front speakers that support a bi-amp connection and connect the speakers to the FRONT speaker terminals and the SURROUND BACK speaker terminals.

  • Page 90: Set Up Speakers

    Set up speakers around items indicate the settings. First install and connect the speakers to this unit. Before Audyssey ® Setup measurement, the settings shown below can be made. • Changing the amplifier assignment (Amp Assign) The signal output from the SURROUND BACK speaker terminal of this unit can be switched to match your speaker environment (vpage 87 “Set up “Amp Assign””).
  • Page 91 Set up speakers to select the to select a front speaker, and then press Set up “Channel Select” ENTER configuration of the connected to select “Channel Select”, and then press speakers, and then press Select this to use front speaker A. ENTER ENTER Select this to use front speaker B.

  • Page 92: Playback (Advanced Operation)

    Playback (Advanced operation) HDMI control function Setup (vpage 25) If you connect the unit and an HDMI control function compatible TV or n Setting procedure player with an HDMI cable and then enable the HDMI control function Playback (Basic operation) (vpage 32) setting on each device, the devices will be able to control each other.

  • Page 93: Sleep Timer Function

    HDMI control function Sleep timer function NOTE • You can have the power automatically switched to standby once a • When “HDMI Control” is set to “On”, it consumes more standby set time has elapsed. This is convenient for viewing and listening power.

  • Page 94: Quick Select Function

    Quick select function You can save settings such as the input source selection, volume n Changing the settings QUICK SELECT 1 – 4 level, and sound mode at the buttons. QUICK SELECT You can simply press one of the set buttons for Set the items below to the settings you want to save.

  • Page 95: Rec Out Mode

    REC OUT mode • When using the audio/video recording connectors (MEDIA PLAYER outputs), you can record the audio or video from a different program source while listening to the currently played track. ZONE2 / REC SOURCE • To cancel, press until “ZONE2 SOURCE” is • For the connection method, see “Connecting a media player”...

  • Page 96: Web Control Function

    GExample 1H MAIN ZONE control screen • This unit and the PC need to be connected to the network properly DENON AVR-2313CI For example, if the IP address of this unit is “192.168.100.19”, (vpage  23 “Connecting to a home network (LAN)”) in order to...

  • Page 97: Various Memory Functions

    Web control function Various memory functions GExample 2H Setup menu screen GExample 4H Network audio operating screen Personal memory plus function VIDEO (MAIN ZONE) NETWORK AUDIO PICTURE ADJUST ZONE CONTROL This function sets the settings (input mode, sound mode, HDMI output Contrast VIDEO NETWORK...

  • Page 98: Playback In Zone2 (Separate Room)

    Playback in ZONE2 (Separate room) w Zone playback by audio output (PRE OUT) • You can operate this unit so as to enjoy audio in a room (ZONE2) other than the MAIN ZONE (room where the unit is located). • You can simultaneously play back the same source in both the MAIN ZONE and ZONE2. You can also n Audio connections (ZONE2) play back separate sources in the MAIN ZONE and ZONE2.

  • Page 99: Playback

    Playback Sleep timer function ZONE2 • This is convenient for viewing and listening while going to sleep in Press to switch the zone Adjusting the volume ZONE2. mode to the ZONE2. • The sleep timer function can be set by zone. VOLUME df to adjust the volume.

  • Page 100: How To Make Detailed Settings

    Make settings for wired LAN. Settings Video Volume Display Sets where to display the master volume level. Use when receiving maintenance from a DENON Maintenance Mode service engineer or custom installer. Info Display Displays status of operation temporarily when the sound mode is changed, or input source is switched.
  • Page 101 Menu map Setting items Detailed items Description Page Language Sets the language for display the menu on the TV screen. Makes settings for audio playback in a ZONE2 ZONE2 Setup system. General Zone Rename Change the display title of each zone to one you prefer.

  • Page 102: Examples Of Menu Screen Displays

    Examples of menu screen displays Typical examples are described below. GExample 1H GExample 2H Audyssey ® Setup screen (with illustration) Menu selection screen (Top menu) Audyssey Setup Setup Menu Audio Your AV receiver can automatically measure the acoustics of your room then optimize your speakers using the included Video microphone.

  • Page 103: Examples Of Menu And Front Display

    Examples of menu and front display Below we describe typical examples of displays on the TV screen and on the set’s display window. Menu display Front display Description Top menu display SETUP q Press to display the menu screen. Setup Menu w TV screen: Displays the selected line.

  • Page 104: Inputting Characters

    Inputting characters Keyboard screen On this unit, you can change the name displayed on the following n Input method screens to the names that you prefer. Display the screen for inputting • Text Search (vpage 63) Select a character on the TV screen to input characters. • Preset Name (vpage 45) characters (vpage 97...

  • Page 105: Audio

    Audio Make audio-related settings. Items that can be set with the “Audio” procedure Menu operation Surround Parameter (vpage 103) MAIN Press to switch the zone mode to the MAIN ZONE. Tone (vpage 105) MAIN lights. SETUP Press Dialogue Level (vpage 105) The menu is displayed on the TV screen. to select the menu to be set or operated.
  • Page 106 Audio Surround Parameter Setting items Setting details Default settings are underlined. Center Image 0.0 – 1.0 (0.3) You can adjust the surround audio sound field effects to match your preferences. Distributes the dialogue The smaller the value, the more dialogue is concentrated on the center The items (parameters) that can be adjusted depend on the signal being input and the currently set output from the center channel.
  • Page 107 Audio Setting items Setting details Setting items Setting details Delay Time 0ms – 300ms (30ms) Set Defaults Yes : Reset to the defaults. Adjust the audio delay time The “Surround Parameter” No : Do not reset to the defaults. against video to extend the settings are returned to the When you select “Set Defaults”...
  • Page 108 Audio Tone Subwoofer Level Default settings are underlined. Default settings are underlined. Adjust the tonal quality of the sound. Sets the subwoofer on/off and its output level. Setting items Setting details Setting items Setting details Tone Control On : Allow tone adjustment (bass, treble). Subwoofer On : The subwoofer is used.
  • Page 109 Audio Audio Delay Audyssey Default settings are underlined. Default settings are underlined. Set Audyssey MultEQ ® XT, Audyssey Dynamic EQ ® and Audyssey Dynamic Volume ® . These can be While viewing video, manually adjust the time to delay audio output. selected after Audyssey ®...
  • Page 110 Audio Setting items Setting details Setting items Setting details Audyssey DSX ® On : Turn Audyssey DSX ® processing for height or wide expansion. Dynamic EQ On : Use Dynamic EQ. Off : Do not set Audyssey DSX ® . Solve the problem of Off : Do not use Dynamic EQ.
  • Page 111 Audio Graphic EQ Default settings are underlined. Use the graphic equalizer to adjust the tone of each speaker. “Graphic EQ” can be set when “MultEQ ® XT” setting (vpage 106) is “Graphic EQ”. Setting items Setting details Speaker Selection All : Adjust the tone of all speakers together. Select whether to adjust Left/Right : Adjust the tone of left and right speakers together.

  • Page 112: Video

    Video Make video-related settings. Items that can be set with the “Video” procedure Menu operation Picture Adjust (vpage 110) MAIN Press to switch the zone mode to the MAIN ZONE. MAIN lights. HDMI Setup (vpage 110) Press SETUP The menu is displayed on the TV screen. Output Settings (vpage 111) to select the menu to be set or operated.
  • Page 113 Video Picture Adjust HDMI Setup Default settings are underlined. Default settings are underlined. Picture quality can be adjusted. Make settings for HDMI video/audio output. We recommend leaving the settings unchanged from the default settings. First adjust the display image Setting items Setting details quality on your TV, and use this menu only when you want to make fine adjustments.
  • Page 114 Video Output Settings Setting items Setting details Default settings are underlined. HDMI Control On : Use HDMI control function. Makes screen-related settings. You can link operations with Off : Do not use HDMI control function. z “Blu-ray”, “GAME”, “CD” or “TV AUDIO” can be set when “HDMI” or “COMP” (vpage 116) has devices connected to HDMI been assigned.
  • Page 115 Video Setting items Setting details Setting items Setting details i/p Scaler Analog : Use i/p scaler function for analog video signal. Aspect Ratio 16:9 : Output at 16:9 aspect ratio. Convert the input source Analog & HDMI : Use i/p scaler function for analog and HDMI video signal. Set the aspect ratio for the 4:3 : Output at 4:3 aspect ratio.
  • Page 116 Video Info Display Default settings are underlined. Displays status of operation temporarily when the sound mode is changed, or input source is switched. You can set whether or not to show each of these status displays. Setting items Setting details On-screen Info On : Turn display on.

  • Page 117: Inputs

    Inputs Perform settings related to input source playback. Items that can be set with the “Inputs” procedure • You do not have to change the settings to use the unit. Make settings when needed. Menu operation Input Assign (vpage 115) Press MAIN to switch the zone mode to the MAIN ZONE.
  • Page 118 Inputs Input Assign Setting items Setting details HDMI HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4 / HDMI 5 / HDMI 6 : Assign an HDMI This unit has certain input sources such as “CBL/SAT” assigned to audio and video connectors by default. Set this to change the HDMI input connector to the selected input source.
  • Page 119 Inputs Setting items Setting details Setting items Setting details DIGITAL COAX (COAXIAL) 1 / COAX (COAXIAL) 2 / OPT (OPTICAL) 1 / Set Defaults Yes : Reset to the defaults. Set this to change the digital OPT (OPTICAL) 2 : Assign a digital input connector to the selected input The input source name No : Do not reset to the defaults.
  • Page 120 Inputs Hide Sources Input Select Default settings are underlined. Default settings are underlined. Remove from the display input sources that are not used. Set the audio input mode and decode mode of each input source. The input modes available for selection may vary depending on the input source. Setting details Setting items Setting details...
  • Page 121 Inputs Video Source Default settings are underlined. Video of another input source is played back combined with the playing audio. Setting details Default : Play the picture and sound of the input source. Blu-ray / DVD / TV AUDIO / CBL/SAT / GAME / MEDIA PLAYER / AUX / CD : Select video input source to view.

  • Page 122: Speakers

    Speakers Set when changing Audyssey ® Setup settings. Items that can be set with the “Speakers” procedure • If you change the speaker settings after performing Audyssey ® Setup, it will not be possible to set Audyssey MultEQ ® XT, Audyssey Dynamic EQ ® and Audyssey Dynamic Volume ® (vpage 106). • Can be used without changing the settings.
  • Page 123 Speakers Manual Setup Setting items Setting details Default settings are underlined. Speaker Config. Center : Set the presence and size of the center speaker. Perform when setting the speakers manually or when changing settings made in Audyssey ® Setup. (Continued) • Large : Use a large speaker that can adequately play back low • If you change the speaker settings after performing Audyssey ®...
  • Page 124 Speakers Setting items Setting details Setting items Setting details Speaker Config. Surr. Back : Set the presence, size and number of surround back speakers. Bass Subwoofer Mode : Select low range signals to be reproduced by (Continued) • Large : Use a large speaker that can adequately play back low Set subwoofer and LFE subwoofer.
  • Page 125 Speakers Setting items Setting details Setting items Setting details Distances Unit : Set the unit of distance. Levels Test Tone Start : Output test tone. Set distance from listening • Feet / Meters Set the volume of the test • Front L / F. Height L / Center / F. Height R / Front R / Front Wide R / position to speakers.
  • Page 126 Speakers Setting items Setting details Crossovers Crossover : Set the crossover frequency. Set the maximum frequency • 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / of the bass signal output 250Hz / Individual : Set the crossover frequency for all speakers. See the from each channel to speaker manual for information concerning speaker crossover frequency.

  • Page 127: Network

    Network To use this unit by connecting it to a home network (LAN), you must configure network settings. Items that can be set with the “Network” procedure If you set up your home network (LAN) via DHCP, set “DHCP” to “On” (use the default setting). This allows this unit to use your home network (LAN).
  • Page 128 Setting details Friendly Name / DHCP=On or Off / IP Address / MAC Address Edit Name • The default Friendly Name on first use is “DENON AVR-2313CI”. MAC Address is required to make a vTuner account. Edit Friendly Name. • Up to 63 characters can be input.
  • Page 129 Network Settings Setting details Default settings are underlined. Make settings for wired LAN. • If you are using a broadband router (DHCP function), there is no need to make the settings at “IP Only set “Settings” when connecting to a network without a DHCP function. Address”...
  • Page 130 Make the proxy settings only when you connect to the Internet via a proxy server that is on your Setting details internal network or provided by your provider, etc. NOTE Network/Settings Network Only use this function if so instructed by a DENON serviceperson or installer. DHCP Information IP Address 192.168.000.001 IP Control Subnet Mask 255.255.255.000...

  • Page 131: General

    General Make various other settings. Items that can be set with the “General” procedure Menu operation Language (vpage 129) Press MAIN to switch the zone mode to the MAIN ZONE. MAIN lights. ZONE2 Setup (vpage 129) Press SETUP The menu is displayed on the TV screen. Zone Rename (vpage 129) to select the menu to be set or operated.
  • Page 132 General Language Setting items Setting details Default settings are underlined. Volume Level Variable : Volume adjustment is enabled by main unit and remote control Set the language for display on the menu screen. Set the volume output level. unit. –40dB (40) : Fix volume at –40 dB. Set when adjusting volume by external Setting details amplifier.
  • Page 133 General Quick Select Names Auto Standby Default settings are underlined. Change the “Quick Select” display title to one you prefer. When you do not perform any operation on this unit with no audio or video input for a specified time, this unit automatically enters the standby mode.
  • Page 134 General Information INFO Press to display current source name, volume, sound mode name, and other information at the Show information about receiver settings, input signals, etc. bottom of the screen. Items Setting details Examples of screen display Sound Mode : The currently set surround mode. Audio • Status display screen Show information about...
  • Page 135 General Firmware Setting items Setting details Default settings are underlined. Notifications Update : The notification message is displayed for about 20 seconds when Set whether or not to check for firmware update, update the firmware, and display update and upgrade Displays a notification the power is turned on.
  • Page 136 “Update retry” appears on the display and update restarts from the point at which update failed. If the error continues despite this, check the network environment. • Information regarding the “Update” function and “Add New Feature” will be announced on the DENON web site each time related plans are defined.

  • Page 137: Informations

    Informations Informations Here, we list various information related to this unit. Please refer to this information as needed. F Part names and functions vpage 135 F Other information vpage 140 F Troubleshooting vpage 152 F Specifications vpage 157 F Index vpage 158...

  • Page 138: Part Names And Functions

    Part names and functions Front panel For buttons not explained here, see the page indicated in parentheses ( ). Q4 Q5 Q6 Q7 Power operation button (X) ··················································· (32) AUX-HDMI connector ····························································· (10) Display ···················································································· (136) Turn power to this unit on and off (standby). iPod/USB port ·········································································...

  • Page 139: Display

    Display Information display Sleep timer indicator Decoder indicators The input source name, sound mode, setting values and other This lights when the sleep mode is selected (vpage 90, 96). These light when Dolby or DTS signals are input or when the Dolby information are displayed here.

  • Page 140: Rear Panel

    Rear panel See the page indicated in parentheses ( ). FM antenna terminal (ANTENNA) ········································· (21) AC inlet (AC IN) ········································································ (24) NOTE HDMI connectors ································································· (9, 10) Analog audio connectors Do not touch the inner pins of the connectors on the rear panel. (AUDIO) ····························································...

  • Page 141: Remote Control Unit

    Remote control unit For buttons not explained here, see the page indicated in parentheses ( ). ZONE SELECT buttons (MAIN, ZONE2) ····································· (26, 96) Input source select buttons ················· (32, 96) FAVORITE STATION buttons (1 – 3) ··························································· (65) Channel/page search buttons (CH/PAGE df) ···························...
  • Page 142 Remote control unit Inserting the batteries Operating range of the remote control unit Specifying the zone used with the remote control unit Point the remote control unit at the remote sensor when operating it. q Remove the rear lid in the w Load the two batteries properly direction of the arrow and as indicated by the marks in the...

  • Page 143: Other Information

    Other information Trademark information n Trademark information (vpage 140) This product uses the following technologies (Random order): n Surround (vpage 141) n Relationship between video signals and monitor output (vpage 147) “Made for iPod” and “Made for iPhone” mean that an electronic n Explanation of terms (vpage 149) accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to Manufactured under license from Audyssey Laboratories™.

  • Page 144: Surround

    Surround This unit is equipped with a digital signal processing circuit that lets you play program sources in the sound mode to achieve the same sense of presence as in a movie theater. Sound modes and surround parameters This table shows the speakers that can be used in each sound mode and the surround parameters adjustable in each sound mode. Symbols in the table S This indicates the audio output channels or surround parameters that can be set.
  • Page 145 Surround z1 During playback in PURE DIRECT mode, the surround Surround Parameter (vpage 103) parameters are the same as in DIRECT mode. Dynamic Low Frequency NEO:6 Music PRO LOGIC g/gx Music mode only Height Gain Sound Mode (vpage 69) z15 This item can be selected when a Dolby Digital or DTS Compression Effects Delay Time...
  • Page 146 Surround z1 During playback in PURE DIRECT mode, the surround parameters are the Audyssey (vpage 106) Tone Restorer Audyssey DSX ® Subwoofer same as in DIRECT mode. Dynamic EQ Dynamic Volume MultEQ ® XT z19 Sound Mode (vpage 69) (vpage 105) z5 Only when “Subwoofer Mode” is set to “LFE+Main” (vpage ...
  • Page 147 Surround n Types of input signals, and corresponding sound modes This table shows the input signal that can be played in each sound mode. Check the audio signal of the input source then select the sound mode. Symbols in the table F This indicates the default sound mode.
  • Page 148 Surround Input signal types and formats DTS-HD DOLBY DOLBY DIGITAL Super Audio CD DTS-HD DOLBY Sound Mode (vpage 69) NOTE DTS-HD DTS ES DTS ES DOLBY DOLBY DOLBY DOLBY ANALOG High DOLBY DIGITAL EX Master DSCRT MTRX DIGITAL DIGITAL EX DIGITAL DIGITAL (multi ch) (2ch)
  • Page 149 Surround Input signal types and formats DTS-HD DOLBY DOLBY DIGITAL Super Audio CD DTS-HD Sound Mode (vpage 69) NOTE DTS-HD DTS ES DTS ES DOLBY DOLBY DOLBY DIGITAL DOLBY DOLBY ANALOG High DOLBY Master DSCRT MTRX DTS 96/24 DIGITAL DIGITAL EX DIGITAL DIGITAL (multi ch)

  • Page 150: Relationship Between Video Signals And Monitor Output

    Relationship between video signals and monitor output MAIN ZONE MONITOR OUT Input connector Output connector Menu displayed Video Conversion HDMI COMPONENT VIDEO HDMI COMPONENT VIDEO HDMI COMPONENT VIDEO Only the menu is displayed S <VIDEO> S <VIDEO> S (VIDEO) A (VIDEO) S <COMPONENT>...
  • Page 151 Relationship between video signals and monitor output Video signal resolution conversion table When “Video Conversion” (vpage 111) is set to “On”, “i/p Scaler” (vpage 112) is set to “Analog”, “Analog & HDMI” or “HDMI” are set, the resolution of the input video signal can be converted to a different resolution for output (vpage 6 “Converting input video signals for output (Video conversion function)”).

  • Page 152: Explanation Of Terms

    Explanation of terms Audyssey MultEQ ® XT Dolby Digital EX Dolby Pro Logic gz MultEQ ® XT is a room equalization solution Dolby Digital EX is a 6.1-channel surround format Dolby Pro Logic gz introduces a new dimension to Adobe RGB color, Adobe YCC601 color that calibrates any audio system so that it can proposed by Dolby Laboratories that allows users Home Entertainment through the addition of a pair...
  • Page 153 Explanation of terms Downmix DTS-HD This function converts the number of channels of This audio technology provides higher sound quality FLAC HDCP surround audio to less number of channels and and enhanced functionality than the conventional FLAC stands for Free lossless Audio Codec, and is a When transmitting digital signals between devices, plays back.
  • Page 154 Explanation of terms Progressive (sequential scanning) Windows Media DRM x.v.Color This is a scanning system of video signal that This is a copyright protection technology developed This function lets HDTVs display colors more displays 1 frame of video as one image. Compared by Microsoft.

  • Page 155: Troubleshooting

    After turning on the • This unit amplifier circuit has failed. Turn off the power and please – power, the power contact the DENON service adviser. indicator is blinking red in intervals of approximately 0.5 seconds. Set does not operate • Reset the microprocessor.
  • Page 156 GAudioH Symptom Cause/Solution Page Symptom Cause/Solution Page No sound is • Check the subwoofer connections. 79,  0,  1,  Audio is not output. • Check the connections for all devices. 9,  0,  3,  produced from 83,84,  5,  subwoofer. • Turn on the subwoofer’s power. –...
  • Page 157 – • Media sharing settings are not correct. Change media sharing This is not a malfunction. DENON does not guarantee that all USB settings so that the unit can access the folders on your computer. memory devices will operate or receive power.
  • Page 158 To remedy this, change the network environment, address” or (Password is not displayed.) intermittent breaks e.g. shorten the distance to the wireless LAN access point. “Password” is http://www.pandora.com/denon or AirPlay does not • Update the iPhone/iPod touch/iPad application or iTunes to the – displayed.) function.

  • Page 159: Resetting The Microprocessor

    Resetting the microprocessor Perform this procedure if the display is abnormal or if operations cannot be performed. When the microprocessor is reset, all the settings are reset to their default values. TUNER PRESET CH – TUNER PRESET CH + Turn off the power using TUNER PRESET CH + TUNER PRESET Press...

  • Page 160: Specifications

    Specifications n Audio section n Tuner section [FM] (Note: μV at 75 Ω, 0 dBf = 1 x 10 –15 W) • Power amplifier Rated output: Front: Receiving Range: 87.5 MHz – 107.9 MHz 105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) Usable Sensitivity: 1.2 μV (12.8 dBf) 135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
  • Page 161 Index Center Width ···················································· 103 Downmix ·························································· 150 Hide Sources ···················································· 117 Channel ···························································· 129 DTS ·································································· 150 High Pass Filter ················································ 129 v Numerics Characters ························································ 101 DTS 96/24 ················································ 73, 150 Hue ··································································· 110 Cinema EQ ······················································· 103 DTS Digital Surround ·····································...
  • Page 162 On-screen Info ················································· 113 Random ························································ 36, 64 Text Search ························································ 63 Operation Mode ················································· 35 Rch Level ························································· 129 Tone ································································· 105 Output Settings ················································ 111 Rear panel ························································ 137 Tone Control ····················································· 105 REC OUT mode ·················································· 92 Trademark ························································...
  • Page 163 Dimensions Unit : in. (mm) 17 3/32 (434.0) 2 23/64 (60.0) 1 49/64 1 49/64 (45.0) 13 35/64 (344.0) (45.0) Weight : 24 lbs (10.9 kg)
  • Page 164 D&M Holdings Inc. 3520 10081 00AD...

Table of Contents

Save PDF
