613CCB Contemporary Cast Front Black
Note: This kit must be installed or serviced by a qualified installer, service agency or gas supplier.
These instructions are to be used in conjunction with the main installation instructions for the above
listed model.
WARNING: If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.

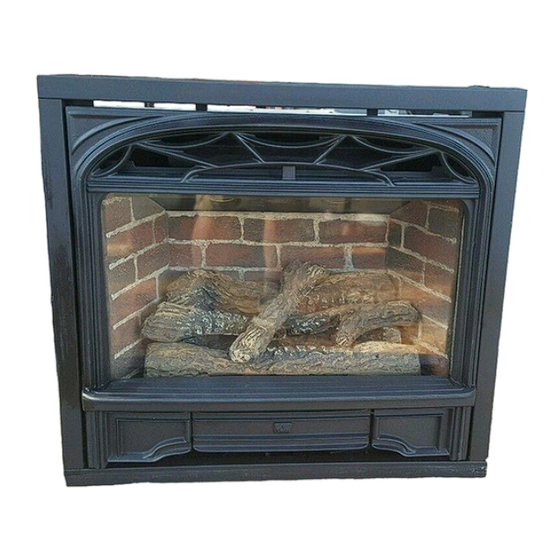

The 613CCB Contemporary Cast Front Black may be fitted to any Valor models 534 or 535 heaters, either at the
time the heater is installed or retrofitted afterwards (provided existing wall and hearth finish allow – see diagrams).
The installation of the Contemporary Cast Front has specific mantle clearances and framing dimensions described
below, which differ from those listed for other trims used with 534 and 535 heaters. Refer to the installation
manual packed with the heater for all other aspects of installation.
The 613CCB requires the installation of non-combustible material above the heater when fitted to the
535 model heater.
Kit Content
4001086/04
INSTALLATION INSTRUCTIONS
CSA approved for use only with
Valor Models 534 and 535 Heaters

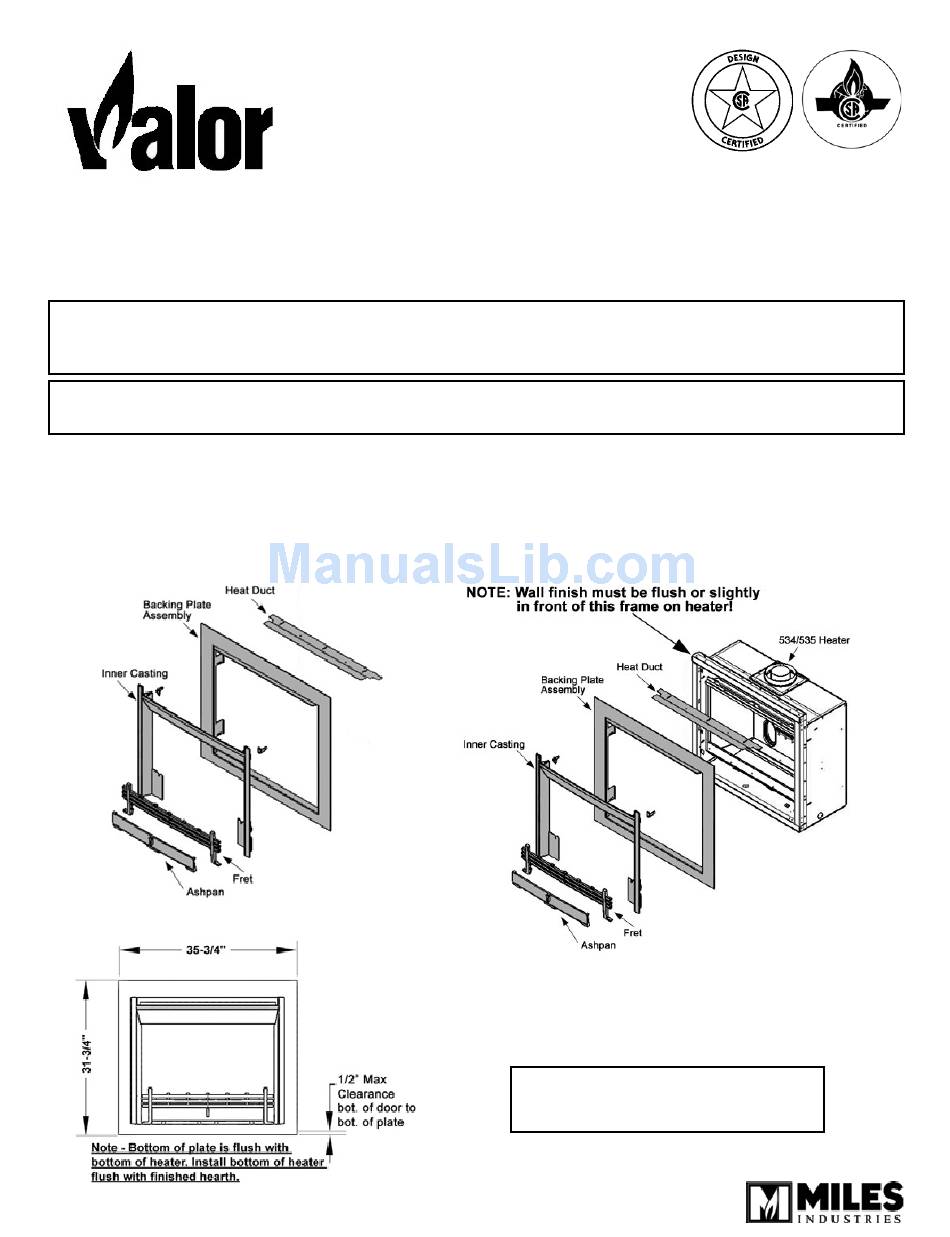

Assembly Overview
NOTE: This kit MUST be installed
at finish hearth height.
Advertisement
Table of Contents
Related Manuals for Valor 534
Summary of Contents for Valor 534
-
Page 1: Installation Instructions
The 613CCB Contemporary Cast Front Black may be fitted to any Valor models 534 or 535 heaters, either at the time the heater is installed or retrofitted afterwards (provided existing wall and hearth finish allow – see diagrams). -
Page 2: Installation
36” from floor material above to bottom 535 model only of header Angle Support 613 Backing Plate Lower limit of combustible wall finish on 534 31-1/4” from floor “B” Framing Cavity 31-3/4” 534/535 Black Frame • Approved for combustible floor under and in front of 29-3/4”... - Page 3 68 mm long Flange 31-1/4” from floor Backing Plate Top Backing Plate Flange 534/535 Black Frame There are 4 tabs on the inside of the heater’s black Heat duct must be adjusted to be flush frame; those are intended for mounting other trims.
-
Page 4: Repair Parts List
Repair Parts List Code Description Part Number Heat Duct 4001075AZ Backing Plate Assembly 4001085AZ Inner Casting 4000966 RH Hanging Bracket 4001089 LH Hanging Bracket 4000970 Fret Hanging Plate (2) 4000980 Ashpan Casting 4000972AZ Fret Casting 4000971AZ Hardware Kit 400106 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. -
Page 5: Manuel D'installation
Le kit 613CCB peut être installé avec les foyers Valor 534 ou 535 au moment de l’installation du foyer ou à une date ultérieure (à condition que la finition du mur et la base de foyer le permettent—voir les schémas aux pages suivantes). - Page 6 535 seulement poutre de tête Fer d’angle Plaque de soutien 613 Limite de la base de la finition combustible pour le foyer 534 79 cm (31-1/4”) du plancher “B” 81 cm (31-3/4”) Dimensions de l’âtre...
- Page 7 Adjustez le déflecteur de chaleur en le tirant jusqu’à ce qu’il soit aligné au rebord de la plaque de soutien. Serrez les vis du déflecteur. Coupe transversale du kit 613CCB-- Panneaud de gypse (534) vue du côté droit Panneau incombustible (535) Fer d’angle de 31-1/4”...
-
Page 8: Liste De Pièces
Liste de pièces Code Description No. de pièce Déflecteur de chaleur 4001075AZ Plaque de soutien 4001085AZ Cadre intérieur 4000966 Support de montage droit 4001089 Support de montage gauche 4000970 Support de base chantournée 4000980 Garde-cendres 4000972AZ Base chantournée 4000971AZ Quincaillerie 400106 Parce que notre politique vise l’amélioration et le développement continus, certains détails de la présente publication peuvent varier.
