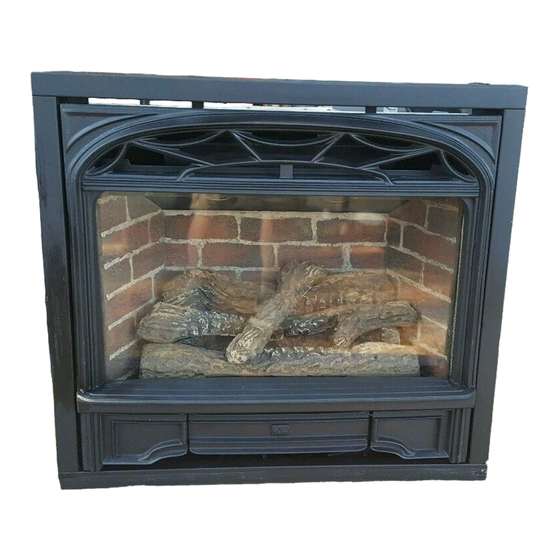

DIRECT VENT GAS FIREPLACE HEATER
WARNING: If the information in these instructions is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
-WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Massachusetts: the piping and the final gas
connection must be performed by a licensed
plumber or gas fitter in the State of
Massachusetts
Vous pouvez vous procurer un exemplaire en langue Française de cette brochure chez votre
MODEL 534 XAN (Natural Gas)
MODEL 534XAP (Propane)
Installation and Owner's Manual
Please read this manual before installing and operating this heater.
This manual should remain with the homeowner.
Manufactured by
MILES INDUSTRIES LTD.
British Columbia, Canada
marchand.
This appliance may be installed in an
aftermarket permanently located,
manufactured (mobile) home, where not
prohibited by local codes.
The appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
This appliance is a domestic room heating
appliance. It must not be used for any other
purpose such as drying clothes etc.
This appliance is suitable for installation in a bedroom
or bed sitting room.
4000307-01

Advertisement

Table of Contents
loading

Related Manuals for Valor 534 XAN

Summary of Contents for Valor 534 XAN

  • Page 1 DIRECT VENT GAS FIREPLACE HEATER MODEL 534 XAN (Natural Gas) MODEL 534XAP (Propane) Installation and Owner’s Manual Please read this manual before installing and operating this heater. This manual should remain with the homeowner. WARNING: If the information in these instructions is not...

  • Page 2: Table Of Contents

    7.9. Attaching to the Framing ................................20 INSTALLATIONS WITH HORIZONTAL TERMINATION – INSTALLING TO WALL ............21 8.1. Flat On Wall Installations With Valor #551DVK Terminal ....................21 8.2. Wall Opening ....................................22 8.3. Valor Terminal #551DVK - Preparing Wall Plates ........................22 8.4.

  • Page 3: Safety Information

    Children and adults should be alerted to the hazards accessible to any person. An approved Valor guard is of high surface temperatures and should stay away to available from your dealer.

  • Page 4: Options

    2.1. Appliance styles Kit# Standard metal front. Black – Kit #601SFB 551DVK Valor horizontal terminal kit provides up Kit #602CFB. Cast iron front. Black – to 26” (66cm) horizontal run. Complete One of the above kits must be used with each with wall plates and clearance shield installation.
  • Page 5 Mantle depth “A” 1” 2” 3” 4”-5” 6” 7” 8”–12” (25mm) (51mm) (76mm) (102mm- 127mm) (152mm) (178mm) (203mm-305mm) max. Mantle clearance “B” 7” 8” 9” 10” 11” 12” 14” (178mm) (203mm) (229mm) (254mm) (279mm) (305mm) (356mm) Figure 1 Major dimensions & clearances without optional trims (Shown with #601SFB Front) 3 sided trims 4 sided trims Figure 2 #601SFB Front with optional trims...

  • Page 6: General

    3. GENERAL 3.1. Approvals & codes These appliances are certified by C.S.A. for use in Canada and the USA. These appliances are for installation directly venting through an outside wall or through the roof. Model 534XAN is for use with natural gas. Model 534XAP is for use with propane.

  • Page 7: Location

    4. LOCATION 4.1. Framing The framing dimensions are shown in figure 4. • A non-combustible hearth is not necessary in front of this appliance. • Note that the unit is installed at the framing stage and fixed to framing using support angles (see figures 27 and 31).

  • Page 8: Rear Vent Connection, Vertical Vent Rise With Horizontal Rear Termination

    4.4. Rear Vent Connection, Vertical Vent Rise with Horizontal Rear Termination See figure 7. Can be used with either #551DVK standard vent kit or #984 Dura-vent terminal cap and accessories. Adapter #817VAK, two 90° vent elbows #990B and Dura- vent pipe lengths will be required. (See venting options section of this manual).

  • Page 9: Corner Location, Rear Vent Connection, Horizontal Vent Run Only

    4.6. Corner Location, Rear Vent Connection, Horizontal Vent Run Only See figure 8. Can be used with either #551DVK standard vent kit or #984 Dura-vent terminal cap and accessories. Adapter #817VAK and 45º Dura-vent elbow # 945B will be required. (See venting options section of this manual.) 4.7.

  • Page 10: Rear Vent Connection, Vertical Rise With Offset, Through The Roof Termination

    4.9. Rear Vent Connection, Vertical Rise with Offset, Through the Roof Termination See figure 11. For situations where offset is necessary in an attic to avoid obstructions or allow useful space. Adapter #817VAK, one 90º vent elbow #990B, two 45º vent elbows #945B, Dura-vent pipe lengths, a vertical vent terminal and roof flashing will be required.

  • Page 11: Top Vent Connection, Horizontal Rear Termination

    4.10. Top Vent Connection, Horizontal Rear Termination See figure 12. Can be used with either #551DVK standard vent kit or #984 Dura-vent terminal cap and accessories. Adapter #817VAK, one 90° vent elbow #990B and Dura-vent pipe lengths will be required. (See venting options section of this manual).

  • Page 12: Top Vent Connection, Horizontal Side Termination

    4.11. Top Vent Connection, Horizontal side termination The vent pipe dimensional requirements in section 4.10 apply. The minimum floor location is shown in figure 14. Can be used with either #551DVK standard vent kit or #984 Dura-vent terminal cap and accessories. Adapter #817VAK, one 90°...
  • Page 13 4.14. Top Vent Connection, Through the Roof Termination See figure 16. Adapter #817VAK, Dura-vent pipe lengths, a vertical vent terminal, and roof flashing will be required. Various other ceiling or roof items may be necessary depending on the particular installation (See venting options section of this manual).

  • Page 14: Vent Location

    Vent Location • The vent terminal must be located on an outside wall or through the roof. • This direct vent appliance is designed to operate when an undisturbed airflow hits the outside vent terminal from any direction. • The minimum clearances from this terminal that must be maintained when located on an outside wall are shown in figure 18.

  • Page 15: Supply Gas

    5. SUPPLY GAS Heater engine unit #534XAN is used with all natural gas installations. Heater engine unit #534XAP is used with all propane installations. The supply pressure must be between the limits shown in section 3.2 of this manual. The supply connection is ’’NPT.
  • Page 16 - 16 -...

  • Page 17: Appliance Preparation

    Fit the cover plate and seal (Removed from the rear) to the top vent opening with 12 screws. 7.4. # 817VAK Pipe Adapter Fitting If installing flat on wall with Valor terminal unit #551DVK ignore this stage. See figure 23.

  • Page 18: Top Heat Shield & Stand-Off Fitting

    Figure 24 Heat shield (Shown for top vent outlet) Figure 23 7.5. Top heat shield & Stand-off Fitting See figures 24 & 25. If installing appliance with top vent outlet remove the plate covering the vent hole in the top heat shield by unscrewing four screws. If installing with rear vent outlet, the plate must remain covering the hole.

  • Page 19: Support Angle Fitting

    7.6. Support Angle Fitting See figure 26 The distance from the wall angles to the front face of the heater case is adjustable between ” (10mm) and 1 ” (30mm) to allow for a range of wall finish material thickness (e.g. tile etc). Fit the top angle support to the case top with three screws.

  • Page 20: Attaching Rear Ceramic Support

    7.8. Attaching Rear Ceramic Support Fit the rear ceramic support to the firebox back panel with three screws. See figure 29. 7.9. Attaching to the Framing Place the heater in position in the framing. Secure the side support angles to the side studding through two holes each side with the woodscrews supplied.

  • Page 21: Installations With Horizontal Termination - Installing To Wall

    TO WALL See section 4 for full range of horizontal termination applications. 8.1. Flat On Wall Installations With Valor #551DVK Terminal Cut the vent terminal pipe unit to size. See figure 31. Important! The drain hole must be clearly outside the wall.

  • Page 22: Wall Opening

    8.3. Valor Terminal #551DVK - Preparing Wall Plates The wall plates are not used for 7” hole in non-combustible walls. Bend the wall shields and screw to the inside of the wall plates with 6 thread cutting screws per plate.

  • Page 23: Installations With Through The Roof Vertical Termination

    9. INSTALLATIONS WITH THROUGH THE ROOF VERTICAL TERMINATION • Check the roof pitch to determine which roof flashing will be needed - see vent accessories section 2.4. • The distance from the roof to the lowest terminal discharge opening (“H” in figure 35) depends on the roof pitch and must be in accordance with the Dura-vent instructions supplied with the termination unit.

  • Page 24: Remote Control Installation

    10. REMOTE CONTROL INSTALLATION Caution! Don’t connect the batteries to the remote control receiver until the wires are connected to the burner control unit, as short circuit could result in destruction of the electrical components. When installing the remote please refer to figures 37 and 38 below. •...

  • Page 25: Gas Supply Installation & Aeration Setting

    11. GAS SUPPLY INSTALLATION & AERATION SETTING 11.1. Gas Supply Installation • The gas supply pipe should enter the appliance case through the opening at the rear left side. The supply pipe should be connected to the appliance gas inlet pipe situated at the left side of the control unit. Supply line connection to the inlet pipe is ”NPT.

  • Page 26: Ceramic Fuel Bed Installation

    12. CERAMIC FUEL BED INSTALLATION 12.1. Ceramic Walls Installation Locate the ceramic rear wall in the channel at back of the firebox and flat against the back of the firebox. See figure 41. Locate the sidewalls against the sides of the firebox. Make sure that they are behind the raised edges of the burner module base at...

  • Page 27: Window Refitting & Checking

    13. WINDOW REFITTING & CHECKING Refit the window with the bottom three bolts. The bolts should be screwed in securely. Refit the chain to the top right corner of the window. Refit the top three bolts securing by turning them through 90º. Pull the top of the window forward and release to check that it opens slightly and returns in the event of a delayed ignition explosion.

  • Page 28: Front Installation

    15. FRONT INSTALLATION 15.1. Additional Optional 3 or 4 Sided Trims Slide a corner connection plate into the channels in the top trim and a side trim. Butt the two trims together. Fit four grub screws and tighten to secure the trims and corner plate.

  • Page 29: Owners Information

    Programming Time and Temperature You can set your Valor to come on before you waken and turn after you leave home and turn on again just before you come home and turn off after going to bed. You can leave it like this for the heating season.

  • Page 30: Cleaning

    16.2. Cleaning It will be necessary to clean the glass periodically. During startup, condensation, which is normal, forms on the inside of the glass and causes dust, lint etc. to cling to the glass surface. Initially paint, while curing, may deposit a slight film on the glass. We therefore recommend that, during the first few weeks of use, the glass is cleaned two or three times with non-abrasive common household cleaners and warm water.

  • Page 31: For Your Safety Read Before Lighting

    FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot, which must be lighted by hand. When lighting the pilot, follow these instructions exactly.

  • Page 32: Checks

    16.3. Checks • A periodic check of the pilot and burner flames should be made. Check after the fire has been on for at least 30 minutes. The pilot flame must cover the tip of the thermocouple probe. The main burner flame pattern will vary from appliance to appliance depending on the type of installation and climatic conditions.
