Homeowner's Manual
HORIZON
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
▪
DANGER
4009209-01
▪
▪
▪
▪
Installation and service must be
performed by a qualifi ed installer, service
agency or the gas supplier.
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
Direct Vent Gas Fireplaces
natural gas
propane gas 534JP
Do not touch any electrical switch; do
not use any phone in your building.
Leave the building immediately.
Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fi re department.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
534JN

Advertisement

Table of Contents
loading

Related Manuals for Valor HORIZON 534JN

Summary of Contents for Valor HORIZON 534JN

  • Page 1 Homeowner’s Manual HORIZON Direct Vent Gas Fireplaces natural gas 534JN propane gas 534JP Do not touch any electrical switch; do ▪ WARNING: not use any phone in your building. FIRE OR EXPLOSION HAZARD Leave the building immediately. ▪ Failure to follow safety warnings Immediately call your gas supplier from ▪...
  • Page 2 This appliance may be installed in an after-market permanently located, manufactured (mobile) home where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certifi...

  • Page 3: Table Of Contents

    fi replace, do not try to repair the unit yourself. Contents Your Valor Fireplace Safety and your fi replace .......... 4 Here are some important details about your Valor Child safety and your fi replace ......... 6 fi replace, should you need to contact your dealer. Model: _________________________________________ Getting started ............

  • Page 4: Safety And Your Fireplace

    Read and understand all instructions carefully before operating your fi replace. Failure to follow these instructions may result in possible fi re hazard and will void the warranty. Replacement manuals are available by contacting Valor Customer Service at 1-800-468-2567, or by visiting valorfi...
  • Page 5 Safety and your fireplace Barrier Screen and Safety Maintenance • More frequent cleaning might be required due to • A barrier designed to reduce the risk of burns from excessive lint from carpeting, bedding material, the hot viewing glass is provided with this appli- etc.

  • Page 6: Child Safety And Your Fireplace

    Read and carefully follow all safety warnings and operating instructions contained in this manual, and follow these important child safety precautions and recommendations: • Parts of your Valor Fireplace become extremely A physical barrier is recommended if there are hot while in operation. The glass window tempera- at-risk individuals in the house.

  • Page 7: Getting Started

    fl ames will be at their normal height. Valor automatic gas shut-off For your safety, Valor fi replaces are fi tted with a fl ame supervision device which will shut-off the gas supply if, for any reason, the pilot fl ame goes out.

  • Page 8: Parts Of Your Fireplace

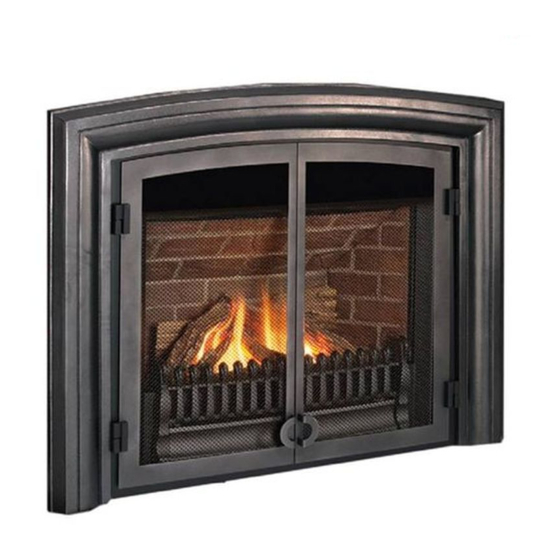

    Parts of your fireplace Here are the major components of your installed fireplace, with the protective barriers installed. Your individual fireplace may appear differently depending on your installed options. Barrier Screen Window Frame Front/Trim Liner Panels Fuel Bed Fret or Access Panel— fi...

  • Page 9: Operating Your Fireplace

    7 to know how to access it. Also, a copy of this card is reproduced in Appendix A of the fi replace Installation Manual. To use additional functions of your Remote Control such as temperature or program settings, visit valorfi replaces.com/remotes...

  • Page 10: Preventing Inadvertent Ignition

    fi replace will not turn on when automatic shut-off mechanism which is activated in you don’t want it on. certain conditions. See Remote Control handbook or valorfi replaces.com/remotes for a description of this • On manual ON/OFF switch at the right of the gas feature.

  • Page 11: Replacing Batteries

    Replacing batteries To replace the batteries: WARNING 1. Open the bottom access panel or unhook the fret. You may need to remove the barrier screen. Do not attempt to access the batteries while the fi replace is hot! Let the 2.

  • Page 12: Annual Service And Maintenance

    Annual service and maintenance We recommend having your fi replace serviced before initial use, and at least once per year by a qualifi ed service technician. Contact your dealer quoting the model serial number, if possible. It will be helpful if the fi replace’s serial number can also be quoted.

  • Page 13: Cleaning Your Fireplace

    Cleaning your fireplace  WARNING Risk of severe burns! Do not touch the glass while it is hot! Let the fi replace cool fi rst before cleaning it. Remove Window 1. To remove the window, turn the top two bolts through 90 degrees to release the window from the fi...
  • Page 14 Log/Rocks position » Brasso, Polish Plus by KelKem, Cook Top Clean Logs/Rocks position is important in your Valor Creme by Elco, White Off by Rutland, Turtle Wax fi replace because it can optimize the beauty of the fl...
  • Page 15 • Affect the performance of the fireplace; • Damage components; • Cause overheating resulting in dangerous conditions. Damages caused by incorrect window installation is not covered by the Valor warranty.  WARNING For safety purposes, make sure the barrier screen is re-installed on the 6.

  • Page 16: Checking Pilot And Burner Flames

    Checking pilot and burner flames Typical fl ame appearance The pilot light and burner fl ames should be checked periodically. Check after the fi re has been on for at least 30 minutes. The pilot fl ame must cover the tip Driftwood Logs of the thermocouple probe.

  • Page 17: Frequently Asked Questions

    If the fi replace still won't turn on after that, call your dealer for further information. Your fi replace may require service by a qualifi ed service technician. Visit valorfi replaces.com/contact for a list of dealers near you. I've just started my fi replace When operating your fi...
  • Page 18 Where can I purchase parts Any of our Valor dealers are able to order parts or provide fi eld service. for my fi replace? Please contact your dealer - see page 3 - or visit valorfi...

  • Page 19: Valor ® Warranty

    Installation and maintenance must be performed by 5. No Other Warranty an authorized and trained dealer in accordance with All obligations to repair this unit are de ned in this warranty.

  • Page 20: Valor ® Outdoor Installation Warranty

    The Company does not allow anyone to extend, b) Installation and maintenance must be performed alter or modify this warranty and assumes no...

  • Page 21: Appendix A-Remote Control Operation

    Appendix A-Remote Control Operation Note: Before using the remote control system for the first time, the receiver and the handset must be paired. See the Remote Control Setup section in the Installation Manual. Radio Frequency Turn Fireplace ON 315 MHz for USA and Canada. Press buttons until you hear a short beep;...
  • Page 22 Appendix A-Remote Control Operation Setting ºC/24-hr or ºF/12-hr clock Manual Mode M A N In MAN mode, press and hold Manual ame height adjustment. buttons until temperature / clock display changes from Daytime Temperature Mode TEMP When pilot is lit, room temperature °F / 12-hour °C / 24-hour is measured and compared to set...
  • Page 23 Appendix A-Remote Control Operation Setting high / low Temperatures Setting Program Timers Setting “DAYTIME” high temperature. You can program two periods of time between 12 am and 11:50 pm in each 24-hour cycle. Default Settings: 23 °C/74 °F TEMP Programs P1 and P2 must be set in the following order Press SET to scroll to TEMP during a 24-hour cycle:...
  • Page 24 Appendix A-Remote Control Operation Setting P2 high and low temperature times. Repeat same steps as Setting P1. When all settings are complete, press to save them. Timer Programming Example (default temperatures shown) 6:00 am 8:00 am 4:00 pm 10:00 pm 6:00 am high temp low temp...
