welcome
Thank you for buying a Chord product.
Before you start to enjoy using to your Chord product, please take a couple of minutes to read how to connect your audio
equipment and loudspeakers to your pre-amplifier or integrated amplifier and how to maximise your listening experience.

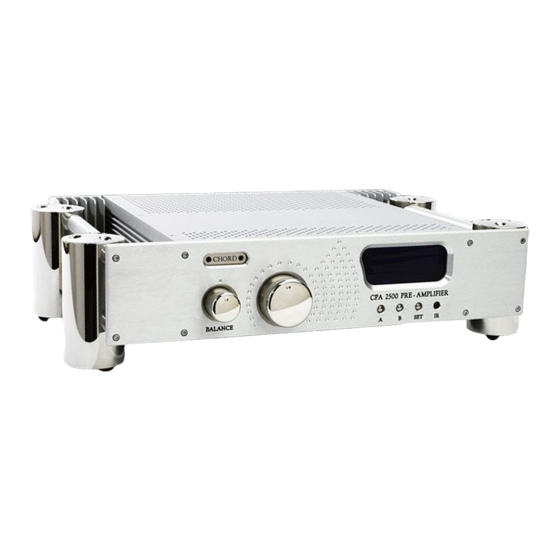

user guide for CPA 2500 pre-amplifier
The pre-amplifier is the control centre of your system. By connecting your audio sources to it you can choose the source you
want at any particular time and control it.
You can also adjust the balance and volume before the signal is sent to a power amplifier. Your pre-amplifier can be
operated manually or via the Chord remote control.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPA 2500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chord CPA 2500

  • Page 1 Thank you for buying a Chord product. Before you start to enjoy using to your Chord product, please take a couple of minutes to read how to connect your audio equipment and loudspeakers to your pre-amplifier or integrated amplifier and how to maximise your listening experience.
  • Page 2: Connecting Your Equipment

    Chord amplifiers are supplied with and designed to be connected using balanced inputs. The interconnecting cables you use will depend on the available input and output sockets on your other equipment. We have installed unbalanced inputs on all Chord equipment, thus enabling you to mix Chord and other manufacturer’s equipment. Whichever cable you choose it is important to make sure it is fully screened to avoid any noise problems.
  • Page 3: When Setting Up

    Your Chord integrated amplifier should have at least 5cm of clear space all around it to ensure a free flow of air at all times. When driven continuously at well above average levels, the temperature at the back of the unit may exceed 50ºC. This is normal and no cause for concern, although it does highlight the need for adequate ventilation around the unit.
  • Page 4 Outputs on the CPA 2500 You need to connect the outputs on the back of your pre-amplifier to a power amplifier in order to drive your loudspeakers. There are three pairs of outputs, each of which will drive a 68 load.
  • Page 5 Inputs on the CPA 2500 You can connect up to six items of source input equipment, such as CD player, Video, Tuner etc. to the inputs on your amplifier. The inputs have left and right sockets and use RCA phono connectors.
  • Page 6: Tape Recording

    Tape recording You can tape record an input from another audio source or two sources at the same time. If you’ve been using a tape recorder as an input source, it will already be connected to the T1 or T2 IN sockets. If you haven’t, first connect the tape’s output to the T1 or T2 IN sockets.
  • Page 7: Everyday Use

    Everyday use turning on CPA2500 When you plug your pre-amplifier into the mains using the supplied mains lead the display will light and the unit is ready for use. select your input source Your pre-amplifier uses input Bus A by default and the display will read. To scroll through the other input sources press button A.
  • Page 8: Using The Remote Control

    Using the remote control For optimum use hold your remote control flat and point it directly at your pre-amplifier. selecting your input source 1. Press Bus-A. 2. Press one of: Disc 1, Disc 2, Tape 2, Video or Radio. adjusting the volume 1.
  • Page 9: Maintenance

    AAA batteries as shown inside the battery compartment. servicing There are no user serviceable parts in your Chord amplifier, and it should only be serviced by Chord Electronics Limited or their expressly approved Service Agents.
  • Page 10: Frequently Asked Questions

    frequently asked questions why aren’t any of the remote control buttons working? Press Pre to set up the remote control for pre-amplifier functions. I’ve connected all the wires up but I can’t hear any sound? Ensure that you’ve selected the correct bus (typically Bus A), the correct input (eg Disc 1) and the correct output (eg Output 1.
  • Page 11 CPA2500 Technical Information Harmonic Distortion 10Hz -90dB 1kHz -91dB 10kHz -89dB 20kHz -87dB Intermodulation Distortion -100dB -93dB Signal to Noise Ratio 10Hz 110dB Channel Separation 1kHz 100dB 10kHz 91dB 20kHz 89dB 0.01dB Channel Balance -20dB -60dB Potentiometer Performance 0.5dB 0.2dB 0.24dB 17 secs +/-3 secs for full travel Unbalanced Inputs...
  • Page 12 Chord Electronics Limited Tel: +44 (0) 1622 721444 Fax: +44 (0) 1622 721555 Email: sales@chordelectronics.co.uk Web: www.chordelectronics.co.uk...
