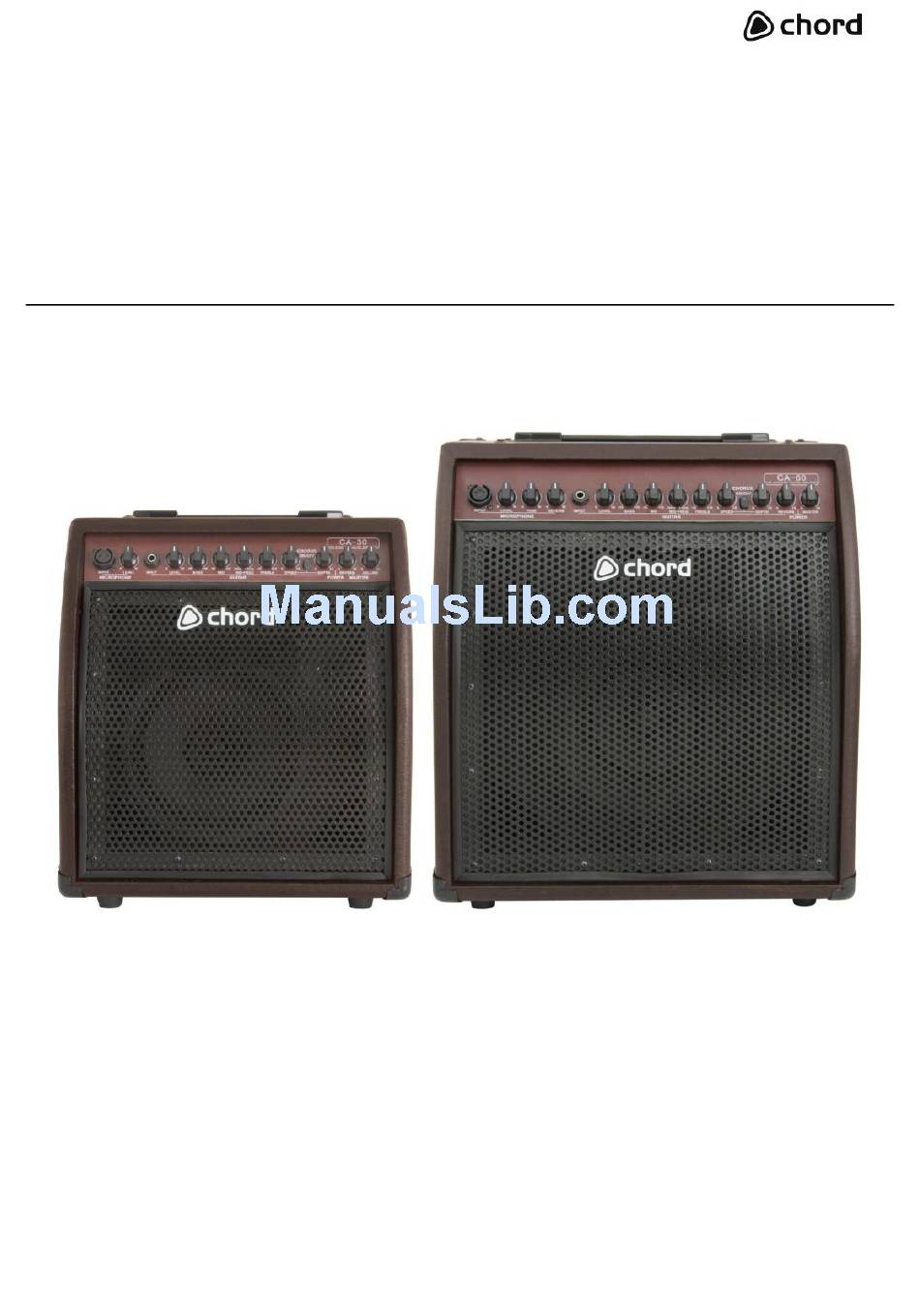

- Page 1 CA30 / CA60 Acoustic Amplifiers Order ref: 173.432, 173.433 User Manual...
- Page 2 Introduction Thank you for choosing our CA series acoustic amplifier. The CA range is designed to give a full range output suitable for electro-acoustic guitars without harsh overtones by employing a dual concentric main driver and a separate HF cone in a ported cabinet. A separate microphone input is provided for vocals and makes this amplifier ideal for acoustic soloists and a line output can be fed to the house PA for larger venues.

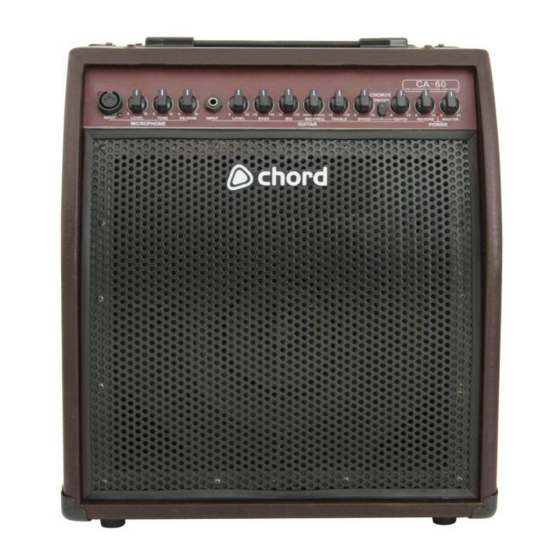

- Page 3 Front Panel 1) MICROPHONE INPUT – 6.3mm jack or XLR combo connector for microphone 2) MICROPHONE LEVEL – Volume control for microphone input 3) MICROPHONE TONE – Tone control for microphone input (CA-60 only) 4) MICROPHONE REVERB – Reverb level control for microphone input (CA-60 only) 5) INPUT –...
- Page 4 Operation Connect your electro-acoustic guitar to the CA-series amplifier GUITAR INPUT using a good quality 6.3mm mono jack lead If a microphone is to be used, connect to the MICROPHONE INPUT combo connector using either XLR or jack lead. If a playback device is to be used for “play-along” practice or performance, connect to the rear CD INPUT on the rear panel via RCA connectors (both RCA inputs are summed to mono) If the output is to be fed to a mixing console or recording device, the best method is to use the rear panel Balanced Out XLRM connector.
