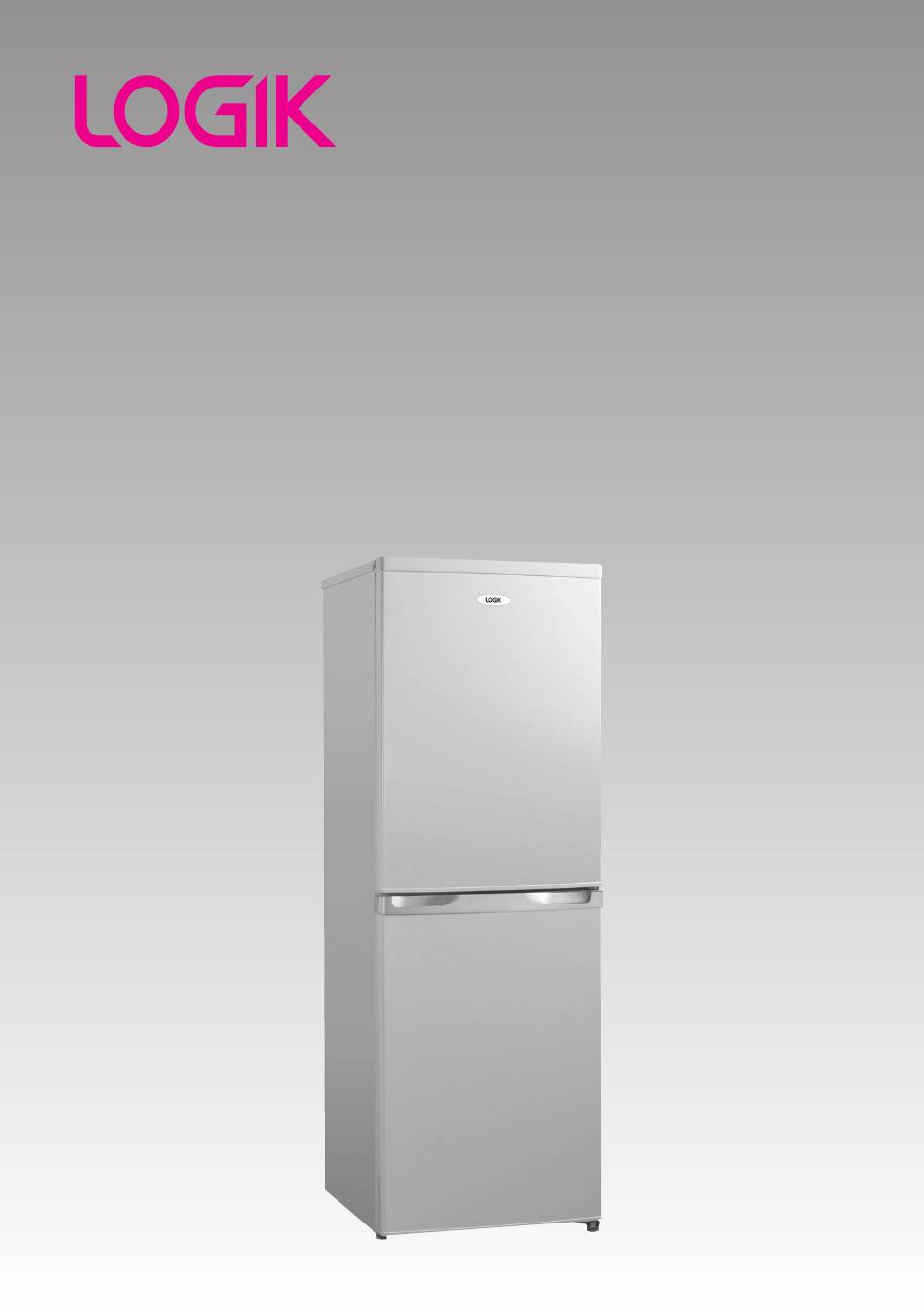

- Page 1 Frost Free Fridge Freezer Instruction Manual LFC55W12...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................9 Cleaning Before Use .............................. 9 Before Using Your Unit ............................9 Interior Accessories ..............................9 Product Overview ........................10 Operation ........................... -
Page 4: Unpacking
Thank you for purchasing your new Logik Fridge Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. Remove the 2 screw covers first, then undo the screws underneath. 2. Remove the 2 screws on the back. 3. Lift the top cover away from the fridge. 4. Remove the three screws, then remove the upper hinge that holds the door in place.
- Page 7 INSTALLATION 6. Take off the middle hinge by removing the screws. Lift the lower door and place it on a padded surface to prevent it from scratching. unscrew Remove the screws’ covers and place them to the opposite side. 7. Swap the bottom bushing and bottom bushing cap of the lower door.
- Page 8 INSTALLATION 11. After placing the freezer door, screw the middle hinge back onto the opposite Middle hinge side of the unit. Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge. 12.
-
Page 9: Levelling The Unit
INSTALLATION Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 10: Product Overview
Product Overview Thermostat and Bulb Fridge Glass Shelves Fridge Door Shelves Salad Bin Freezer Drawers Adjustable Feet Egg Tray Ice Tray... -
Page 11: Operation
Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 6 is the coldest and position OFF turns the unit off. -
Page 12: Shopping For Chilled Foods
Shopping for Chilled Foods • Take a quick look at the chilled food package and make sure it is in perfect condition. • Try to keep chilled food together whilst shopping and on the journey home as this will help to keep the food cold. -
Page 13: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. •... -
Page 14: Cleaning
Cleaning Defrosting The freezer compartment of this unit is frost-free. With proper use, there should not be any frost accumulated. However, in case of improper use of the freezer compartment, frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper (not included). -
Page 15: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position OFF, then disconnect the mains supply. 2. Use a flat bladed screwdriver and gently prise off the light bulb cover. 3. -
Page 16: Specifications
Specifications Model LFC55W12 Appliance Category Category 7 (Refrigerator – Freezer) Overall Dimension (W x D x H) 550 x 595 x 1725 mm Fresh Food Storage Compartment 156 L Volume Frozen Food Storage Volume 81 L Defrosting Type Frost Free (Freezer Compartment) -
Page 17: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. - Page 18 Normal energy consumption Increased energy consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient temperature is approx 20°C.
- Page 19 EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: LFC55W12-001)
