Chapter 5, Adding Memory
o

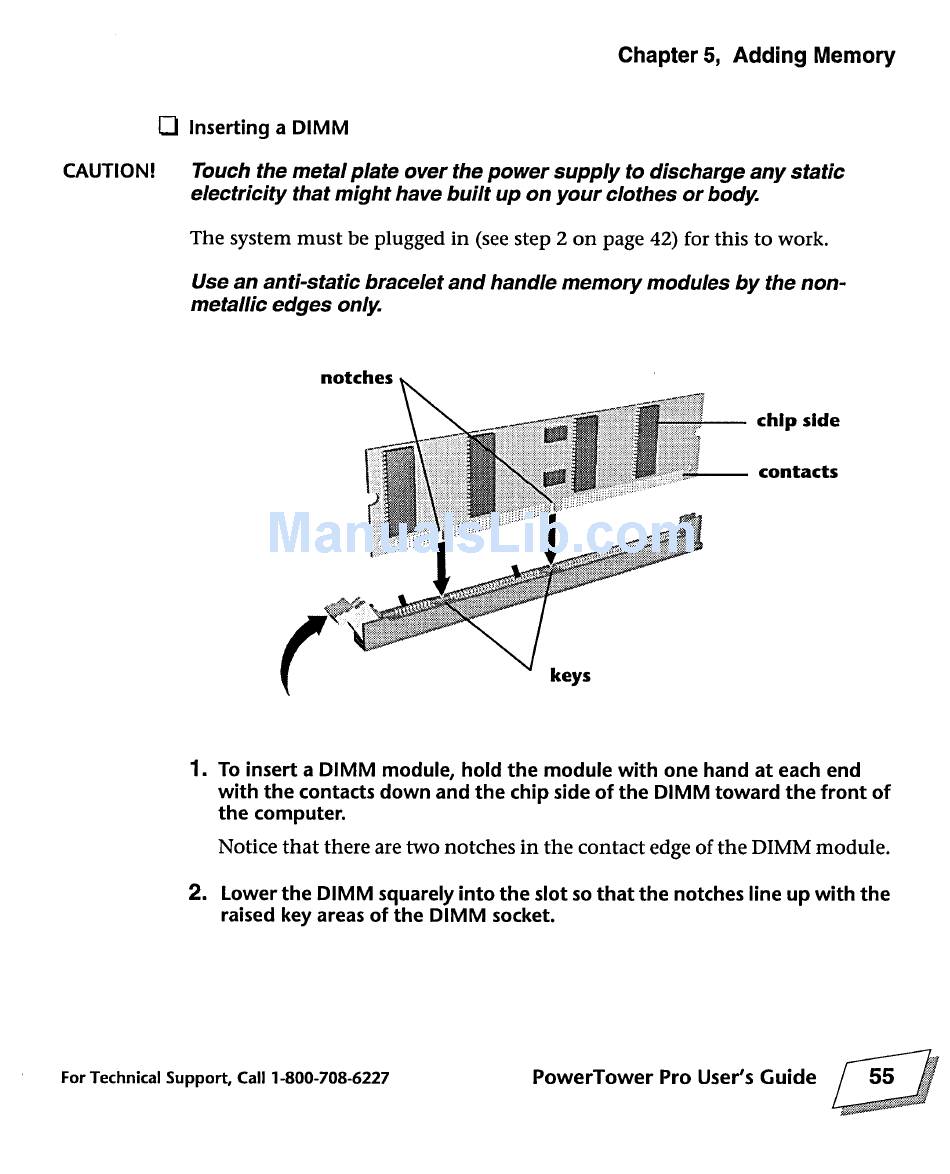

Inserting a DIMM
CAUTION! Touch the metal plate over the power supply
to
discharge any static
electricity that might have built up
on
your clothes or body.
The system must be plugged in (see step 2 on page 42) for this to work.
Use
an
anti-static bracelet and handle memory modules by the non-
metallic edges only.
chip side
keys
1.
To insert a DIMM module, hold the module with one hand at each end
with the contacts down and the chip side of the DIMM toward the front of
the computer.
Notice that there are two notches in the contact edge of the DIMM module.
2.
Lower the DIMM squarely into the slot so that the notches line up with the
raised key areas of the DIMM socket.
