Chapter 5, Adding Memory
3.

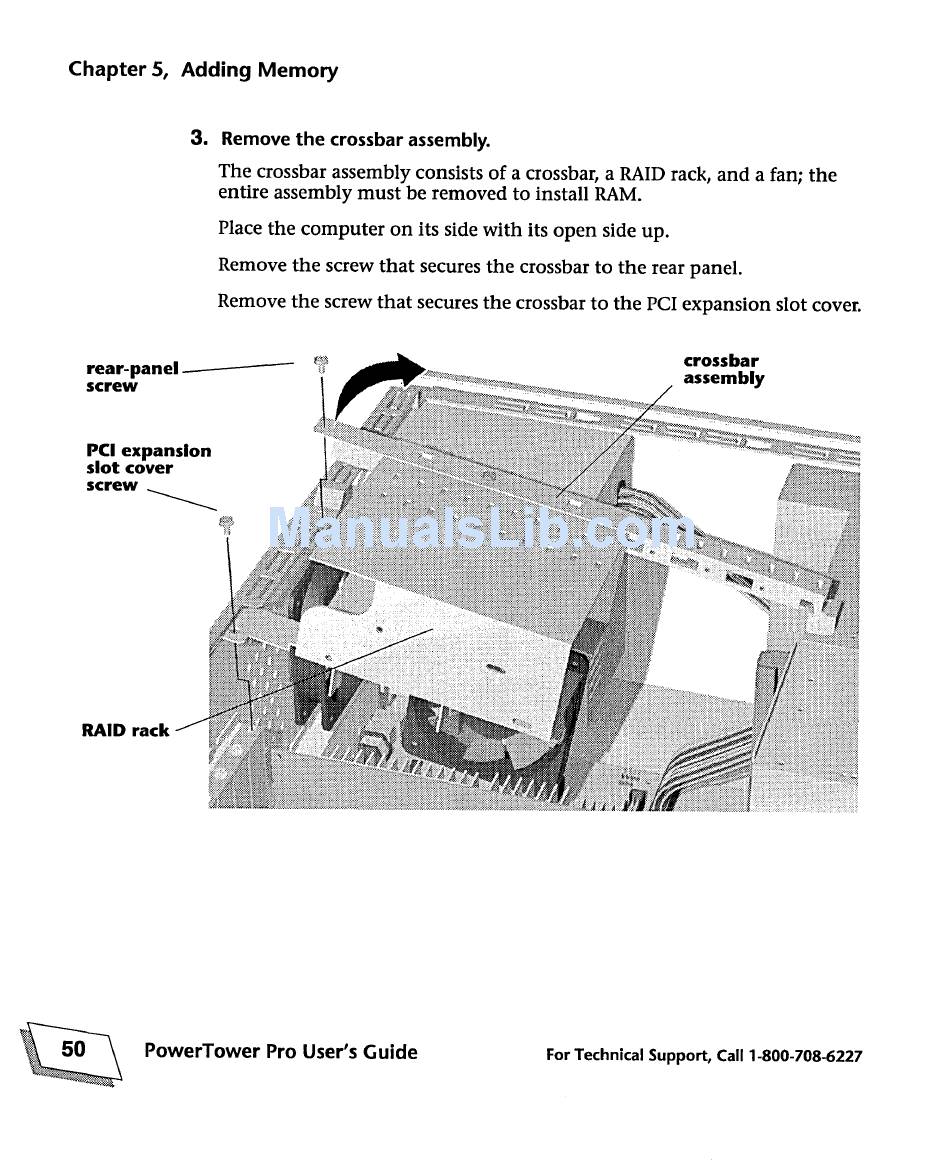

Remove the crossbar assembly.
The crossbar assembly consists of a crossbar, a RAID rack, and a fan; the
entire assembly must be removed to install RAM.
Place the computer on its side with its open side up.
Remove the screw that secures the crossbar to the rear panel.
Remove the screw that secures the crossbar to the PCI expansion slot cover.
rear-panel - - - - -
screw
PCI expansion
slot cover
screw _____
RAID rack
PowerTower Pro User's Guide
crossbar
assembly
For Technical Support, Call 1-800-708-6227
