Moxa Technologies NPort Z3150 Quick Installation Manual

NPort Z3150
Quick Installation Guide
First Edition, November 2011
Overview
NPort Z3150 is a gateway that provides computers with an
Ethernet interface to a ZigBee PAN. Unlike a bridge, which logically
extends a PAN across an Internet connection, a gateway provides
network services on behalf of a ZigBee PAN. Software on any
computer can monitor any ZigBee device in the PAN via the NPort
Z3150.
Package Checklist
Before installing the NPort Z3150, verify that the package contains
the following items:
Standard Accessories
• NPort Z3150
• Document & Software CD
• RJ45 to RJ45 Ethernet cross-over cable
• Power adaptor (not included with wide temperature models)
• Warranty statement
• Quick Installation Guide
• 2.4 GHz omni-directional antenna
Optional Accessories
• DK-35A: DIN-rail mounting kit (35 mm)
NOTE: Please notify your sales representative if any of the above
items are missing or damaged

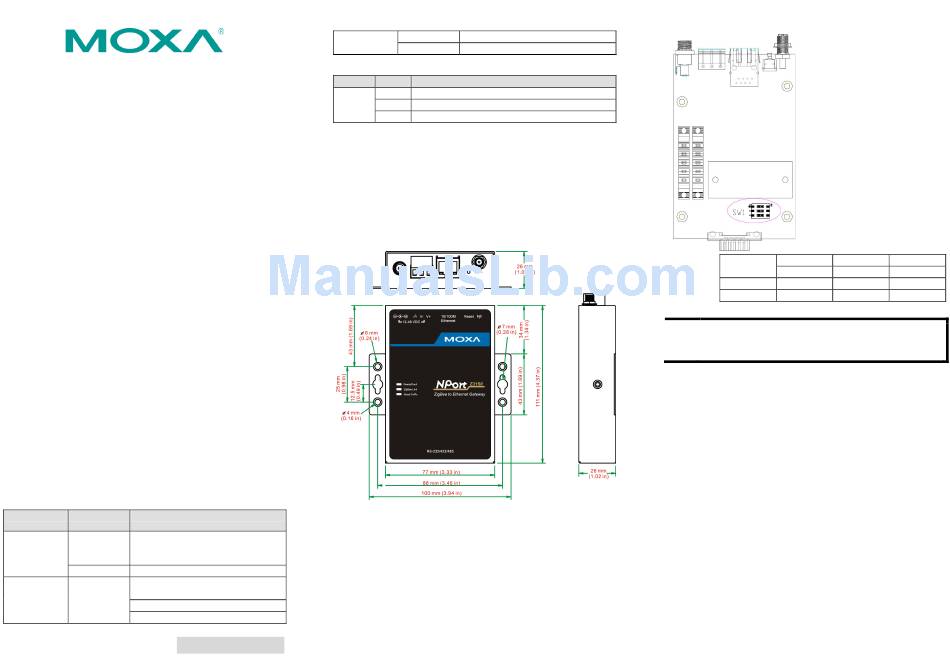

Hardware Introduction
LED Indicators
Top Panel LED Indicators
There are three LEDs on NPort Z3150.
LED Color Descriptions
Ready/Fault Green On: System power on
Blinking: 1) Device locating 2) Pull
down the reset button
Red On: System initialization failed
ZigBee Green On: Initialized ZigBee PAN
successfully
Blinking: ZigBee Tx/Rx
Off: ZigBee PAN initialization failure
P/N: 1802031500010
– 1 –
Serial Tx/Rx Green Serial data output to serial port
Orange Serial data input from serial port
End Panel LED Indicators
Name Color Descriptions
Ethernet Orange 10 Mbps Ethernet connection
Green 100 Mbps Ethernet connection
Off Ethernet cable is disconnected or has a short
The NPort Z3150 models have one serial port. All models support
RS-232/422/485 operation with DB9 connectors, and include one
10/100M Ethernet port.
Reset Button
The reset button is used to load factory defaults. Use a pointed
object such as a straightened paper clip to hold the reset button
down for five seconds. Release the reset button when the Ready
LED stops blinking.
Pull High/Low Resistors for RS-422/485
You may need to set the pull high/low resistors when termination
resistors are used for certain RS-422 or RS-485 environments.
– 2 –
SW 1 2
Pull High Pull Low
ON 1KΩ 1KΩ
Default OFF 150KΩ 150KΩ
NOTE Do not use the 1KΩ setting while in RS-232 mode. Doing so
will degrade the RS-232 signals and reduce the effective
communication distance.
First-time Hardware Installation
STEP 1: After removing the NPort Z3150 from the box, use a
cross-over Ethernet cable to connect the NPort's RJ45 Ethernet
port directly to your computer's.
STEP 2:
Attach the power adaptor to the NPort and then plug
the adaptor into an electrical outlet.
STEP 3: Configure the NPort Z3150 through the Ethernet port.
See the next section for software installation information.
Software Installation Information
Insert the Documentation & Software CD. A window should open
with several options displayed:
• Click [Documents] and select "NPort Z3150 Series User's
Manual" to view the user's manual.
• Click [Install UTILITY] and follow the on-screen instructions
to install the NPort Search Utility. This utility can be used to
search for NPort Z3150 units on the network.
The Factory default IP settings are assigned as follows:
LAN: Static; IP = 192.168.127.254; netmask = 255.255.255.0
– 3 –
3
Terminator
120Ω
---
