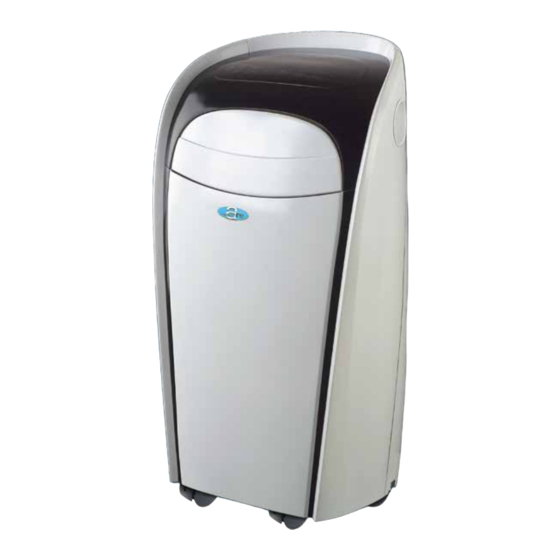

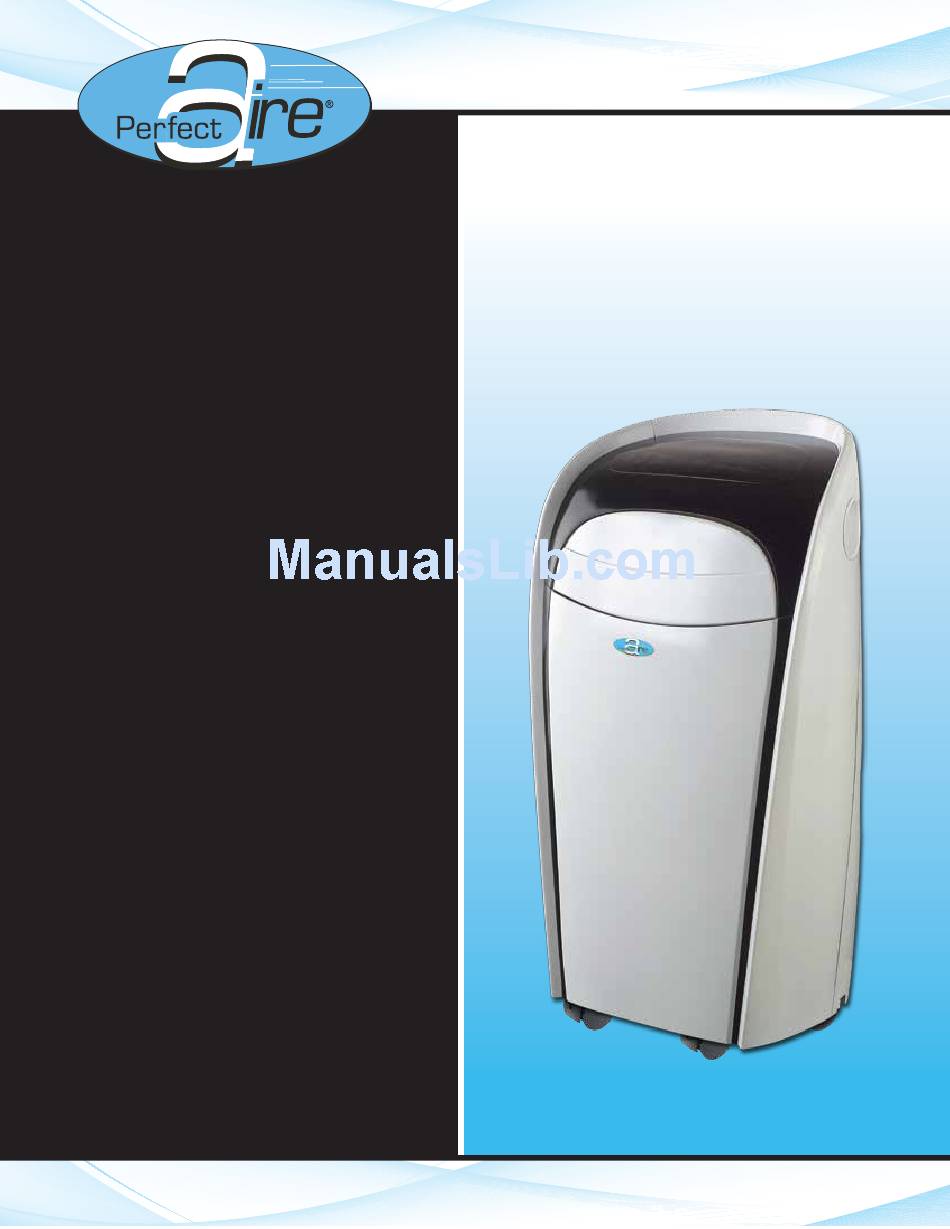

- Page 1 Your Source for Home Comfort (8,000 & 10,000 BTU) PORTABLE AIR CONDITIONER USER MANUAL FOR MODELS: PATC8000 PATC10000 PATCH10000 with 3,400 BTU electric heater Before using your portable air conditioner, please read this manual carefully and keep it for future...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..................2 IDENTIFICATION OF PARTS................3 AIR CONDITIONER FEATURES................5 OPERATING INSTRUCTIONS ................6 INSTALLATION INSTRUCTIONS ................ 8 CARE AND MAINTENANCE ................13 TROUBLESHOOTING TIPS ................14 This manual provides the information needed for proper use and maintenance of this air conditioner. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Never do this Always do this Do not operate your air conditioner in a wet room such as a Your air conditioner should be used in such a way bathroom or laundry room. that it is protected from moisture (i.e. condensation, Do not touch the unit with wet or damp hands or when splashed water, etc.). -
Page 4: Identification Of Parts
IDENTIFICATION OF PARTS • Exhaust hose 1 Set • Flat mouth adaptor • Window slider kit with bolt Vent Exhaust Flat Mouth Bolt Window • Vent joint Joint Hose Adaptor Slider Kit • Foam Seal 1 Piece • Wall exhaust adaptor A* •... -
Page 5: Names Of Parts
IDENTIFICATION OF PARTS (CONTINUED) NAMES OF PARTS Front Operation Panel Horizontal Louver Blade (swings automatically) Carrying Handle (both sides) Remote signal receptor Panel Fig.1 Rear Upper Air Filter (behind the grille) Air Outlet Wheel Air intake Drain Outlet Air intake Lower Air Filter (behind the grille) Bottom tray drain outlet... -
Page 6: Air Conditioner Features
AIR CONDITIONER FEATURES ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel and remote control and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel alone or with the remote control. NOTE: This manual does not include Remote Control Operations, see the Remote Control Instructions packed with the unit for details. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Error and protection codes: AUTO operation - When you set the air conditioner in AUTO mode, E1- Room temperature sensor error- it will automatically select cooling, heating Unplug the unit and plug it back in. (on models with heating function only) or fan If error repeats, call customer service. - Page 8 OPERATING INSTRUCTIONS (CONTINUED) SLEEP operation In this mode the selected temperature will increase (cooling) or decrease (heating - units with heater only) by 2 C 30 minutes after the mode is selected.The temperature will then increase (cooling) or decrease (heating - units with heater only) by another 2 after an additional 30 minutes.
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Fig. 5 Vertical window Window Slider Kit Minimum:2.22 ft (67.5 cm) Maximum:4.04 ft (123 cm) Fig. 6 Horizontal window Window Slider Kit Minimum:2.22 ft (67.5 cm) NOTE: If the window opening is less than 2.22 ft, cut Maximum:4.04 ft (123 cm) Fig. - Page 10 INSTALLATION INSTRUCTIONS (CONTINUED) See Fig. 8. Fig. 8 sill. See Fig. 9. See Fig. 10. 26.5” - 48” Fig. 9 Window sill See Fig. 11. Fig. 10 Window sill Fig. 11...
- Page 11 INSTALLATION INSTRUCTIONS (CONTINUED) See Fig. 12. Fig. 12 height of height of sill. See Fig. 13. 26.5” - 48” See Fig. 14. Fig. 13 See Fig. 15. Fig. 14 Fig. 15...
- Page 12 INSTALLATION INSTRUCTIONS (CONTINUED) Fig. 16 Exhaust hose installation: Flat Mouth Adaptor The exhaust hose and adaptor must be installed or removed in accordance with the usage mode as indicated below. Vent Exhaust COOL or AUTO mode Install Hose Joint Hose FAN, DRY, HEAT* Remove Hose (*for units with electric heating function)
-
Page 13: Water Drainage
INSTALLATION INSTRUCTIONS (CONTINUED) Water drainage: During dehumidifying modes, remove the drain plug from the back of the unit and attach 3/4” vinyl tube included with the unit (5/8” outer diameter). For the models without drain connector, just Remove the attach the drain hose to the hole. Place the open drain plug end of the hose directly over the drain area in your basement floor. -
Page 14: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE IMPORTANT: Upper filter 1) Be sure to unplug the unit before cleaning or servicing. (take out) 2) Do not use gasoline, thinner or other chemicals to clean the unit. 3) Do not wash the unit directly under a tap or using a hose. It may cause electrical danger. -
Page 15: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, please review the chart below. Issue Possible Solutions • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the airflow to/from the unit and louvers such as curtains, etc. - Page 16 Your Source for Home Comfort Distributed by: Perfect Aire, LLC 5151 Belt Line Rd. Suite 878 Dallas, TX 75254 877-365-6274 www.perfectaire.us Specification and performance data is subject to change without notice. Printed in PRC...
