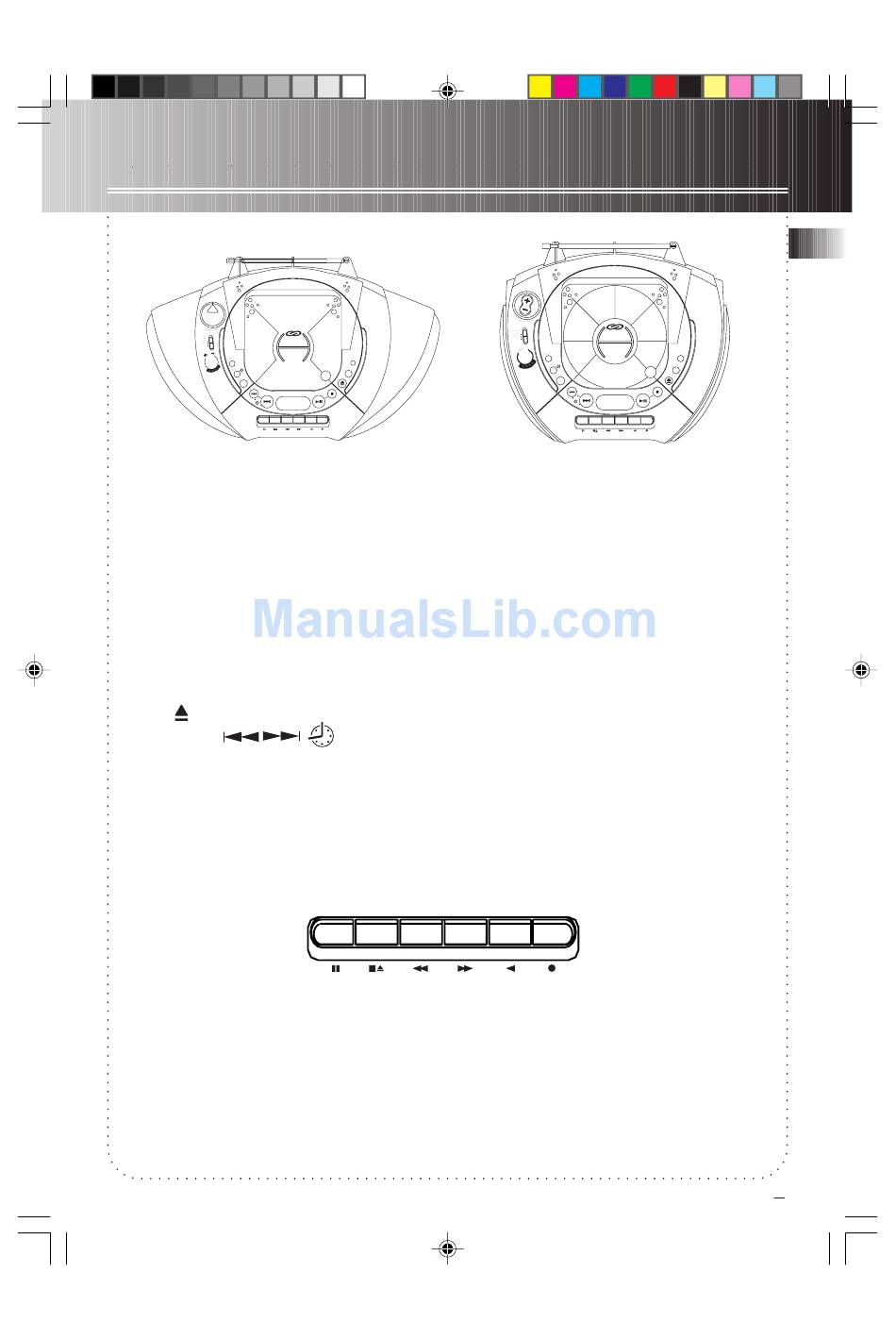

General controls

Main Unit
LEVEL
TRACK
HOUR
MIN
RCD113 / RCD115 / TM9136U
MIN. VOLUME MAX. (RCD113/RCD115/TM9136U) / DIGITAL VOLUME. (RCD101/RCD102/
TM9236U) — increases or decreases output volume
SELECT – selects among TAPE (OFF), RADIO and CD mode
DBBS – turns on/ off digital bass boost system
REPEAT/PRESET UP – repeats 1 track or entire disc playback / accesses preset radio channels
REMAIN / CLOCK - selects between displaying track elapse time and track remain time during CD
playback / displays clock time in CD or radio mode
BAND – selects between AM and FM band (or MW/LW/FM for Thomson model).
SET – enters program mode for CD playing, sets radio preset channels, enters setting mode for clock
SHUFFLE / (MX for Thomson models) – plays CD tracks randomly
OPEN – opens the CD compartment door
TRACK TUNE
frequency, and set clock.
PLAY PAUSE – starts or pauses CD play
STOP – stops CD playback
CLOSE – push to close the disc compartment door
Cassette Player
PAUSE – pauses tape playback or recording
STOP/ EJ. – stops tape playback, winding or recording, opens cassette door
F. FWD/ REW – winds tape forward or backward
PLAY – starts tape playback
REC – starts tape recording
RCD113/15/01 EN
CDR/RW COMPATIBLE
CLOSE
STOP
DIGITAL PLAY
TUNE PAUSE
RADIO
DIGITAL SYNTHESIZER
CD DISPLAY
PAUSE STOP/EJ. F.FWD REW PLAY REC.
– searches/ skips CD track forward or backward, selects radio
PAUSE STOP/EJ. F.FWD
4
CDR/RW COMPATIBLE
A
DIGITAL
TRACK
TUNE RADIO
HOUR
MIN
DIGITAL SYNTHESIZER
CD DISPLAY
PAUSE STOP/EJ. F.FWD REW
RCD101 / RCD102 / TM 9236U
REW PLAY REC.
6/21/01, 3:47 PM
EN
CLOSE
STOP
PLAY
PAUSE
PLAY REC.
2
