Summary of Contents for Pro-Max CG5SSPT-120V

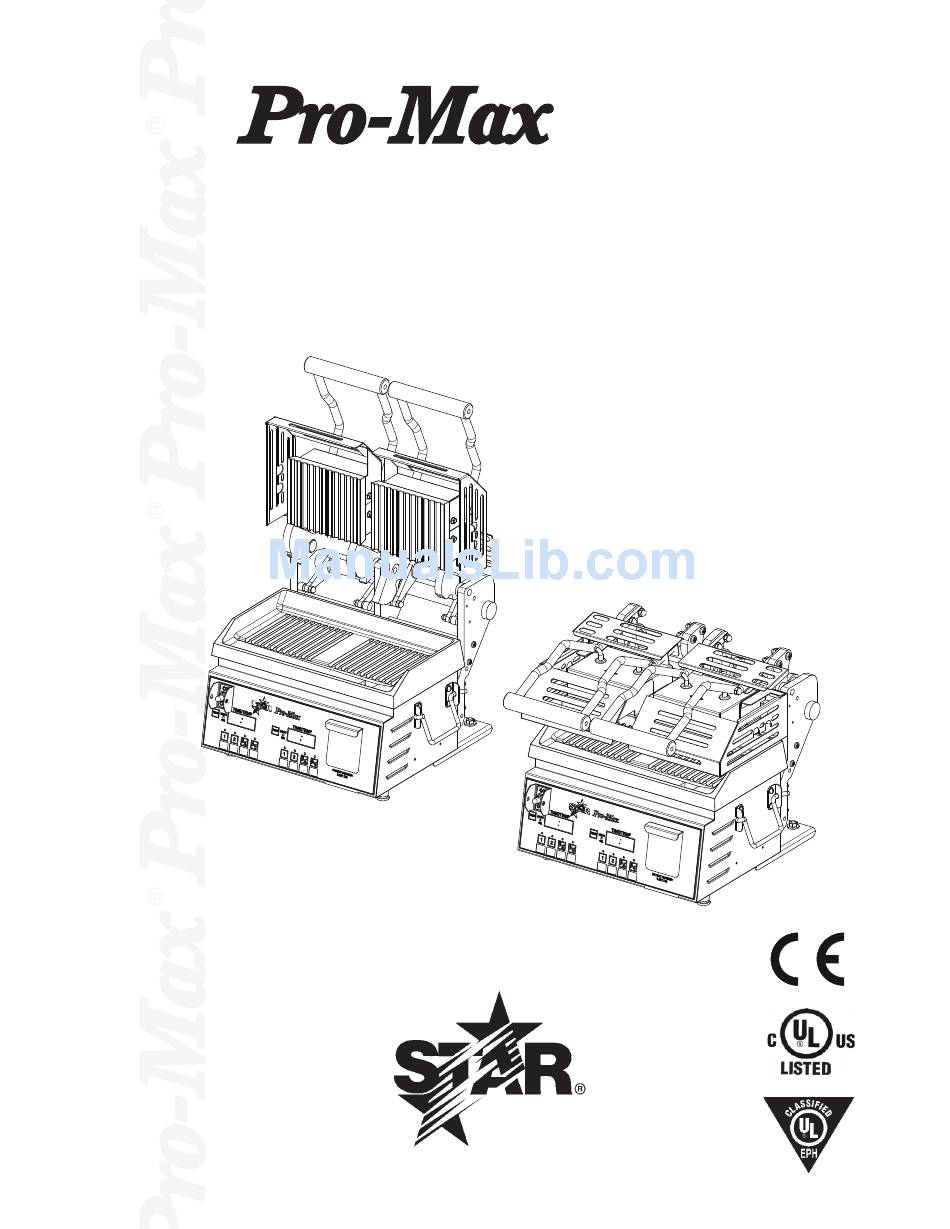

- Page 1 ® SPLIT LID TABLE TOP TWO SIDED TOASTER MODEL CG5SSPT-120V Installation and Operation Instructions 2M-Z11700 Rev. A 11/20/08 IL1509 CG5SSPT-120V...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: General Specifications
Inches NEMA Shipping Installed Model No Surface (cm) (cm) (cm) (cm) Voltage Wattage Amps Plug lbs. (kg) lbs. (kg) 23 1/8" 14 1/4" 31 5/8" CG5SSPT-120V Aluminum 16" (40.6) 120V 1,400 11.7 5-15P 51 (23.13) 38 (17.24) (58.7) (36.3) (80.3) -
Page 4: General Installation Data
GENERAL INSTALLATION DATA CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... - Page 5 PRESET TIME AND TEMPERATURE If adjustments are required, please refer to the time or temperature programming section in this manual. °F/°C CONVERSION To change the temperature display from °F to °C or from °C to °F, hold the TEMP button while the unit is turned off.
-
Page 6: Operation
PROGRAMMING This unit has separate control boards for the left and right cooking surfaces, because of this the program time & temperature, must be done for each side. To Program Time and Temperature: 1. Press and hold "TEMP" (actual temperature displays). . -
Page 7: Monthly Inspection
MONTHLY INSPECTION Check all bolts/screws and tighten if necessary. CLEANING (NON-CHROME SURFACES) Begin cleaning procedure by using the operating procedures within your organization, or follow the steps below: . If particles adhere to the cooking surface during the day, scrape them off with a spatula. NOTE: It is best not to let food residue onto the toaster, as food build-up on the toaster will increase sticking and smoking. - Page 8 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of the unit.
- Page 9 FOR REFERENCE WIRING DIAGRAM IS SHOWN AS UNIT IS ASSEMBLED WITH THE BOTTOM PLATE REMOVED. THE TOP DESCRIPTIONS ARE THEIR POSITIONS WHEN UPRIGHT. WIRE DIAGRAM, 120V 1400 WATT (2) 2J-Z11593 CONTROLLERS ONLY STAR MANUFACTURING INTERNATIONAL, INC. SK2251 REV. B 04/25/08 9D-CG5SSPT-120V...
- Page 10 ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. STAR MANUFACTURING INTERNATIONAL, INC. MODEL CG5SSPT-120V SK2373 REV. A 11/20/09...
-
Page 11: Parts List
PARTS LIST November 0, 009, Rev A CG5SSPT-0V Split Lid Table Top TOASTER MODEL Number Part Number Unit Number Description F-Z77 CASTING, BOTTOM - GROOVED C-87 WASHER #0 EXT STL NP D9-Z3903 BRACKET, PROBE MOUNT E-Z70 SENSOR C-Z50 HALF CLAMP .88 D STL ZP C-88 SCREW 8-8X/ HEX STL NP C-5... - Page 12 PARTS LIST November 0, 009, Rev A CG5SSPT-0V Split Lid Table Top TOASTER MODEL Number Part Number Unit Number Description E-Z78 RTD PROBE - 8" LONG WIRE D9-Z11614 INSULATION - TOP 2A-Z6604 SPACER - INSULATION PLATE 2C-Z2899 5/16-18UNC TOPLOCK L/NUT C-Z588 0- X / FZA SCREW D9-Z11422...
