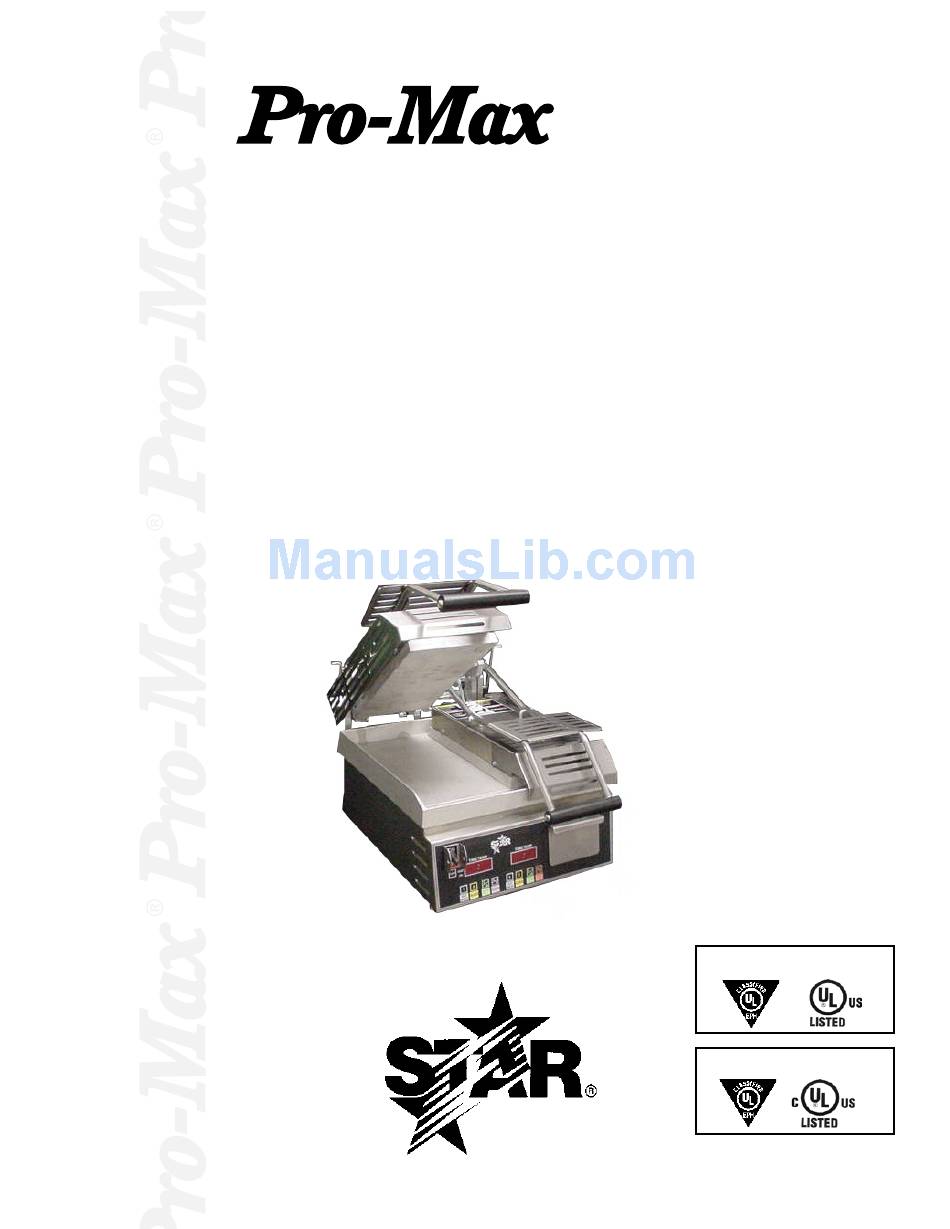

- Page 1 ® SPLIT LID TABLE TOP TWO SIDED TOASTER MODEL GR14SPT SERIES Installation and Operation Instructions 2M-Z3391 Rev. K 8/01/12 GR14SPT-120V 9D-GR14SPT-120V 9D-GR14SPT-CUL...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Installation
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &... - Page 4 TEMPERATURE/TIMER CONTROLLER OPERATION SPECIFICATIONS Start-up: 1. The preset time will flash until the preset temperature is reached. 2. When the control reaches the preset temperature, time display, "Heat On" indicator and program indicator will stop flashing and the alarm will beep three times. Temperature: 1.
- Page 5 MONTHLY INSPECTION Check all bolts/screws and tighten if necessary. CLEANING DAILY CLEANING PROCEDURES Begin toaster cleaning procedure by using operating procedures within your organization, or follow the steps below: Scrape griddle with a spatula to remove loose food debris. Turn grill to 275°F by pressing button #4 (programmed for cleaning mode). Once grill reaches cleaning temperature, turn the grill off and unplug it.
- Page 7 UNITS WITH IEC CONNECTOR: POWER INLET CONNECTOR: IEC 320 C-20 POWER INLET, ON ALL 208 - 240V UNITS. FOR USE WITH DETACHABLE CORDSETS SUPPLIED WITH A STRAIGHT, FEMALE, IEC 60320 C-19 CONNECTOR. TOP ELEMENT TOP ELEMENT RIGHT LEFT (ELEMENT MAS ALTO) (ELEMENT MAS ALTO) SENSOR - RIGHT (SENSORIO)
- Page 8 Nameplate SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - GR14SPT SK1750 REV. J 10/29/13...
-
Page 9: Parts List
PARTS LIST January 16, 2013, Rev. J GR14SPT-120V, CUL, CE SPLIT LIDD TABLE TOP TOASTER PARTS LIST Fig. No Part No Description Application 2A-Z6484 PLATE (COUNTER BALANCE MOUNT) D9-GR0152 BODY ASSEMBLY D9-GR0177 BURN GUARD ASSEMBLY - LEFT D9-GR0176 BURN GUARD ASSEMBLY - RIGHT... - Page 10 PARTS LIST January 16, 2013, Rev. J GR14SPT-120V, CUL, CE SPLIT LIDD TABLE TOP TOASTER PARTS LIST Fig. No Part No Description Application D9-Z2133 INSULATION FIBERGLAS TOP D9-Z2618 BTM ELEMENT RET. PLATE D9-Z2619 BTM INSULATION RET. PLATE D9-Z2888 INSULATION - 14”...
- Page 11 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
