Operating Instructions

Air Conditioner Controls

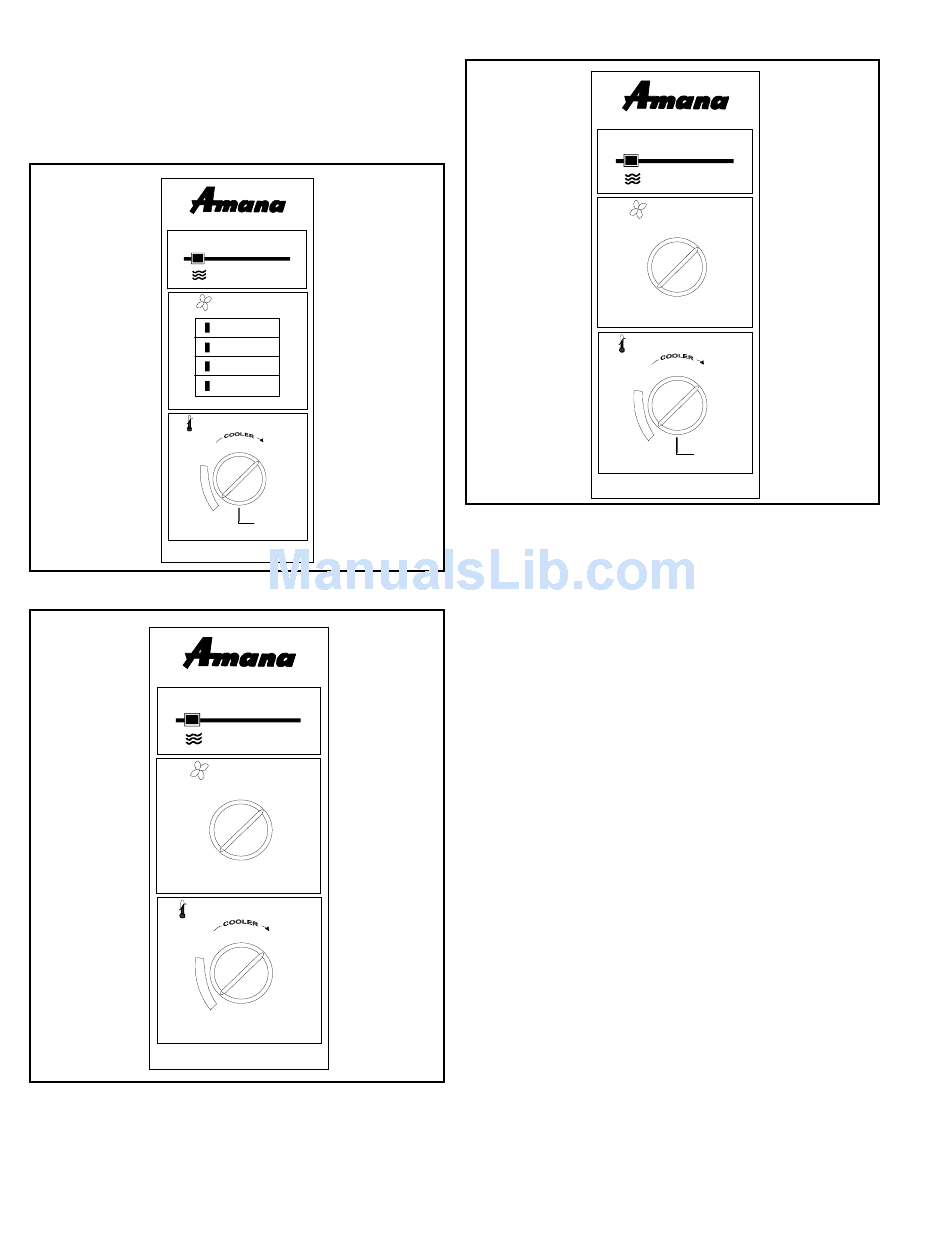

There are three types of air conditioner control panels
available: a touch control, a rotary control, and an
alternate rotary control.
CLOSED
TEMPERATURE CONTROL
3
2
ECONOMY
SETTINGS
Touch Control
CLOSED
FAN
ONLY
OFF
TEMPERATURE CONTROL
4
3
2
1
ECONOMY
SETTINGS
Rotary Control
RS5100002 Rev. 0
EXHAUST
VENT CONTROL
FAN CONTROL
HIGH
COOL
MEDIUM
COOL
LOW
COOL
OFF
6
5
7
4
8
1
FAN
ONLY
EXHAUST
VENT CONTROL
FAN CONTROL
NORMAL
COOL
LOW
COOL
EXTRA
HIGH
6
5
7
8
CLOSED
COOL
ECONOMY
SETTINGS
Alternate Rotary Control
Each control panel (regardless of its type) has the
following three controls:
VENT CONTROL
FAN CONTROL
TEMPERATURE CONTROL
Vent Control
The VENT CONTROL is used to recirculate or exhaust
room air, by controlling a damper.
When control is in CLOSED position, damper is closed.
When closed, air in area being cooled is recirculated
through air conditioner and back into room. No air is
exhausted (vented) outside.
NOTE: For maximum efficiency and cooling, VENT
CONTROL should remain in closed position any
time air conditioner is cooling.
When control is in EXHAUST position, damper is open.
When open, room air is exhausted (vented) outside. Use
exhaust position to remove stale or smoky air from area.
NOTE: To conserve energy, TEMPERATURE
CONTROL should be in FAN ONLY position
when using exhaust feature.
10
EXHAUST
VENT CONTROL
FAN CONTROL
LOW MED
COOL
HIGH
OFF
COOL
TEMPERATURE CONTROL
6
5
7
4
8
3
2
1
FAN
ONLY
