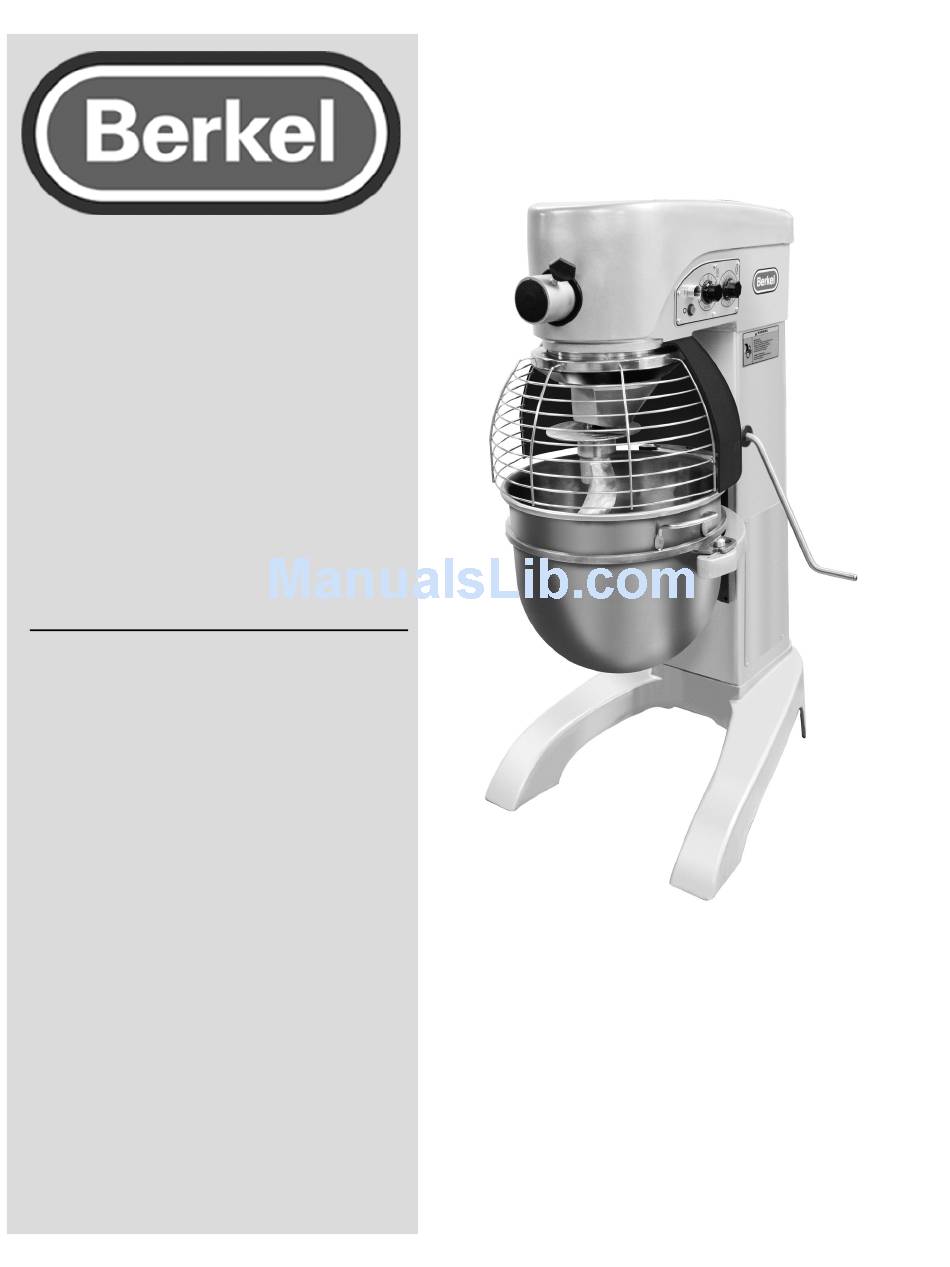

- Page 1 Model FMS30 Model FMS40 OWNER/OPERATOR MANUAL Berkel Company PO Box 696 2006 Northwestern Parkway Louisville, Kentucky 40201 1-800-348-0251 Fax 888-888-2838 FORM 37236 Rev. A (Oct. 2009)
-
Page 2: Table Of Contents
Remove Wire Cage/Bowl Guard .............8 Install Wire Cage/Bowl Guard ..............8 CLEANING ....................8 MIXING BOWL CAPACITY CHART ............9 Agitators and Accessories ..............10 MAINTENANCE ..................10 Motor .....................10 Bowl Lift Slideways ................10 SERVICE ....................11 WARRANTY ....................12 – 2 – FMS30 & FMS40 Owner/Operator Manual... -
Page 3: General
Installation, Operation, and Care of BERKEL FMS30 & 40 Quart MIXER SAVE THESE INSTRUCTIONS GENERAL The 30 quart mixer has an AC Induction electric motor and motor control. A 30 quart bowl, B-Flat beater, spiral dough hook, D wire whip and ingredient chute are shipped as standard equipment. A 0 - 15 minute timer and four plastic foot pads are standard. -
Page 4: Electrical Connections
Connect fi eld supply lead wires L1, L2, and L3 to supply harness wires labeled "SERVL1", "SERVL2", and "SERVL3" respectively. • Connect ground wire to supply harness green wire. • Reinstall side cover. – 4 – FMS30 & FMS40 Owner/Operator Manual... -
Page 5: Operation
ATTACHMENT HUB THUMB SCREW AND PLUG BOWL GUARD/ SPLASH GUARD BOWL GUARD/ WIRE CAGE BOWL LIFT HANDLE AGITATOR BOWL SUPPORT Fig. 1 ATTACHMENT HUB THUMB SCREW AND PLUG Fig. 1A (30/40 Quart Mixer) FMS30 & FMS40 Owner/Operator Manual – 5 –... -
Page 6: Controls
Speed 4 (High) -- This speed is for maximum and accelerated air incorporation into light batches. The Bowl Lift Handle (Fig. 1) is used to raise and lower the bowl. For the FMS30 (30 QUART) Mixer: to raise the bowl, rotate the handle downward; rotating the handle upward lowers the bowl. -
Page 7: Mixing
Close bowl guard/wire cage and raise bowl support to mix postion, move the speed select knob to the desired speed and start the mixer to operate the attachment. If bowl support is lowered off the mix position, mixer will stop. FMS30 & FMS40 Owner/Operator Manual – 7 –... -
Page 8: Wire Cage
DO NOT use a hose to clean the mixer — it should be washed with a clean damp cloth. Clean the bowl guard/wire cage by wiping with a cloth or sponge and warm soapy water. – 8 – FMS30 & FMS40 Owner/Operator Manual... -
Page 9: Mixing Bowl Capacity Chart
Above capacity based on 12% fl our moisture and 70 F water tempera- ture. ABBREVIATIONS - AGITATORS SUITABLE FOR OPERATION B - Flat Beater D - Wire Whip ED - Spiral Dough Hook FMS30 & FMS40 Owner/Operator Manual – 9 – - 9 -... -
Page 10: Agitators And Accessories
BOWL LIFT SLIDEWAYS The bowl lift slideways (Fig. 6) should be lubricated once each month. Apply a light coat of a "Food Grade" grease to both sides of the slideways. Slideway Fig. 6 FMS30 & FMS40 Owner/Operator Manual – 10 –... -
Page 11: Service
SERVICE AND PARTS INFORMATION To obtain service and parts information concerning the FMS30 & FMS40, you have two options: 1. You can contact the local Designated Berkel Service Location (DBSL). To locate the nearest DBSL, please visit www.berkel.com. Additional information may be obtained by dialing (800-348-0251). -
Page 12: Warranty
These warranties are given only to the fi rst purchaser from a Berkel Authorized Channel of Distribu- tion. No warranty is given to subsequent transferees. - Page 13 Notes FMS30 & FMS40 Owner/Operator Manual – 13 –...
- Page 14 – 14 – FMS30 & FMS40 Owner/Operator Manual...
- Page 15 – 15 – FMS30 & FMS40 Owner/Operator Manual...
- Page 16 FORM 37236 Rev. A, (Oct. 2009) FMS30 & FMS40 Owner/Operator Manual – 16 –...
