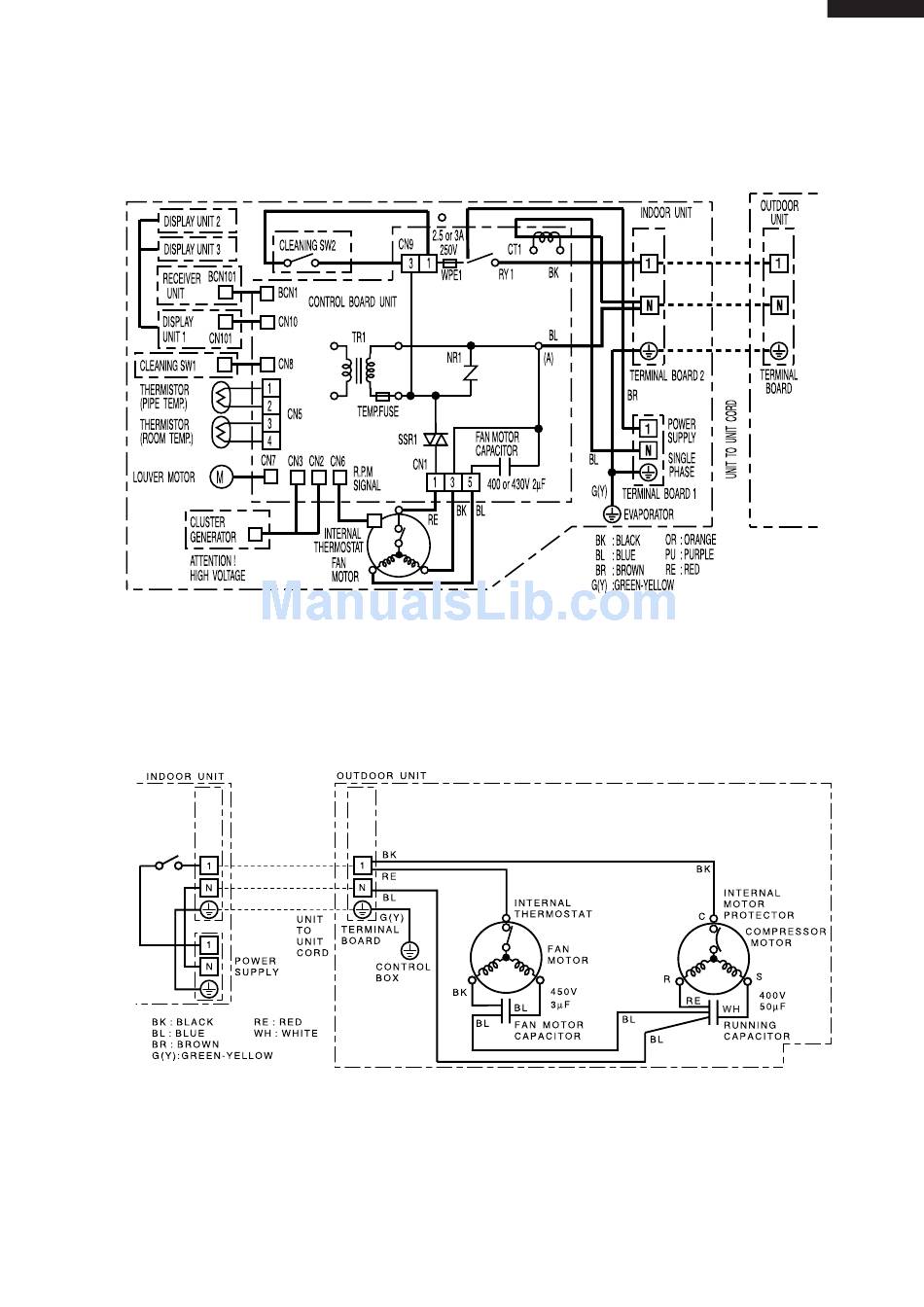

Figure W-5. Wiring Diagram for AH-AP18CE
Figure W-6. Wiring Diagram for AU-A18CE
7
AY-AP18CE AY-AP24CE
AH-AP18CE AH-AP24CE
AE-A18CE
AE-A24CE
AU-A18CE
AU-A24CE
