3.
Remove the connector of Louver motor and take
off the Wire and Holder.
4.
Push the one of the Vertical louver.

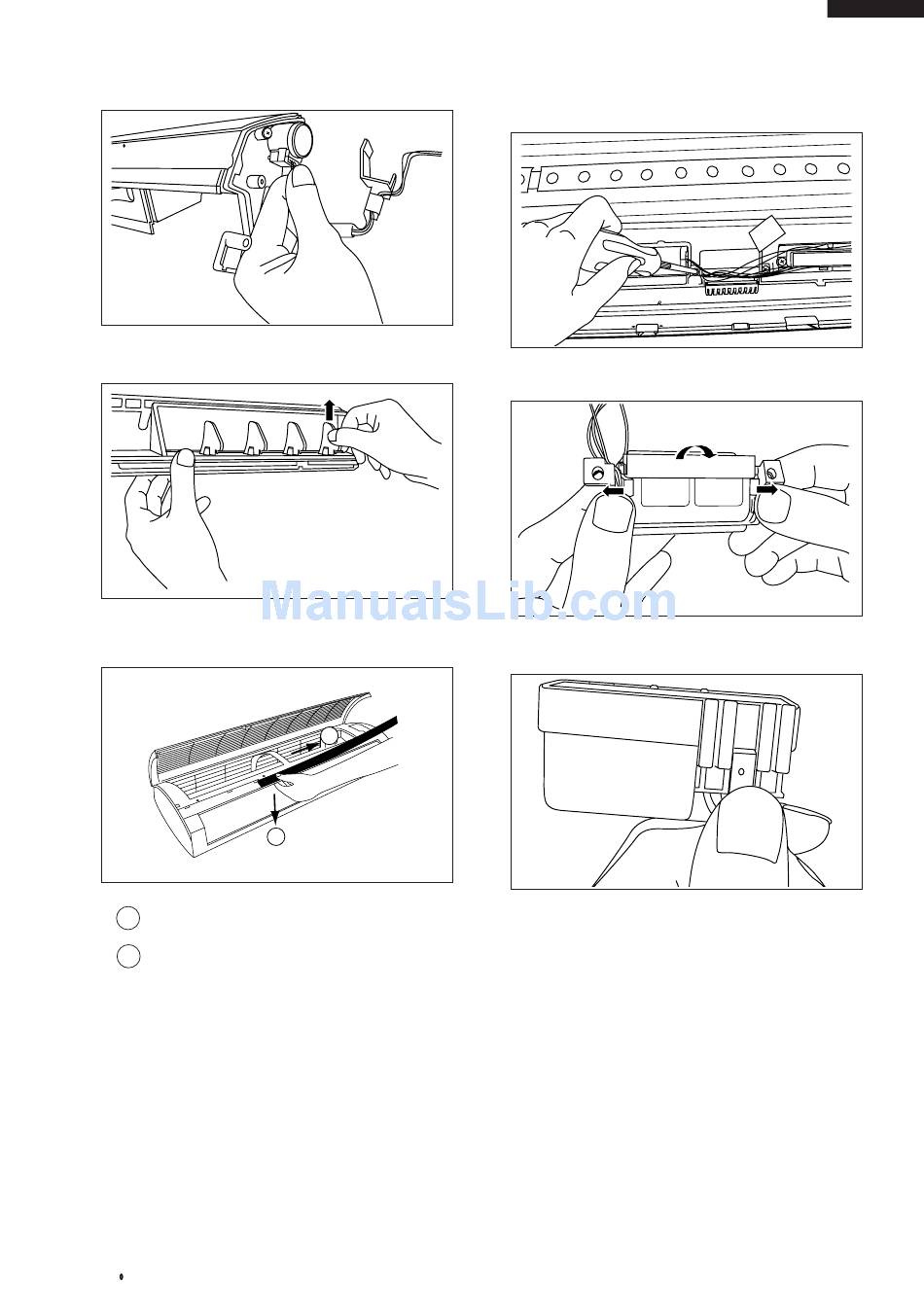

How to remove the DISPLY COVER.
1
Push the center of the Front panel under
the Display cover.
2
Slide it to one side.
2
1
How to remove the Hi Voltage UNIT.
1.
Remove 2 screws fixing Holder.
2.
Take off the HIGH VOLTAGE UNIT ASS'Y from
the HOLDER
3.
Remove the connector of HIGH VOLTAGE UNIT
ASS'Y
43
AY-AP18CE AY-AP24CE
AH-AP18CE AH-AP24CE
AE-A18CE
AE-A24CE
AU-A18CE
AU-A24CE
