External Dimensions; Indoor Unit; Outdoor Unit - Sharp AH-AP18CE Service Manual

AY-AP18CE AY-AP24CE
AH-AP18CEAH-AP24CE
AE-A18CE AE-A24CE
AU-A18CE AU-A24CE

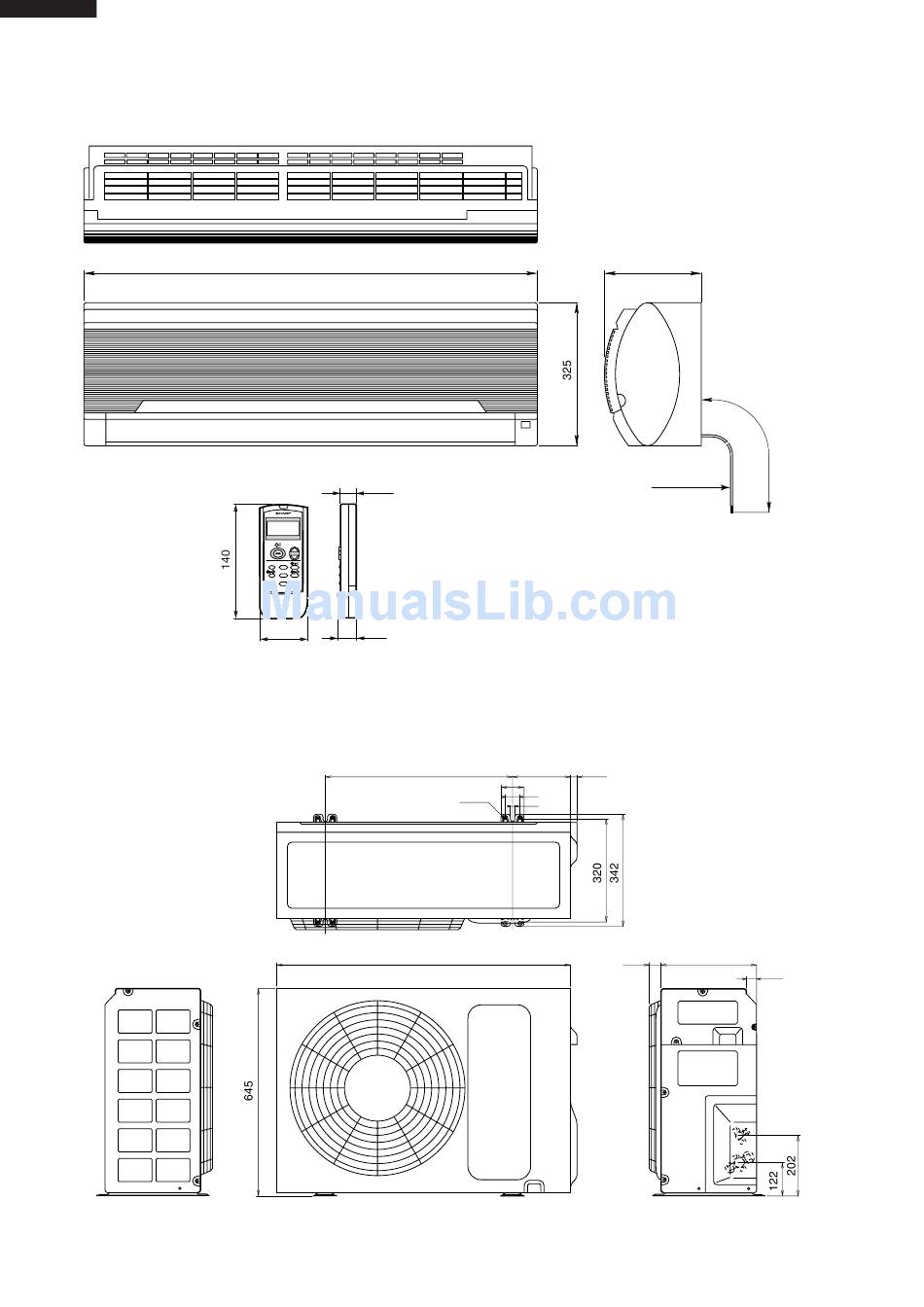

EXTERNAL DIMENSIONS

1040
18.5
INVERTER AIR CONDITIONER
MODE TEMP.
FAN TIMER
TEMP.
SAVE MODE
IH FAN
FULL POWER SWING CANCEL
22
58
Remote controller
Figure E-1. INDOOR UNIT
570
890
Figure E-2. OUTDOOR UNIT
Power supply cord
(AY-AP18CE, AH-AP18CE only)
[Length unit : mm]
172
25
62
46.3
ø4.5
10.5
4
220
950
37 290
30
