NIC indicator codes

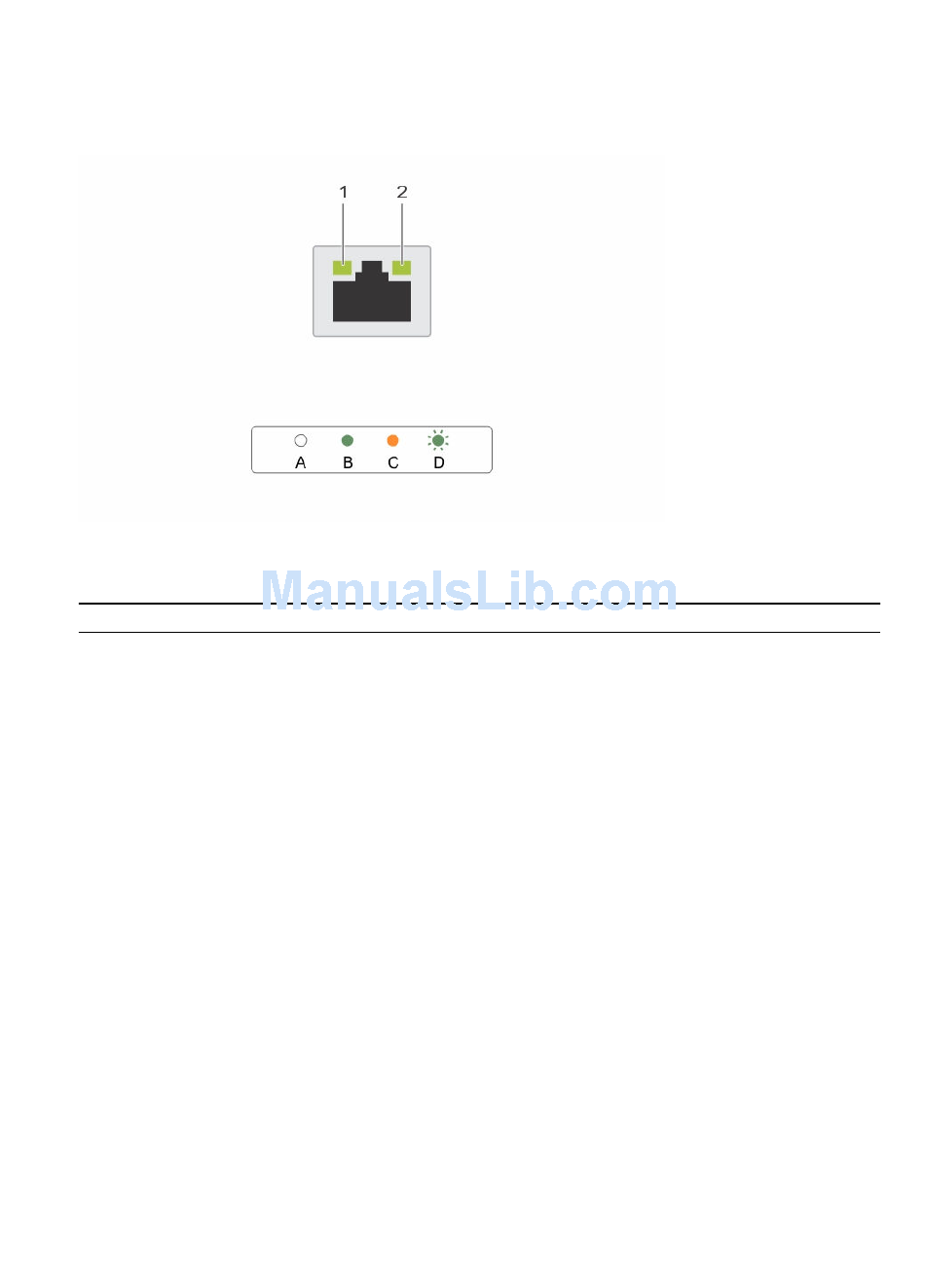

Figure 5. NIC indicators
1.
link indicator
Indicator
Link and activity indicators are off
Link indicator is green
Link indicator is amber
Activity indicator is blinking green
Power supply unit indicator codes
Each AC power supply unit (PSU) has an illuminated translucent handle and each DC PSU (when
available) has an LED that serves as an indicator to show whether power is present or a power fault has
occurred.
2.
activity indicator
Indicator code
The NIC is not connected to the network.
The NIC is connected to a valid network at its
maximum port speed (1 Gbps or 10 Gbps).
The NIC is connected to a valid network at less
than its maximum port speed.
Network data is being sent or received.
