MasterConsole CAT®
User Station
Quick Setup Guide

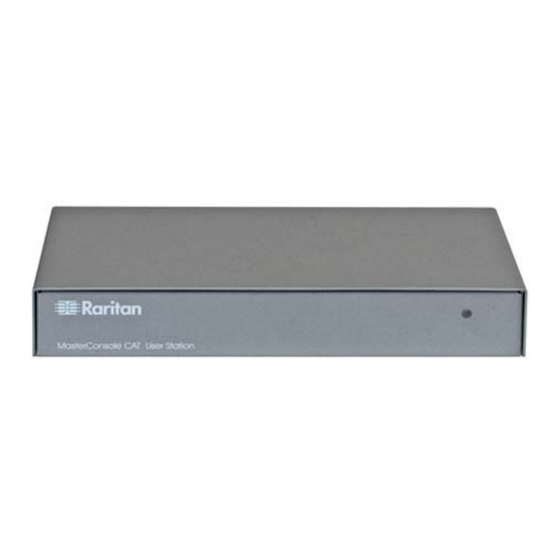

Thank you for your purchase of the MasterConsole CAT (MCCAT) user station, MCCAT-UST, a device for connecting a
set of keyboard, mouse and monitor to any compatible KVM switch, including MCCAT28, MCCAT216, and TMCAT17
series. This Quick Setup Guide explains how to install the product. Follow the instructions carefully to ensure a quick and
easy installation.
For additional information on any aspect of the MasterConsole CAT MCCAT-UST, see the MasterConsole CAT
MCCAT28/216 User Guide, which can be downloaded from the Firmware and Documentation section of Raritan's website
(http://www.raritan.com/support/firmware-and-documentation/).
Package Contents
The package for the MCCAT user station contains:
•
MCCAT user station x 1
•
Power adapter x 1
•
Quick Setup Guide x 1
•
Warranty card x 1
If anything is missing or damaged, contact the local dealer or
Raritan Technical Support for help.
QS Rule

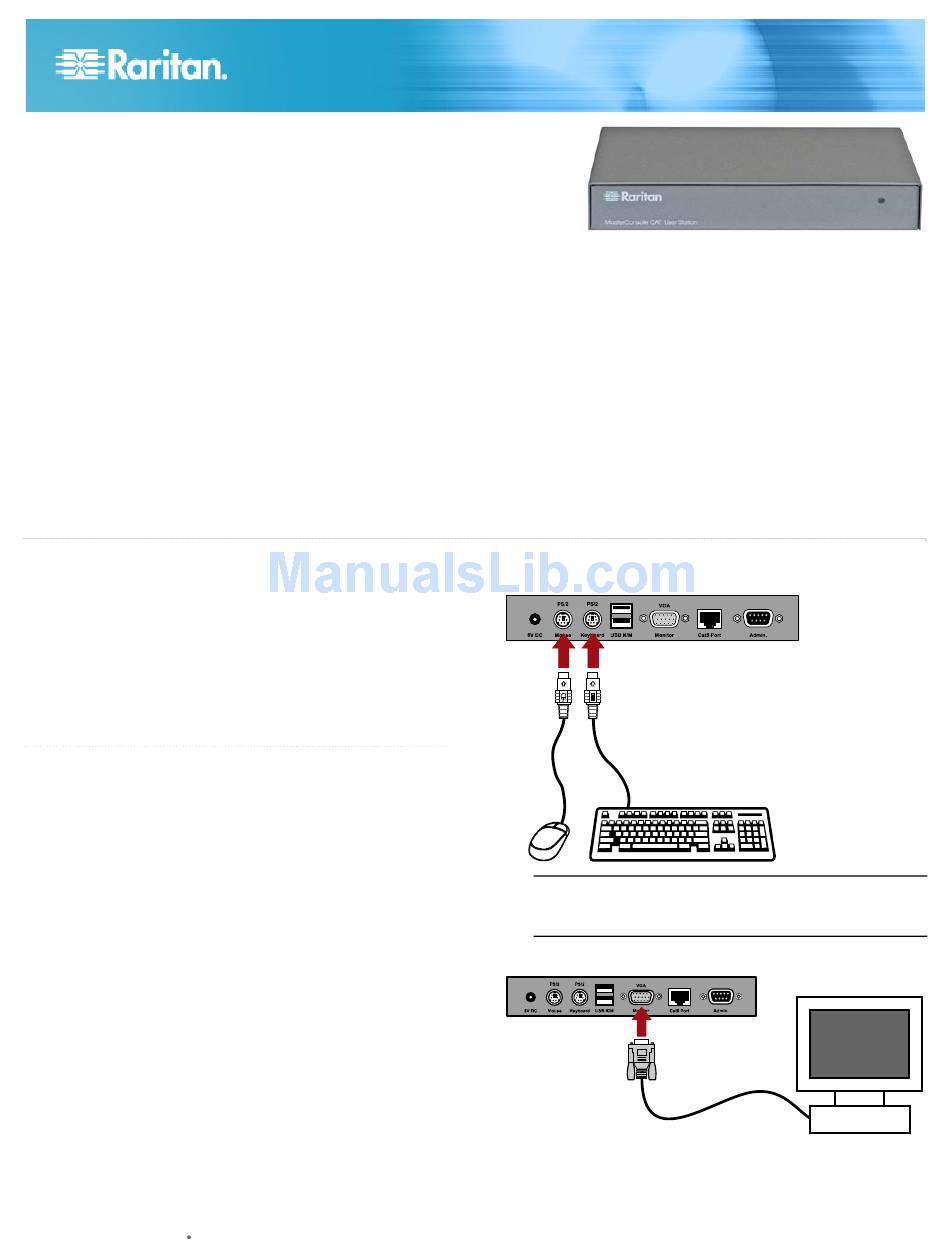

Connecting the User Station to a KVM Switch
You can connect the MCCAT user station to any compatible
KVM switch, such as the "two-user" MCCAT switch or
TMCAT17 series, to increase the number of users who can
access the KVM switch and computers.
1. Connect the PS/2 or USB keyboard and mouse to the user
station.
a. Plug the mouse's connector into the PS/2 or USB port
on the user station.
MCCAT-UST QSG
QSG-MCCUST-0B-v2.1-E 255-31-1040-00
b. Plug the keyboard's connector into the PS/2 or USB
port on the user station.
Warning: Do NOT connect both PS/2 and USB keyboards
or both PS/2 and USB mice simultaneously. If you do so,
only the USB keyboard and/or mouse work properly.
2. Connect the VGA monitor to the user station.
3. Connect the user station to the KVM switch via a standard
Cat5 UTP cable.
1
