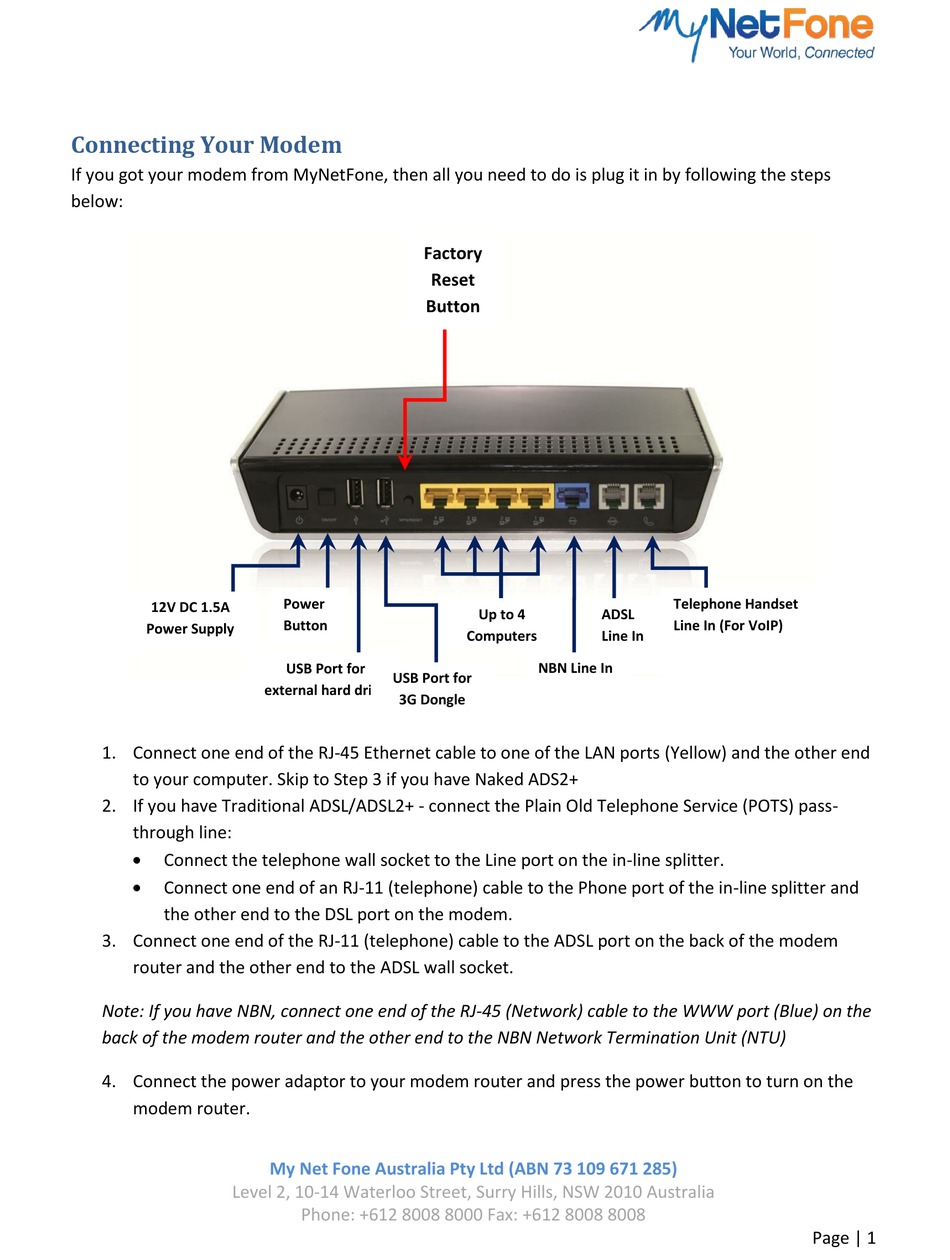

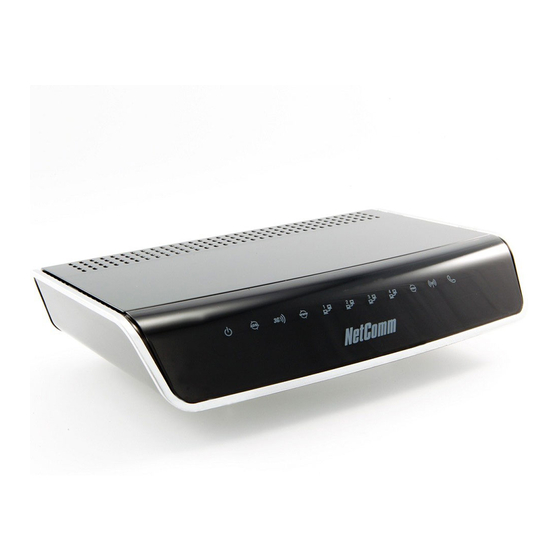

NetComm NB16WV Connecting Manual

Connecting Your Modem

If you got your modem from MyNetFone, then all you need to do is plug it in by following the steps
below:
12V DC 1.5A
Power Supply
1. Connect one end of the RJ-45 Ethernet cable to one of the LAN ports (Yellow) and the other end
to your computer. Skip to Step 3 if you have Naked ADS2+
2. If you have Traditional ADSL/ADSL2+ - connect the Plain Old Telephone Service (POTS) pass-
through line:

Connect the telephone wall socket to the Line port on the in-line splitter.

Connect one end of an RJ-11 (telephone) cable to the Phone port of the in-line splitter and
the other end to the DSL port on the modem.
3. Connect one end of the RJ-11 (telephone) cable to the ADSL port on the back of the modem
router and the other end to the ADSL wall socket.
Note: If you have NBN, connect one end of the RJ-45 (Network) cable to the WWW port (Blue) on the
back of the modem router and the other end to the NBN Network Termination Unit (NTU)
4. Connect the power adaptor to your modem router and press the power button to turn on the
modem router.
