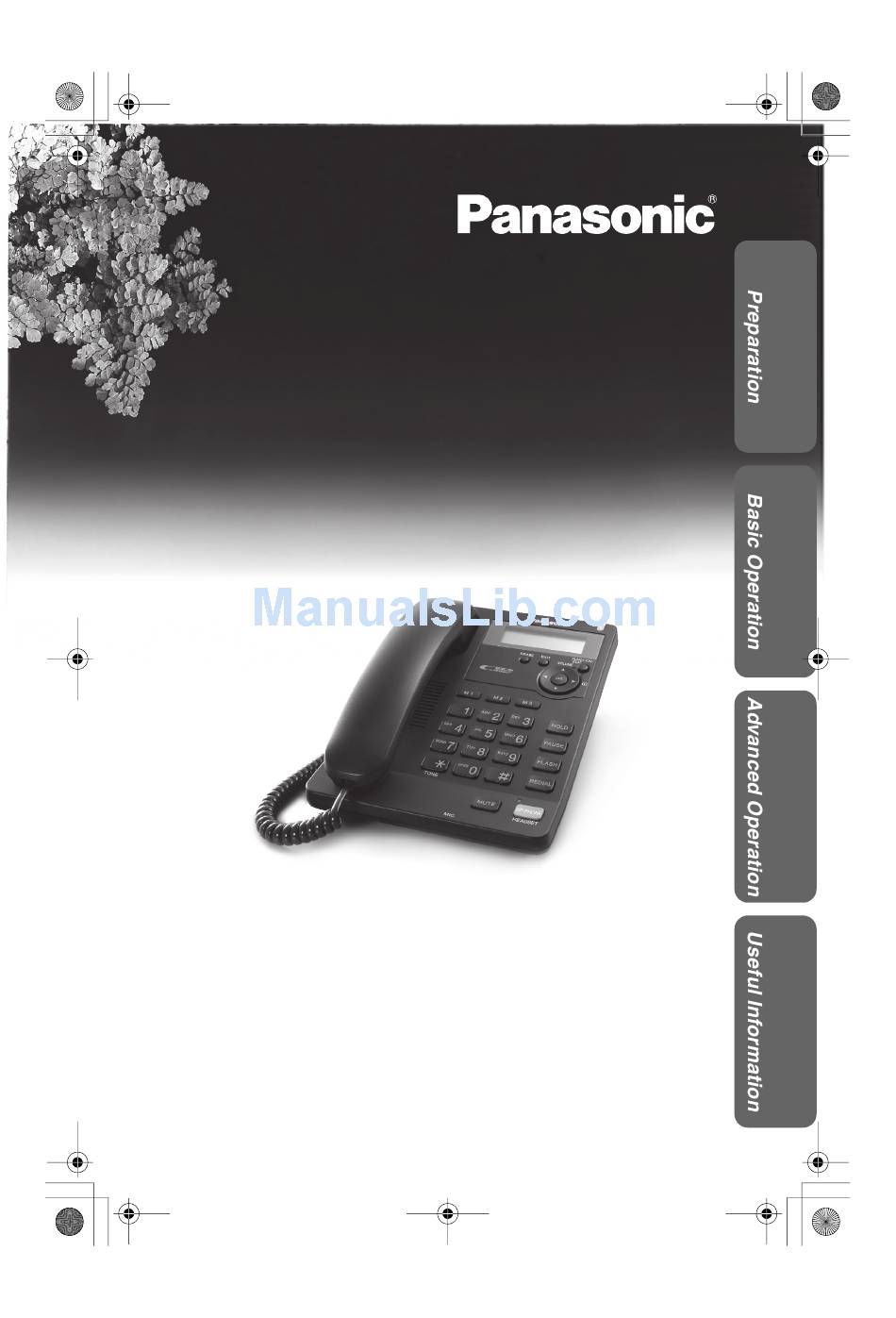

TS600CW_B02.book Page 1 Tuesday, January 24, 2006 10:57 AM
Integrated Telephone System
Operating Instructions
KX-TS600CB
Model No.
Pulse-or-tone dialing capability
This unit is compatible with Call Display. To use this feature, you must
subscribe to the appropriate service offered by your service provider.
Please read these Operating Instructions before using the unit and save
for future reference.
For assistance, please call 1-800-561-5505 or visit us at www.panasonic.ca

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TS600CB

Summary of Contents for Panasonic KX-TS600CB

  • Page 1 This unit is compatible with Call Display. To use this feature, you must subscribe to the appropriate service offered by your service provider. Please read these Operating Instructions before using the unit and save for future reference. For assistance, please call 1-800-561-5505 or visit us at www.panasonic.ca...

  • Page 2: Before Initial Use

    TS600CW_B02.book Page 2 Tuesday, January 24, 2006 10:57 AM Before Initial Use Please read IMPORTANT SAFETY INSTRUCTIONS on page 51 before use. Read and understand all instructions. Thank you for purchasing your new Panasonic integrated telephone. For your future reference Serial No.

  • Page 3: Table Of Contents

    TS600CW_B02.book Page 3 Tuesday, January 24, 2006 10:57 AM Contents Preparation Advanced Operation Location of Controls..4 Phonebook....28 Storing Names and Phone Display .

  • Page 4: Location Of Controls

    TS600CW_B-Setting02.fm Page 4 Wednesday, January 25, 2006 8:30 PM Location of Controls [FUNCTION/EDIT] Button (p. 8, 23) [EXIT] Button (p. 8, 21) [ERASE] Button (p. 27, 33) Display (p. 5) Direct Dial Buttons (p. 25, 34) RINGER Indicator Headset Jack (p. 45) (p.

  • Page 5: Display

    TS600CW_B02.book Page 5 Tuesday, January 24, 2006 10:57 AM Display (This display shows all of the possible configurations.) While the unit is not in use, the display shows 12:00AM 12/31 the current time and date, and the number of 10 missed calls missed calls.

  • Page 6: Settings

    Cord Telephone Jack (RJ11C) • Use only a Panasonic Handset for the KX-TS600CB. • Use only the telephone line cord included with the unit. • If your unit is connected to a PBX which does not support Call Display services,...

  • Page 7: Device

    TS600CW_B02.book Page 7 Tuesday, January 24, 2006 10:57 AM If you subscribe to a DSL service • Please attach a noise filter (contact your DSL provider) to the telephone line between the base unit and the telephone line jack in the event of the following: =Noise is heard during conversations.

  • Page 8: Programming Summary

    TS600CW_B-Setting02.fm Page 8 Thursday, January 26, 2006 8:58 AM Settings Programming Summary You can program the following functions. The display shows the programming instructions. See the corresponding pages for function details. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.

  • Page 9: Time And Date

    TS600CW_B02.book Page 9 Tuesday, January 24, 2006 10:57 AM Time and Date You can select AM/PM or 24-hour clock by programming. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off. Press [FUNCTION/EDIT]. Scroll to “Set clock ?”...
  • Page 10 TS600CW_B02.book Page 10 Tuesday, January 24, 2006 10:57 AM Settings Press [#] to select “AM”, “PM” or 24-hour #=AM/PM/24H clock. [OK]=Next (Example: You select “PM”.) Display Option 24-hour clock • Each time you press [#], the selection will change on the display. Press [OK] (Next key).

  • Page 11: Display Language

    TS600CW_B02.book Page 11 Tuesday, January 24, 2006 10:57 AM Display Language You can select either “English” or “French” as the display language. Your phone comes from the factory set to “English”. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.

  • Page 12: Dialing Mode

    TS600CW_B02.book Page 12 Tuesday, January 24, 2006 10:57 AM Settings Dialing Mode You can select the dialing mode by programming. If you have touch tone service, set to Tone. If rotary or pulse service is used, set to Pulse. Your phone comes from the factory set to Tone.

  • Page 13: Lcd Contrast

    TS600CW_B02.book Page 13 Tuesday, January 24, 2006 10:57 AM LCD Contrast You can select the LCD contrast level from 1 to 4 by programming. Your phone comes from the factory set to 2. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.

  • Page 14: Time Adjustment

    TS600CW_B02.book Page 14 Tuesday, January 24, 2006 10:57 AM Settings Time Adjustment (Call Display subscribers only) Using this feature, the unit’s date and time setting will be automatically adjusted when caller information is received. You can set the auto time adjustment by programming. Your phone comes from factory is set to ON.

  • Page 15: Voice Mail Tone

    TS600CW_B02.book Page 15 Tuesday, January 24, 2006 10:57 AM Voice Mail Tone If your voice mail service offers the option to send a voice mail tone after a new message has been recorded in your mailbox, set to “ON”. “ ”...

  • Page 16: Making Calls

    TS600CW_B02.book Page 16 Tuesday, January 24, 2006 10:57 AM Making Calls You can make a call by simply lifting the handset. To hang up, place the handset on the cradle. Using the speakerphone Press [SP-PHONE/HEADSET], then dial a phone number. Dial a phone number, then press 12:34PM 5/21...
  • Page 17 TS600CW_B02.book Page 17 Tuesday, January 24, 2006 10:57 AM To redial the last number dialed Using the handset: Lift the handset press [REDIAL]. Press [REDIAL] Lift the handset. Using the speakerphone: Press [SP-PHONE/HEADSET] press [REDIAL]. Press [REDIAL] press [SP-PHONE/ HEADSET]. To redial using the redial list (Memory Redial) The last 20 phone numbers dialed are stored in the redial list.

  • Page 18: Answering Calls

    TS600CW_B02.book Page 18 Tuesday, January 24, 2006 10:57 AM Making Calls To put a call on hold Press [HOLD]. • The SP-PHONE/HEADSET indicator flashes. • If using the handset, you can place it on the cradle. • During the hold, both parties will hear music. For canceling music, see page 40. To release the hold If the handset is on the cradle, lift the handset.

  • Page 19: Call Display Service

    TS600CW_B02.book Page 19 Tuesday, January 24, 2006 10:57 AM Call Display Service This unit is compatible with a Call Display service offered by your telephone company. If you subscribe to a Call Display service, the calling party’s information will be displayed when the unit is ringing. The unit can record information of up to 50 incoming calls, including the time and date received, in the Caller List.

  • Page 20: Call Waiting Deluxe Service

    TS600CW_B-CallerIDService02.fm Page 20 Tuesday, January 24, 2006 2:23 PM Call Waiting Deluxe Service This unit is compatible with a Call Waiting Deluxe Service offered by your telephone company. After subscribing, Call Waiting Deluxe Service not only allows the unit to display the second caller’s information, but also offers you a variety of ways to deal with the second call (p.

  • Page 21: Using The Caller List

    TS600CW_B02.book Page 21 Tuesday, January 24, 2006 10:57 AM Using the Caller List If you have received 10 missed calls, the 12:34AM 5/21 number of missed calls will be displayed as 10 missed calls shown, while the unit is not in use. Viewing the Caller List To check who has called, follow the steps below.

  • Page 22: Calling Back From The Caller

    TS600CW_B02.book Page 22 Tuesday, January 24, 2006 10:57 AM Using the Caller List Display meaning: You have checked this caller information, answered the call or called back the caller. Calling Back from the Caller List Press [ ] or [ ] to enter the Caller List.

  • Page 23: Editing The Caller's Phone Number

    TS600CW_B02.book Page 23 Tuesday, January 24, 2006 10:57 AM Editing the Caller’s Phone Number You can edit a phone number in the Caller List by removing its area code and/or the long distance code “1”. Press [ ] or [ ] to enter the Caller List.

  • Page 24: Storing Caller List Information In The Phonebook

    TS600CW_B02.book Page 24 Tuesday, January 24, 2006 10:57 AM Using the Caller List Storing Caller List Information in the Phonebook You can store numbers that are in the Caller List in the Phonebook. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.

  • Page 25: Storing Caller List Information In The Direct Dial Memory

    TS600CW_B02.book Page 25 Tuesday, January 24, 2006 10:57 AM Storing Caller List Information in the Direct Dial Memory You can store numbers that are in the Caller List in the Direct Dial memory ([M1], [M2] and [M3]). Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.
  • Page 26 TS600CW_B02.book Page 26 Tuesday, January 24, 2006 10:57 AM Using the Caller List If the Direct Dial button selected is M1 is occupied occupied, the display on the right will Overwrite ? ] =No [OK]=Yes be shown. To overwrite, press [OK] (Yes key). To select the other empty Direct Dial memory, press [ ] (No key), press an...

  • Page 27: Erasing Caller List Information

    TS600CW_B02.book Page 27 Tuesday, January 24, 2006 10:57 AM Erasing Caller List Information After checking the Caller List, you can erase some or all of the entries. Make sure that the handset is on the cradle, and the SP-PHONE/ HEADSET indicator light is off. To erase a specific caller from the Caller List Press [ ] or [...

  • Page 28: Phonebook

    TS600CW_B02.book Page 28 Tuesday, January 24, 2006 10:57 AM Phonebook Storing Names and Phone Numbers in Phonebook You can store up to 50 names and phone numbers in memory. Make sure that the handset is on the cradle, and the SP-PHONE/ HEADSET indicator light is off.

  • Page 29: Selecting Characters To Enter Names

    TS600CW_B02.book Page 29 Tuesday, January 24, 2006 10:57 AM Selecting characters to enter names The dialing buttons ([0] to [9], [ ] and [#]) can be used to enter letters and £ symbols. Pressing each button selects a character as shown below. Number of times key is pressed Keys &...

  • Page 30: Dialing From The Phonebook

    TS600CW_B02.book Page 30 Tuesday, January 24, 2006 10:57 AM Phonebook Dialing from the Phonebook Make sure that the handset is on the cradle, and the SP-PHONE/ HEADSET indicator light is off. Press [ ] or [ ] to enter the Phonebook. Phonebook 10 items Scroll to the desired item by using...

  • Page 31: Chain Dial

    TS600CW_B02.book Page 31 Tuesday, January 24, 2006 10:57 AM Index table Keys Index Keys Index Symbols, 1, No name P, Q, R, S, 7 A, B, C, 2 T, U, V, 8 D, E, F, 3 W, X, Y, Z, 9 ¢...

  • Page 32: Editing

    TS600CW_B02.book Page 32 Tuesday, January 24, 2006 10:57 AM Phonebook Editing Make sure that the handset is on the cradle, and the SP-PHONE/ HEADSET indicator light is off. Press [ ] or [ ] to enter the Phonebook. Scroll to the Phonebook item you want to Jane change by using [ ] or [...

  • Page 33: Erasing

    TS600CW_B02.book Page 33 Tuesday, January 24, 2006 10:57 AM Erasing Make sure that the handset is on the cradle, and the SP-PHONE/ HEADSET indicator light is off. Press [ ] or [ ] to enter the Phonebook. Scroll the Phonebook item you want erase by using [ ] or [ •...

  • Page 34: Direct Dial (M1, M2, M3)

    TS600CW_B02.book Page 34 Tuesday, January 24, 2006 10:57 AM Direct Dial (M1, M2, M3) Storing Names and Phone Numbers in Memory You can store up to 3 names and phone numbers in the Direct Dial memory. Make sure that the handset is on the cradle and the SP-PHONE/ HEADSET indicator light is off.
  • Page 35 TS600CW_B02.book Page 35 Tuesday, January 24, 2006 10:57 AM If the Direct Dial button selected is M1 is occupied occupied, the display on the right will Overwrite ? ]=No [OK]=Yes be shown. To overwrite, press [OK] (Yes key). To select other empty Direct Dial memory, press [ ] (No key), then press an empty Direct Dial button ([M1], [M2] or...

  • Page 36: Dialing

    TS600CW_B02.book Page 36 Tuesday, January 24, 2006 10:57 AM Direct Dial (M1, M2, M3) Dialing Lift the handset or press [SP-PHONE/HEADSET]. Press the required Direct Dial button ([M1], [M2] or [M3]). • The stored number is displayed and dialed. Press the required Direct Dial button ([M1], [M2] or [M3]). •...

  • Page 37: Special Features

    TS600CW_B02.book Page 37 Tuesday, January 24, 2006 10:57 AM Special Features [ERASE] [EXIT] £ ] (TONE) [FUNCTION/EDIT] ], [ ], [OK] [PAUSE] [FLASH] [MUTE] Temporary Tone Dialing (For Rotary or Pulse Service Users) Press [ ] (TONE) before entering access numbers which require tone £...

  • Page 38: Service

    TS600CW_B-Speed Dialer02.fm Page 38 Tuesday, January 24, 2006 2:38 PM Special Features Visual Call Waiting Call Display Feature Visual Call Waiting Call Display Feature allows JOHNSON,KEVIN your unit to display the second caller’s 123-456-7890 information. After you hear a call-waiting tone while talking, the unit will display the caller’s name, phone number and “...
  • Page 39 TS600CW_B-Speed Dialer02.fm Page 39 Tuesday, January 24, 2006 3:29 PM When you hear a call-waiting tone while SMITH,JACK talking, the second-caller’s information is 111-444-7777 displayed. Press [FLASH]. 1:Ans 4:Fwd 2:Hold 5:Drop • The option menu is displayed. 3:Annouce 6:Conf Enter a displayed option number (1 to 6) to select the desired option.

  • Page 40: Muting Your Conversation

    TS600CW_B02.book Page 40 Tuesday, January 24, 2006 10:57 AM Special Features Muting Your Conversation Press [MUTE] while talking. “ ” is displayed. • The other party cannot hear you but you can hear them. • To resume the conversation, press [MUTE] again. Setting Hold Music to ON/OFF You can set music to play during the hold as follows.

  • Page 41: Flash Button

    TS600CW_B02.book Page 41 Tuesday, January 24, 2006 10:57 AM FLASH Button Pressing [FLASH] allows you to use special features of your host PBX such as transferring an extension call or accessing special telephone services (optional) such as call waiting. Selecting the flash time The flash time depends on your telephone exchange or host PBX.

  • Page 42: Setting The Password

    • The display will return to step 3. To exit the programming mode, press [EXIT] or wait for 60 seconds. • You can exit the programming mode any time by pressing [EXIT]. Please write down your password. If you forget your password, consult your nearest Panasonic service center.

  • Page 43: Call Restriction

    TS600CW_B02.book Page 43 Tuesday, January 24, 2006 10:57 AM Call Restriction You can prevent the unit from dialing phone numbers beginning with specified digit(s) (1 digit or 2 digits). Phone numbers with the restricted leading digits cannot be dialed out, except the emergency numbers (#) stored in the Phonebook and Direct Dial memory ([M1], [M2] or [M3]).

  • Page 44: Voice Mail Service

    TS600CW_B02.book Page 44 Tuesday, January 24, 2006 10:57 AM Special Features Press [OK] (Save key). • A long beep sounds. • The display will return to step 3. To exit the programming mode, press [EXIT] or wait for 60 seconds. When dialing a phone number with the restricted leading digit(s), “CALL RESTRICTED”...

  • Page 45: Optional Headset

    TS600CW_B02.book Page 45 Tuesday, January 24, 2006 10:57 AM Optional Headset Plugging the optional headset into the unit allows a hands-free phone conversation. Please use only a Panasonic KX-TCA86, KX-TCA91 or KX-TCA92. Connecting the Optional Headset to the Unit Connect the optional headset to the headset jack as shown below.

  • Page 46: Wall Mounting

    TS600CW_B02.book Page 46 Tuesday, January 24, 2006 10:57 AM Wall Mounting This unit can be mounted on a wall. Press the tabs in the direction of the arrows (1), then remove the wall mounting adaptor (2). Tuck the telephone line cord inside the wall mounting adaptor, and push it in the direction of...

  • Page 47: Battery Replacement

    TS600CW_B02.book Page 47 Tuesday, January 24, 2006 10:57 AM Battery Replacement If “ ” flashes, the battery power is low. Install new batteries as soon as possible. If batteries are not replaced even after the “ ” is displayed, the unit may not work properly.

  • Page 48: Troubleshooting

    TS600CW_B02.book Page 48 Tuesday, January 24, 2006 10:57 AM Troubleshooting Problem Cause and Remedy The unit does not work. • Check the settings (p. 6–15). • Remove the batteries and reinstall them to reset the unit. The unit does not ring. •...
  • Page 49 TS600CW_B02.book Page 49 Tuesday, January 24, 2006 10:57 AM Problem Cause and Remedy You cannot store a name • Programming is not possible when the and phone number in handset is off the cradle or the memory. SP-PHONE/HEADSET indicator lights. •...

  • Page 50: Important Information

    TS600CW_B02.book Page 50 Tuesday, January 24, 2006 10:57 AM Important Information NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, “IC:”, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met.

  • Page 51: Important Safety Instructions

    TS600CW_B02.book Page 51 Tuesday, January 24, 2006 10:57 AM Important Safety Instructions When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. Read and understand all the instructions. Follow all warnings and instructions marked on this unit.
  • Page 52 TS600CW_B02.book Page 52 Tuesday, January 24, 2006 10:57 AM Important Safety Instructions CAUTION: To reduce the risk of fire or injury to persons, read and follow these instructions. 1. Use only the battery(ies) specified. 2. Do not dispose of the battery(ies) in a fire. It (they) may explode. 3.

  • Page 53: Specifications

    TS600CW_B02.book Page 53 Tuesday, January 24, 2006 10:57 AM Specifications Power Source: From telephone line From 3 AA (LR6, R6, UM-3) batteries Dimensions (H x W x D): Approx. 91 mm x 165 mm x 220 mm " x 6 "...
  • Page 54 Manufactured for Panasonic Communications (Malaysia) Sdn. Bhd. Senai Malaysia Copyright This material is copyrighted by Panasonic Communications (Malaysia) Sdn. Bhd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic...
  • Page 55 TS600CW_B-BackCover.fm Page 55 Tuesday, January 24, 2006 11:45 AM...

  • Page 56: Warranty

    5770 Ambler Drive, Mississauga, Ontario L4W 2T3 PANASONIC PRODUCT - LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.
