Quadra-Fire 31M-ACC-MBK Owner's Manual
3100 series
automatic combustion control (acc)
installation and operation
Hide thumbs
Also See for 31M-ACC-MBK:
- Owner's manual (52 pages) ,
- Manual (28 pages) ,
- Owner's manual (48 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Manual

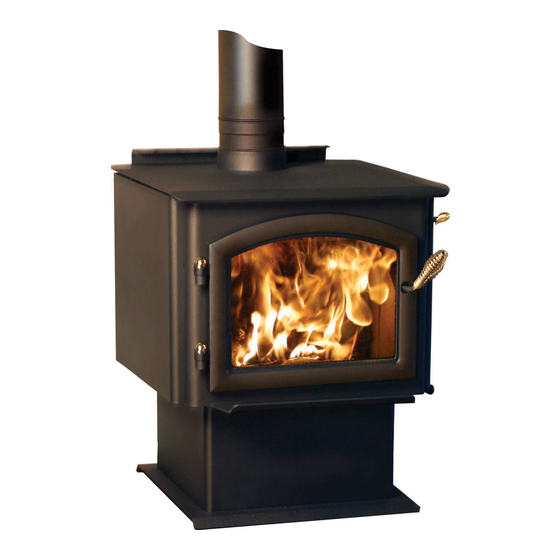

Step Top Uni-Body Model
(Pedestal Model Shown)
•
Important operating
a n d m a i n t e n a n c e
instructions included.
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If heater or chimney con-
nector glows, you are overfiring. Overfiring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this appliance should
be performed by qualified personnel. Hearth &
Home Technologies recommends NFI certified
professionals, or technicians supervised by an
NFI certified professional.
www.quadrafire.com
3100 WOOD STOVE SERIES
Automatic Combustion Control (ACC)
Owner's Manual
Installation and Operation
Models:
31M-ACC-MBK
31ST-ACC
DO NOT DISCARD THIS MANUAL
• Read, understand and
follow these instructions
for safe installation and
operation.
WARNING
Tested and
Listed by
C
OMNI-Test Laboratories, Inc.
CAUTION
• Leave this manual with
party responsible for
use and operation.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as fireplace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other
flammable materials away.
To obtain a French translation of this manual, please
contact your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel,
s'il vous plaît contacter votre revendeur ou visitez
www.quadrafire.com
7033-277I
R
Millennium Model
O-T L
Portland
Oregon USA
US
WARNING
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.
NOTE
July 7, 2011
Advertisement
Table of Contents
Related Manuals for Quadra-Fire 31M-ACC-MBK
Summary of Contents for Quadra-Fire 31M-ACC-MBK
- Page 1 3100 WOOD STOVE SERIES Automatic Combustion Control (ACC) Owner’s Manual Installation and Operation Models: 31M-ACC-MBK Millennium Model 31ST-ACC Step Top Uni-Body Model O-T L Tested and Portland Oregon USA Listed by (Pedestal Model Shown) OMNI-Test Laboratories, Inc. CAUTION DO NOT DISCARD THIS MANUAL •...
- Page 2 3100 Wood Stove Series (ACC) and Welcome to the Quadra-Fire Family Hearth & Home Technologies welcomes you to our tradi- our stoves, inserts and fireplaces. And yet we are old-fash- tion of excellence! In choosing a Quadra-Fire appliance, ioned when it comes to craftsmanship. Each unit is meticu- you have our assurance of commitment to quality, durabil- lously fabricated and surfaces are hand-finished for lasting ity, and performance. beauty and enjoyment. Our pledge to quality is completed as each model undergoes a quality control inspection. This commitment begins with our research of the market, including ‘Voice of the Customer’ contacts, ensuring we We wish you and your family many years of enjoyment in make products that will satisfy your needs. Our Research the warmth and comfort of your hearth appliance. Thank and Development facility then employs the world’s most...
-
Page 3: Table Of Contents
3100 Wood Stove Series (ACC) Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. • NOTICE: Indicates practices which may cause damage to the fireplace or to property. TABLE OF CONTENTS Section 1: Listing and Code Approvals Section 8: Operating Instructions A. Appliance Certifications ......4 A. Over-Firing Your Appliance ....25 B. Mobile Home Approved ......4 B. Wood Selection & Storage ....25 C. Glass Specifications . -
Page 4: Section 1: Listing And Code Approvals
Standard: UL1482 and ULC S627-00 and Heating Capacity: up to1,800 sq ft (UM) 84-HUD, Mobile Home depending on climate zone Approved. Vent Size: 6 inches Firebox Size: 2 cubic feet The Quadra-Fire 3100 Series Wood Stove (ACC) meets the Max Wood Length: 18 inches U.S. Environmental Protection Agency’s 1990 particulate Fuel: Cord Wood emission standards. Shipping Weight: 325 lbs B. Mobile Home Approved WARNING This appliance is approved for mobile home installations when not installed in a sleeping room and when an outside Fire Risk. -
Page 5: Section 2: Getting Started
3100 Wood Stove Series (ACC) Getting Started B. Fire Safety A. Design, Installation & Location Consider ations Consideration must be given to: To provide reasonable fire safety, the following should be given serious consideration: • Safety • Convenience 1. Install at least one smoke detector on each floor of • Traffic flow your home to ensure your safety. They should be • Chimney and chimney connector required... -
Page 6: Negative Pressure
3100 Wood Stove Series (ACC) C. Negative Pressure To minimize the affects of negative air pressure the following Draft is the pressure difference needed to vent appliances must be considered: successfully. Considerations for successful draft include: • Install the outside air kit. Install the intake on the • Preventing negative pressure side of the house towards prevailing winds during the • Location of appliance and chimney heating season. • Ensure adequate outdoor air is supplied for combus- Negative pressure results from the imbalance of air avail- tion appliances and exhaust equipment. able for the stove to operate properly. Causes for this imbal- ance include: • Ensure furnace and air conditioning return vents are not located in the immediate vicinity of the appli- • Exhaust fans (kitchen, bath) etc.) ance,... -
Page 7: Flue Draft Considerations
3100 Wood Stove Series (ACC) F. Tools And Supplies Needed D. Flue Draft Considerations Location of the appliance and chimney will affect perfor- Before beginning the installation be sure that the following mance. As shown in Figure 6.1 on page 6 the chimney tools and building supplies are available. should: • Be installed through the warm space enclosed by the Framing Material Reciprocating saw building envelope. This helps to produce more draft, Hi-Temp Caulking Material... -
Page 8: Typical Stove System
3100 Wood Stove Series (ACC) Spark Arrestor Cap H. Typical Stove Systems Fireclay Flue Liner Concrete Cap With Air Space Stove system with masonry chimney consists of: Rafter • Stove Flashing • Chimney Connector (stove pipe) 1" (25mm) Clearance • Thimble With Firestop Ceiling Joist • Masonry Chimney Eave • Hearth Pad Floor Protection Combustible Wall Thimble,... -
Page 9: Appliance Dimensions
3100 Wood Stove Series (ACC) Dimensions and Clearances A. Appliance Dimensions 25 in. (635mm) 9-15/16 in. 12-1/2 in. (237mm) (318mm) NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 10-15/16 in. (271mm) 15-1/16 in. 14-15/16 in. (383mm) (373mm) Millennium Model 18-15/16 in. 30 in. (475mm) (762mm) Figure 9.1 Front View 26-11/16 in. (668mm) 24-5/16 in. (618mm) 6-11/16 in. - Page 10 3100 Wood Stove Series (ACC) Appliance Dimensions (Cont’d) 3100 Step Top Pedestal Model 3100 Step Top Leg Model 25 in. (635mm) 12-1/2 in. 9-5/16 in. (318mm (237mm) 14-15/16 in. 19-1/16 in. (379mm) (484mm) 33-1/8 in. 10-15/16 in. 15-1/16 in. (841mm) (278mm) (383mm) 34-1/4 in. (870mm) 18 in. (457mm 23-7/8 in. (606mm) Figure 10.1 Figure 10.3 26-11/16 in.(678mm) 6-11/16 in.
-
Page 11: Clearances To Combustibles
3100 Wood Stove Series (ACC) B. Clearances to Combustibles (UL and ULC) BACKWALL / SIDEWALL ALCOVE SIDE VIEW NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction 90° OFF TOP UP & OUT CEILING CLEARANCE CORNER INSTALLATION STOVE TO CEILING... -
Page 12: Hearth Requirements
3100 Wood Stove Series (ACC) Installation In Canada, similar floor protection must be provided 18 A. Hearth Protection Requirements inches (457mm) in front and 8 inches (203mm) from the FLOOR PROTECTION: Floor protector must be non-com- sides and rear of the stove. *See exception. bustible material, extending beneath heater and to the front, *EXCEPTION: Non-combustible floor protections must sides and rear as indicated. The floor must be non-com- extend beneath the flue pipe when installed with horizontal bustible or otherwise adequately protected from radiant heat... - Page 13 3100 Wood Stove Series (ACC) Step-Top Uni-Body Model For the Step Top Pedestal Model In US installations, For the Step Top Leg Model In US installations, it is neces- it is necessary to install a floor protector of a minimum of sary to install a floor protector of a minimum thickness of 1-1/4 3/8 inch (9.5mm) thick metal clad millboard or equivalent inch (32mm) or 1/2 inch of “k” value of 0.84 or R value = 0.59 a minimum of 16 inches (406mm) in front of glass and thick metal clad millboard or equivalent a minimum of 16 inches 8 inches (203mm) to both sides of the fuel loading door. (406mm) in front of glass and 8 inches (203mm) to both sides Open the door and measure 8 inches (203mm) from the of the fuel loading door. Open the door and measure 8 inches side edge of the opening in the face of the appliance. (203mm) from the side edge of the opening in the face of the *See page 12 for Canadian clearances and horizontal appliance. *See page 12 for Canadian clearances and hori-...
-
Page 14: Outside Air
3100 Wood Stove Series (ACC) B. Outside Air Kit Installation WARNING A source of air (oxygen) is necessary in order for combus- Fire Risk. tion to take place. Whatever combustion air is consumed Asphyxiation Risk. by the fire must be replaced. Air is replaced via air leak- Do not draw outside combustion air from: age around windows and under doors. In homes that have tightly sealed doors and windows, an outside air source is • Wall, floor or ceiling cavity needed. An optional Outside Air Kit is available. • Enclosed space such as an attic or garage • Close proximity to exhaust vents or Included in OAK-ACC: Termination cap, (2) wire ties, flex chimneys adapter, and fasteners Fumes or odor may result Included in SRV7033-041: C over plate and sealing rope (see Floor Installation Alternative below,... -
Page 15: Blower Installation
Do not remove. 3100 Wood Stove Series (ACC) C. Blower (Optional) CAUTION 1. Remove the 3 bolts (1/4”-20 Phillips head) on the outer skin at the bottom rear of appliance. Shock Risk. 2. Align holes in mounting flange of blower with bolt holes in • Do NOT remove grounding prong from plug. appliance. Blower should be positioned at bottom of rear • Plug directly into properly grounded 3 prong outer skin as shown in Figure 15.1. receptacle. • Route cord away from appliance. 3. Re-insert and tighten bolts, securing blower onto outer • Do NOT route cord under or in front of appliance. wall of appliance. 4. Place the bracket containing the snap disc and magnet under the bottom left rear corner as shown in Figure 15.1. -
Page 16: Section 5: Chimney Requirements
3100 Wood Stove Series (ACC) Chimney Requirements A. Venting Components B. Chimney Systems Chimney Connector: Prefabricated Metal Chimney It is also known as flue pipe or stove pipe. The chimney • Must be minimum 6 inch (152mm) diameter (ID) high connector joins the stove to the chimney. It must be a 6 inch temperature chimney listed to UL 103 HT (2100 F) or (152mm) minimum diameter 24 gauge mild steel black or ULC S629M. 26 gauge blued steel, or an approved air-insulated double • Must use components required by the manufacturer for wall venting pipe. installation. Thimble: • Must maintain clearances required by the manufacturer A manufactured or site-constructed device installed in for installation. - Page 17 3100 Wood Stove Series (ACC) Thimble Site constructed for masonry chimney installation: ceiling Components 13.5” below ceiling to top • A minimum length of 12 inches [305mm] (longer for of opening Wall or top of opening is a min.of thicker walls) of solid insulated factory-built chimney 4.5”...
-
Page 18: Installing Chimney Components
3100 Wood Stove Series (ACC) Solid Pack Chimney with Metal Supports as a C. Installing Chimney Components Thimble (Cont’d) Chimney Connector Single wall connector or stove pipe. Min. Chimney Clearance to This must be at least 24 gauge mild steel or 26 gauge blue Wall Spacer and Min. Clearance steel. The sections must be attached to the appliance and to Combustibles - 2 inch (51mm) 2 inch (51mm) each other with the crimped (male) end pointing toward the 1 inch (25mm) Air stove. All joints, including the connection at the flue collar, Chimney Flue Space to Chimney should be secured with 3 sheet metal screws. Make sure Liner Section to follow the minimum clearances to combustibles. Where Fireclay passage through the wall, or partition of combustible con- Chimney Liner or... -
Page 19: Chimney Termination Requirements
3100 Wood Stove Series (ACC) D. Chimney Termination Requirements NOTE: Follow manufacturers instructions for clearance, securing, • Chimney performance may vary. flashing and terminating the chimney. • Trees, buildings, roof lines and wind conditions affect • performance. Must have an approved and listed cap • Chimney height may need adjustment if smoking or • Must not be located where it will become plugged by overdraft occurs. snow or other material • Must terminate at least 3 feet (91cm) above the roof and at least 2 feet (61cm) above any portion of the roof within 10 feet (305cm). • Must be located away from trees or other struc- tures E. -
Page 20: Section 6: Mobile Home
3100 Wood Stove Series (ACC) Mobile Home Installation You must use a Quadra-Fire Outside Air Kit Part OAK-ACC and (depending on floor installation), Part SparkArestor Cap SRV7033-041 for installation in a mobile home. 1. An outside air inlet must be provided for combustion See Storm Collar page 14 for installation information. 2. Appliance must be secured to the mobile home structure Roof Flashing by bolting the pedestal through hearth pad and into floor. -
Page 21: Section 7: Appliance Set-Up
3100 Wood Stove Series (ACC) Appliance Set Up A. Pedestal Assembly and Ash Removal System (ARS) Installation for Step Top Uni-body NOTE: The Ash Removal System, must be installed first before installing the pedestal. ARS Cover Included in Kit: Door assembly, door handle & magnet, ash drawer, fastener package. A cover plate that is required for a floor outside air installation on a pedestal model is also included, If not needed, discard. -
Page 22: Pedestal & Ash Removal System
3100 Wood Stove Series (ACC) Pedestal and Ash Removal System (Cont’d) Installing Pedestal Assembly 1. Remove screws on adapter and slide pedestal over adapter on bottom of stove. Figure 22.1. 2. Line up holes in sides of pedestal with holes in adapter. Cover 3. Securely tighten pedestal into place. 4. Carefully stand stove up and place in desired location. 5. Slip wooden decorative strips onto pedestal edges. Channel Finishing the ARS Installation 1. Re-install the ARS channel that was removed in Step 3 on page one and secure with 2 bolts previously removed. -
Page 23: Leg Kit & Ash Removal System (Ars) Installation
3100 Wood Stove Series (ACC) B. Leg Kit and Ash Removal Installation (ARS) for Step Top Uni-Body NOTE: The Ash Removal System, must be installed first before installing the legs. Begin installing the ARS System. 1. Follow steps 1 through 6 on page 22. See also Figures Lay stove flat on its 21.2 and 21.3. -
Page 24: Door Handle Assembly
3100 Wood Stove Series (ACC) C. Door Handle Assembly E. Calculating Alternate Floor Protection Material 1. Install washer on door handle shaft. 2. Slide door handle through door. Thermal Conductivity: k value 3. Install second washer(s) as shown. The k value indicates the amount of heat (in BTU’s) that will flow 4. Install key in groove. in 1 hour through 1 square foot of a uniform material 1 inch thick 5. Align groove in latch cam with key; slide latch cam for each degree (F) of temperature difference from one side of over shaft the material to the other. The LOWER the k factor means less heat is being conducted through the non-combustible material to 6. Install locknut but do not overtighten as the door the combustible material beneath it. The k value of a material handle needs to move smoothly. must be equal or smaller then the required k value to be accept- 7. Install spring handle turning in a counter-clockwise able. -
Page 25: Section 8: Operating Instructions
C. Burning Process • Metal warping In recent years there has been an increasing concern about • Chimney fire air quality. Much of the blame for poor air quality has been placed on the burning of wood for home heating. In order to 2. What To Do if Your Stove is Over-Firing improve the situation, we at Quadra-Fire have developed cleaner-burning woodstoves that surpass the requirements • Immediately close the door and air controls to reduce for emissions established by our governing agencies. These air supply to the fire. woodstoves, like any other appliances, must be properly • If you suspect a chimney fire, call the fire department operated in order to insure that they perform the way they are and evacuate your house. -
Page 26: Automatic Combustion Control (Acc)
3100 Wood Stove Series (ACC) 2. Second Stage The second function of the Start-Up Air Control is operation The next stage of burning, the secondary stage, is the period of the rear air system. The rear air is used primarily during when the wood gives off flammable gases which burn above a High Burn Rate. However, in some instances rear air is the fuel with bright flames. During this stage of burning it is desired during normal operation to help with combustion of very important that the flames be maintained and not allowed fuel towards the back of the firebox particularly when burning to go out. This will ensure the cleanest possible fire. If the hardwoods. The rear air is controlled independently from the flames tend to go out, it is set too low for your burning condi- ACC system. Slide the Start-Up Air Control between the first tions. The air control located at the upper right hand corner and third marker as indicated on the label to allow rear air to is used to adjust for burn rates. This is called the Burn Rate enter the firebox. Figure 26.1. Air Control. Figure 26.1. 2. Manual Timer Over-Ride 3. Final Stage If you need to shut the ACC system off before it shuts itself he final stage of burning is the charcoal stage. This occurs off after 25 minutes (i.e. overfire situation), reach down to when the flammable gases have been mostly burned and only the bottom right rear corner and pull the lever toward you. -
Page 27: Burn Rates & Operating Efficiency
3100 Wood Stove Series (ACC) 2. Burn Rate Air Control 4. Medium-Low Burn Rate - 10,000 to 15,000 BTU/hr This air supply enters at the upper front of the firebox, near the Raise the Burn Rate Air Control up to the bottom of top of the glass door. This preheated air supplies the neces- the middle marker and stop. Slide the Start-Up Air sary fresh oxygen to mix with the unburned gases, helping Control all the way back until it stops (HI marker) and to create second, third and fourth combustions. This air is then pull forward until it stops. This activates the timer regulated by the Burn Rate Air Control. There are four settings system (ACC). High, Medium-High, Medium-Low and Low. When the control 5. Low Burn Rate - Below 10,000 BTU/hr is raised all the way up it is on the High setting and when Leave the Burn Rate Air Control at the bottom marker. pushed all the down it is on the Low setting. Figure 27.1. -
Page 28: Building A Fire
3100 Wood Stove Series (ACC) G. Building A Fire Baffle Board even with front Before lighting your first fire in the stove: tube & resting on all tubes 1. Confirm the baffle is correctly positioned. It should be even with the front tube and resting on all tubes. Figure 28.1. 2. Follow instructions on page 33 for cleaning plated sur- Burn Rate faces, if applicable. Air Control 3. Remove all labels from glass. Start-Up There are many ways to build a fire. The basic principle is to light easily-ignitable tinder or paper, which ignites the Control fast burning kindling, which in turn ignites the slow-burning firewood. Here is one method that works well: 1. Open the Burn Rate Air and Start-Up Air Controls fully. -
Page 29: Baffle & Blanket Placement
3100 Wood Stove Series (ACC) H. Correct Baffle & Blanket Placement INCORRECT POSITIONS WARNING Fire Risk Firebox damage due to improper baffle place- ment is not covered by warranty. Operate the wood burning appliance with the baffle in the correct position only. Not doing so could result in: • Reduced efficiency • Overheating the chimney • Overheating the rear of the firebox Ceramic Blanket and Baffle Board are NOT in • Poor performance contact with the back of the firebox. Ensure correct baffle placement and replace baffle com- ponents if damaged or missing. CAUTION The baffle boards are FRAGILE. Use extreme caution when loading firewood to prevent:... -
Page 30: Blower Operating Instructions
3100 Wood Stove Series (ACC) J. Opacity (Smoke) I. Blower Operating Instructions NOTE: If your Quadra-Fire wood stove is equipped with an This is the measure of how cleanly your appliance is burn- ing. Opacity is measured in percent; 100% opacity is when optional blower, you should follow these guidelines: an object is totally obscured by the smoke column from a 1. Initial (cold) start-up and all Burn Settings chimney, and 0% opacity means that no smoke column can The blower can be plugged in and turned on right away. be seen. As you become familiar with your appliance, you The blower fan is turned on and off by a snap disc. -
Page 31: Maintaining & Servicing Appliance
3100 Wood Stove Series (ACC) Maintaining & Servicing Your Appliance A. Quick Reference Maintenance Guide BAFFLE & BLANKET PLACEMENT INSPECT FIREBRICKS & ASH COVER (AFTER EACH CLEANING) Step Top Models Only Baffle and blanket placement is critical to heat out- Firebrick is designed to protect your firebox. Replace put, efficiency and overall life of the unit. Make sure firebricks that are crumbling, cracked or broken. If the baffle is pushed all of the way to the back of the you have an optional ash door, check to make sure firebox and the blanket is laying flat. the door is closing properly. CHIMNEY & CAP INSPECTION DOOR &... -
Page 32: General Maintenance & Cleaning
3100 Wood Stove Series (ACC) B. General Maintenance 2. Ash Removal System (ARS) Operating and Cleaning 1. Creosote (Chimney) Cleaning • Frequency: As necessary • By: Homeowner Frequency: Every 2 months during heating season or • as recommended by a certified chimney sweep; more CAUTION frequently if chimney exceeds or is under 14-16 ft. (measured from bottom of appliance) Injury Risk. - Page 33 3100 Wood Stove Series (ACC) 3. Disposal of Ashes 5. Glass Cleaning • Frequency: When ash is within 1-3/4 in. (44mm) of • Frequency: As desired firebox lip • By: Homeowner • By: Homeowner Clean glass with a non-abrasive glass cleaner. Abrasive Ashes should be placed in a metal container with a cleaners may scratch and cause glass to crack. If the tight fitting lid. The closed container of ashes should deposits on the glass are not very heavy, normal glass...
-
Page 34: Glass Replacement
8. Tighten each retainer just a few turns until each is secured. Check again for centering of glass in door frame. Continue to tighten each retainer alternately, a few turns at a time, until the glass is secure. DO NOT OVERTIGHTEN. 9. Replace the door on the appliance. Quadra-Fire stoves are equipped with ceramic super heat-resistant glass, which can only be broken by impact or misuse. Do not slam stove door or impact the glass. When closing door, make sure that logs do not protrude against the glass. Inspect glass regularly. If you find a crack or break, immediately put the fire out and return the door to your dealer for replacement of glass before further use. -
Page 35: Firebrick Replacement
3100 Wood Stove Series (ACC) D. Firebrick Replacement Replace the firebrick if they become crumbly and/or if there is a 1/4 inch (6.35mm) gap between the bricks. Inspect the firebrick after each ash removal. The firebox is lined with high quality firebrick, which has exceptional insulating properties. There is no need to use a grate; simply build a fire on the firebox floor. Do not operate No brick, ARS appliance without firebrick. Grate Location 1. After the coals have completely cooled, remove all old brick and ash from unit and vacuum firebox. 2. Remove new brick set from box and lay out to diagram shown. 9 in. 3. Lay bottom bricks in unit. 1-1/4 in. 1-1/4 in. 4. Install rear bricks on the top of the bottom bricks. Slide top of bricks under clip on back of firebox wall and push bottom of brick back. -
Page 36: Baffle Removal
3100 Wood Stove Series (ACC) F. Snap Disc Replacement E. Baffle Removal 1. Locate the snap disc bracket assembly at the bottom left 1. Remove all ash from the firebox, and extinguish all hot rear corner of the stove. Figure 36. 3 embers before disposal into a metal container. 2. A magnet holds the bracket to the stove. Pull the bracket 2. The baffle board has 2 pieces. With the ceramic blanket down away from the stove to expose the snap disc. still in place, slide one baffle piece over the top of other one and pull out top piece through the door opening and then 3. Pull the snap disc and spade connectors up and out of remove bottom baffle piece. Figure 36.1 bracket as shown in Figure 36.4. -
Page 37: Tube Channel Replacement
3100 Wood Stove Series (ACC) G. Tube Channel Assembly Replacement NOTE: Service Space In order to replace the tube channel assembly a clearance Removing Tube Channel Assembly of 19 inches (483mm) is required on the right side of stove 1. Remove the right side shield by removing 2 screws in the in order to remove the tubes with the stove in place. back using a Phillips head screw driver. If space is not available, the stove will have to be discon- 2. Remove 4 screws from channel access cover and remove nected from the chimney to proceed with the tube replace- cover. ment. 3. Locate 2 channel nuts inside of chamber and remove using a 7/16 socket wrench. Slide out tube channel assembly. -
Page 38: Section 10: Troubleshooting
3100 Wood Stove Series (ACC) With proper installation, operation, and maintenance your woodstove will provide years of trouble-free service. If you do experience a prob- lem, this troubleshooting guide will assist a qualified service person in Troubleshooting the diagnosis of a problem and the corrective action to be taken. Start Fire Problems Possible Cause Solution Can’t get fire started Not enough kindling/paper or no Use dry kindling, more paper. Arrange kindling & Excessive smoke or spillage kindling/paper wood for air movement. Burns too slowly Not enough air for fire to ignite Check for restricted cap/shroud Smolders, sizzles Open outside air kit (if installed). Check for flue blockage. Pre-warm flue before starting fire (refer to starting fire section). Check for adequate vent height (refer to chimney assembly section). Open window below the appliance towards the wind. Wood condition is too wet, too Use dry, seasoned wood (refer to wood fuel sec- large tion). Bed of coals not established Start with paper & kindling to establish bed of before adding wood coals (refer to starting fire section). -
Page 39: Section 11: Reference Material A. Exploded Drawings (Millennium)
Millennium - Wood Stove Beginning Manufacturing Date: July 2006 Advanced Combustion Control (ACC) Ending Manufacturing Date: Active A. Exploded Drawing 31M-ACC-MBK (7/06 - Active), 31M-ACC-GT (7/06 - 10/06), 31M-ACC-NT (7/06 - 10/06) Part number list on following page. 04/11 Figure 39.1... -
Page 40: Srv Parts & Accessories (Mill)
3100 ACC (Millennium) Service Parts Beginning Manufacturing Date: July 2006 Ending Manufacturing Date: Active B. Service Parts & Accessories IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER Air Channel, Convection SRV7033-144 w/Bracket (Retain Original SN Label) Air Supply Back SRV7033-134 Flue Collar SRV7000-302 Panel Assembly, Side, Left 7033-019 Rear Channel Assembly 7033-002 Tube Support Rack 7033-148... - Page 41 3100 ACC (Millennium) Service Parts Beginning Manufacturing Date: July 2006 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER #14 Burn Rate Controls & Accociated Parts 14.10 14.1 14.9 14.2 14.3 14.8 14.4 14.5 14.7 14.6 14.1...
-
Page 42: Door Assembly
Door Glass Assembly - 15-1/2 in. W x 13-3/8 in H 7000-012 17.7 Glass Frame Set 4 Pieces 832-0350 17.8 Cam Latch 430-1141 17.9 Key, Cam Latch 430-1151 17.10 Nut, Locking Door Handle Pkg of 24 226-0100/24 Gold Trim Doors 436-5350 Component Pack (Includes Spring Handles (1) 1/2” & (2) 1/4”, (2) Hinge Pins, Quadra-Fire Logo) Nickel Trim Doors 436-5360 Gasket, Glass Tape - Field Cut to Size 5 Ft 832-0460 Rope, Door, 3/4” X 84” - Field Cut to Size 7 Ft 832-1680 Screw, Flat Head Philips 8-32 X 1/2 Pkg of 10 832-0860 Washer, Sae, 3/8 Pkg of 3 832-0990 Additional service part numbers appear on following page. 04/11 Page 42 7033-277I July 7, 2011... - Page 43 Depot ITEM DESCRIPTION COMMENTS PART NUMBER Blower, Convection - Replacement Blower 812-4900 Hinge Pins, 1/2”, Gold 832-0250 Pre SN 0071959142 Hinge Pins, 1/2”, Nickel 430-5320 Hinge Pins, 1/2”, Black 7000-606/2 Post SN 0071959142 Gold 200-3180 Logo, Quadra-Fire Nickel 200-3240 Spring Handle, 1/2”, Gold 832-0620 Pre SN 0071959142 Spring Handle, 1/2”, Nickel 250-8330 Spring Handle, 1/2”, Black SRV7000-613 Post SN 0071959142 Spring Handle, 1/4”, Gold 832-0630 Pre SN 0071959142 Spring Handle, 1/4”, Nickel 250-8340 Spring Handle, 1/4”, Black SRV7000-614 Post SN 0071959142...
-
Page 44: Exploded Drawing (Step Top)
3100 ACC (Step Top) Service Parts Beginning Manufacturing Date: Sept. 2006 Step Top - Wood Stove Ending Manufacturing Date: Active C. Exploded Drawing 31ST-ACC (Advanced Combustion Control) Part number list on following page. 04/11 Figure 44.1 Page 44 7033-277I July 7, 2011... -
Page 45: Srv Parts & Accessories (St)
3100 ACC (Step Top) Service Parts Beginning Manufacturing Date: Sept. 2006 Ending Manufacturing Date: Active D. Service Parts & Accessories IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER Air Channel, Convection SRV7033-144 w/Bracket (Retain Original SN Label) Air Supply Back SRV7033-134 Panel Assembly, Side, Left 7033-038 #4 Brick Set Assembly No brick, Grate Location 9”... - Page 46 3100 ACC (Step Top) Service Parts Beginning Manufacturing Date: Sept. 2006 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER #14 Burn Rate Control Assembly #16 Pedestal Assembly #15 Leg Assembly 14.10 14.1 15.1 16.1 16.3 14.9...
- Page 47 3100 ACC (Step Top) Service Parts Beginning Manufacturing Date: Sept. 2006 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER #17 Door Assembly 17.1 17.10 17.2 17.9 17.8 17.6 17.7 17.3 17.5 17.4 Black 832-1092 17.1 Door Assembly...
- Page 48 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for Stocked your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER Blower, Convection - Replacement Blower 812-4900 Channel, Ash Removal Step-Top 7033-172 Gold Trim Doors 436-5350 Component Pack (Includes Spring Handles (1) 1/2” & (2) 1/4”, (2) Hinge Pins, Quadra-Fire Logo) Nickel Trim Doors 436-5360 Gold 832-0250 Hinge Pins, 1/2” (Qty 2) Nickel 430-5320 Gold 200-3180 Logo, Quadra-Fire Nickel 200-3240 Gold (Pkg of 2) 832-0630 Spring Handle, 1/4” Nickel (Qty 2 req) 250-8340 Component Pack, Step Top, (Touch-Up Paint, Owners Manual &...
-
Page 49: Service And Maintenance Log
3100 Wood Stove Series (ACC) E. Service and Maintenance Log Date of Service Performed By Description of Service Page 49 July 7, 2011 7033-277I... -
Page 50: Warranty Policy
3100 Wood Stove Series (ACC) F. Warranty Policy Page 50 7033-277I July 7, 2011... - Page 51 3100 Wood Stove Series (ACC) Page 51 July 7, 2011 7033-277I...
-
Page 52: Contact Information
Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer, log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL • Read, understand and...
