Quadra-Fire 31M-ACC-MBK Manual

3100 millennium wood appliance
Hide thumbs Also See for 31M-ACC-MBK:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with question on installation, operation, or service.
NOTICE: DO NOT DISCARD THIS MANUAL

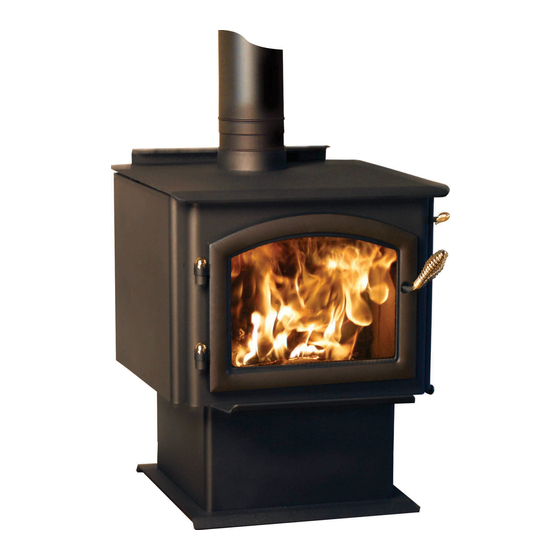

3100 Millennium Wood Appliance
Model(s):
31M-ACC-MBK
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over-fire and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Owner's Manual
Operation & Care
O-T L
Portland
Tested and
Oregon USA
Listed by
C
US
OMNI-Test Laboratories, Inc.
7033-329A
WARNING
If the information in these instruc-
tions is not followed exactly, a
fire could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not over-fire - If appliance or chim-
ney connector glows, you are over-firing.
Over-firing will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
appliance.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other flammable
materials away.
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
November 29, 2016

Advertisement

Table of Contents
loading

Related Manuals for Quadra-Fire 31M-ACC-MBK

Summary of Contents for Quadra-Fire 31M-ACC-MBK

  • Page 1 3100 Millennium Wood Appliance damage, personal injury, or death. Model(s): • Do not store or use gasoline or other flam- 31M-ACC-MBK mable vapors and liquids in the vicinity of this or any other appliance. • Do not over-fire - If appliance or chim- ney connector glows, you are over-firing.

  • Page 2: Sample Of Serial Number / Safety Label

    3100 Millennium Wood Appliance NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction A. Sample of Serial Number / Safety Label LOCATION: Back of appliance CAUTION HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN AND CLOTHING AWAY. CONTACT MAY CAUSE SKIN BURNS. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL FAR AWAY FROM THE APPLIANCE.

  • Page 3: Table Of Contents

    H. Correct Baffle & Blanket Placement .........12 I. Blower Operating Instructions ...........13 J. Opacity (Smoke) ...............13 K. Clear Space ..............14 L. Negative Pressure.............14 M. Frequently Asked Questions ..........15 Quadra-Fire is a registered trademark of Hearth & Home Technologies. November 29, 2016 7033-329A...

  • Page 4: Warranty Policy

    3100 Millennium Wood Appliance C. Warranty Policy Hearth & Home Technologies LIMITED LIFETIME WARRANTY Hearth & Home Technologies, on behalf of its hearth brands (“HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...
  • Page 5 3100 Millennium Wood Appliance WARRANTY CONDITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...

  • Page 6: Quick Start Guide

    3100 Millennium Wood Appliance D. Quick Start Guide Note: These are generic drawings and may not represent your specific model. 10 Pieces of Newspaper, 10-20 Pieces of Dry Kindling ITEMS NEEDED FOR FIRST FIRE: and a Few Pieces of Dry Split Wood. OPEN AIR CONTROLS ADD NEWSPAPER LOAD WOOD...

  • Page 7: Listing And Code Approvals

    (8600) times the efficiency. NOTE: Hearth & Home Technologies, manufacturer of The Quadra-Fire 3100 Millennium Wood Appliance (ACC) this appliance, reserves the right to alter its products, their meets the U.S. Environmental Protection Agency’s 1990 specifications and/or price without notice.

  • Page 8: Operating Instructions

    • Chimney connector or appliance glowing placed on the burning of wood for home heating. In order to • Roaring, rumbling noises improve the situation, we at Quadra-Fire have developed cleaner-burning wood appliances that surpass the require- • Loud cracking or banging sounds ments for emissions established by our governing agencies.

  • Page 9: Air Controls

    3100 Millennium Wood Appliance very important that the flames be maintained and not allowed 2. Maximize Heat with The ACC System to go out. This will ensure the cleanest possible fire. If the To maximize heat output with the ACC timer System or flames tend to go out, it is set too low for your burning condi- also known as high burn push the ACC Air Control lever tions.

  • Page 10: Burn Rates And Operating Efficiency

    3100 Millennium Wood Appliance F. Burn Rates and Operating Efficiency WARNING For maximum operating efficiency Risk of Fire. This wood appliance has a manufacturer-set minimum low When set on High Burn Rate and over-riding the Auto- burn rate that must not be altered. It is against federal reg- matic Combustion Control system an over fire situation ulations to alter this setting or otherwise operate this wood can occur and may result in a chimney fire.

  • Page 11: Building A Fire

    3100 Millennium Wood Appliance G. Building A Fire NOTE: Before lighting your first fire in the appliance: • Build fire on brick firebox floor. • Do NOT use grates, andirons or other methods to support NOTE: The special high temperature paint that your appli- fuel.

  • Page 12: Correct Baffle & Blanket Placement

    3100 Millennium Wood Appliance H. Correct Baffle & Blanket Placement INCORRECT POSITIONS WARNING Fire Risk Firebox damage due to improper baffle place- ment is not covered by warranty. Operate the wood burning appliance with the baffle in the correct position only. Not doing so could result in: •...

  • Page 13: Blower Operating Instructions

    I. Blower Operating Instructions This is the measure of how cleanly your appliance is burn- NOTE: If your Quadra-Fire wood appliance is equipped with ing. Opacity is measured in percent; 100% opacity is when an optional blower, you should follow these guidelines:...

  • Page 14: Clear Space

    3100 Millennium Wood Appliance K. Clear Space L. Negative Pressure • Do NOT place combustible objects within 4 ft (1.2 m) of WARNING the front of appliance. See Figure 14.1. • Mantel - avoid placing candles and other heat-sensitive Asphyxiation Risk. objects on mantel or hearth.

  • Page 15: Frequently Asked Questions

    3100 Millennium Wood Appliance M. Frequently Asked Questions ISSUES SOLUTIONS Odor from appliance When first operated, this appliance may release an odor for the first several hours. This is caused by the curing of the paint and the burning off of any oils remaining from manufacturing. Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct.

  • Page 16: Maintenance And Service

    3100 Millennium Wood Appliance Maintenance and Service A. Quick Reference Maintenance Guide CAUTION! Allow the appliance to completely cool When properly maintained, your fireplace will give you down before performing any cleaning or maintenance. many years of trouble-free service. Contact your dealer to Start the first inspection after the first 2 months of use, or if answer questions regarding proper operation, troubleshoot- performance changes, and adjust your schedule according-...

  • Page 17: General Maintenance

    3100 Millennium Wood Appliance B. General Maintenance Clean all the fingerprints and oils from plated surfaces BEFORE firing the appliance for the first time. If not cleaned 1. Creosote (Chimney) Cleaning properly before lighting your first fire, the oils can cause permanent markings on the plating.

  • Page 18: Troubleshooting Guide

    3100 Millennium Wood Appliance Troubleshooting Guide With proper installation, operation, and maintenance your wood appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist you or a qualified service person in the diagnosis of a prob- lem and the corrective action to be taken.

  • Page 19: Service Part Replacement

    Replace the door on the appliance. disc. 3. Pull the snap disc and spade connectors up and out of Quadra-Fire appliances are equipped with ceramic super bracket as shown in Figure 19.1 heat-resistant glass, which can only be broken by impact or misuse.

  • Page 20: Door Handle Assembly

    3100 Millennium Wood Appliance D. Door Handle Assembly 1. Install washer on door handle shaft. 2. Slide door handle through door. 3. Install second washer(s) as shown in Figure 20.1. 4. Install key in groove. 5. Align groove in latch cam with key; slide latch cam over shaft 6.

  • Page 21: Tube Channel Assembly Replacement

    3100 Millennium Wood Appliance E. Tube Channel Assembly Replacement NOTE: Service Space Removing Tube Channel Assembly In order to replace the tube channel assembly a clear- 1. Remove the right side shield by removing 2 screws in the ance of 19 inches (483mm) is required on the right side of back using a Phillips head screw driver.

  • Page 22: Reference Materials

    3100 Millennium Wood Appliance Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service 7033-329A November 29, 2016...

  • Page 23: Service Parts & Accessories

    Service Parts Millennium - Wood Stove Beginning Manufacturing Date: July 2006 Advanced Combustion Control (ACC) Ending Manufacturing Date: Active 31M-ACC-MBK (7/06 - Active), 31M-ACC-GT (7/06 - 10/06), 31M-ACC-NT (7/06 - 10/06) Part number list on following page. 09/16 November 29, 2016...
  • Page 24 3100 Millennium Wood Appliance 31M-ACC Service Parts Beginning Manufacturing Date: July 2006 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
  • Page 25 3100 Millennium Wood Appliance 31M-ACC Service Parts Beginning Manufacturing Date: July 2006 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.

  • Page 26: Door Assembly

    Glass Frame Set 4 Pieces 832-0350 Gold Trim Doors 436-5350 Component Pack (Includes Spring Handles (1) 1/2” & (2) 1/4”, (2) Hinge Pins, Quadra-Fire Logo) Nickel Trim Doors 436-5360 Gasket, Glass Tape - Field Cut to Size 5 Ft 832-0460 Rope, Door, 3/4”...
  • Page 27 832-0250 Pre SN 0071959142 Hinge Pins, 1/2”, Nickel 430-5320 Hinge Pins, 1/2”, Black 7000-606/2 Post SN 0071959142 Gold 200-3180 Logo, Quadra-Fire Nickel 200-3240 Spring Handle, 1/2”, Gold 832-0620 Pre SN 0071959142 Spring Handle, 1/2”, Nickel 250-8330 Spring Handle, 1/2”, Black...

  • Page 28: Contact Information

    Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL...
