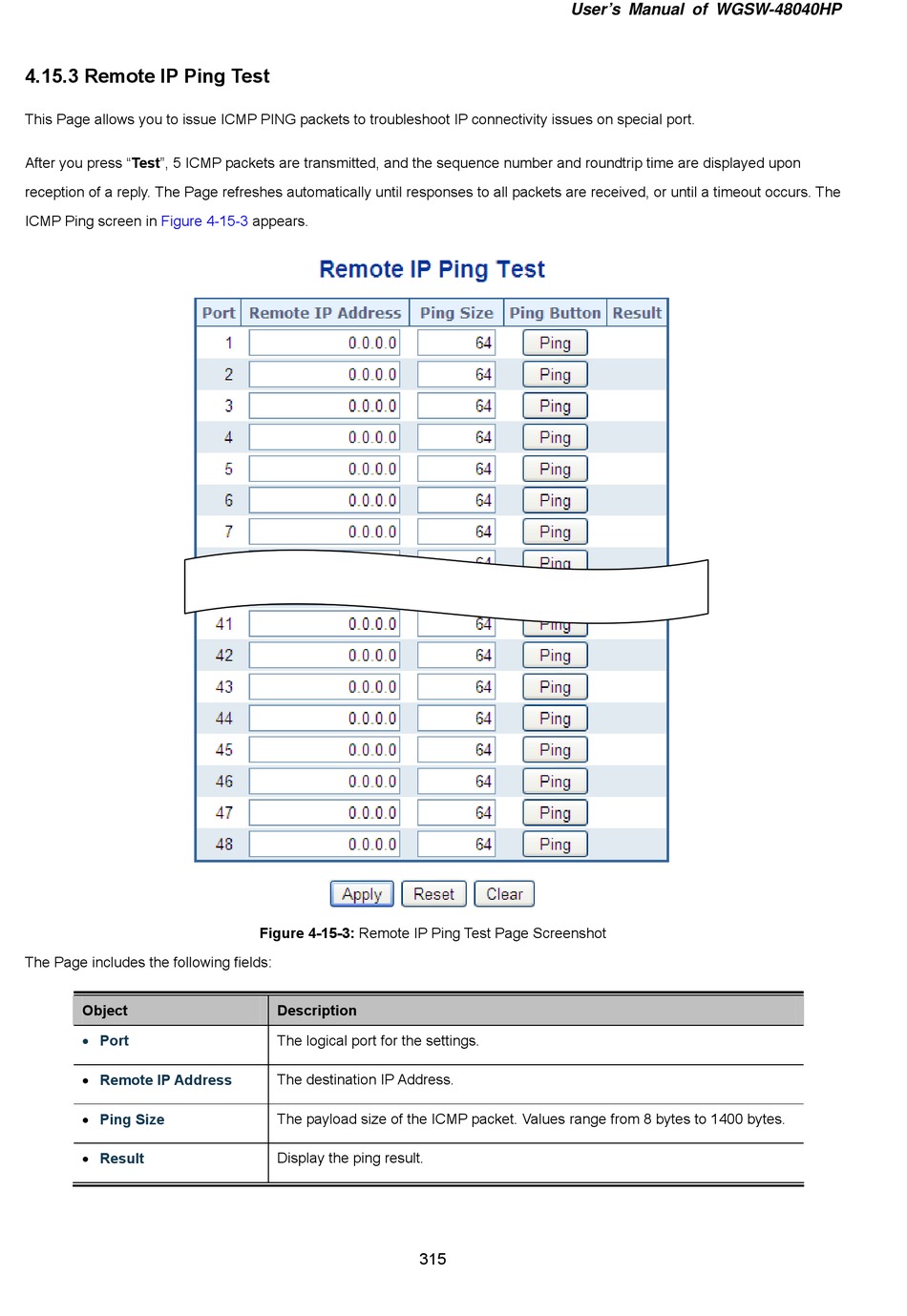

4.15.3 Remote IP Ping Test
This Page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues on special port.
After you press "Test", 5 ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon
reception of a reply. The Page refreshes automatically until responses to all packets are received, or until a timeout occurs. The
ICMP Ping screen in
Figure 4-15-3
The Page includes the following fields:
Object
Port
Remote IP Address
Ping Size
Result
appears.
Figure 4-15-3: Remote IP Ping Test Page Screenshot
Description
The logical port for the settings.
The destination IP Address.
The payload size of the ICMP packet. Values range from 8 bytes to 1400 bytes.
Display the ping result.
User's Manual of WGSW-48040HP
315
