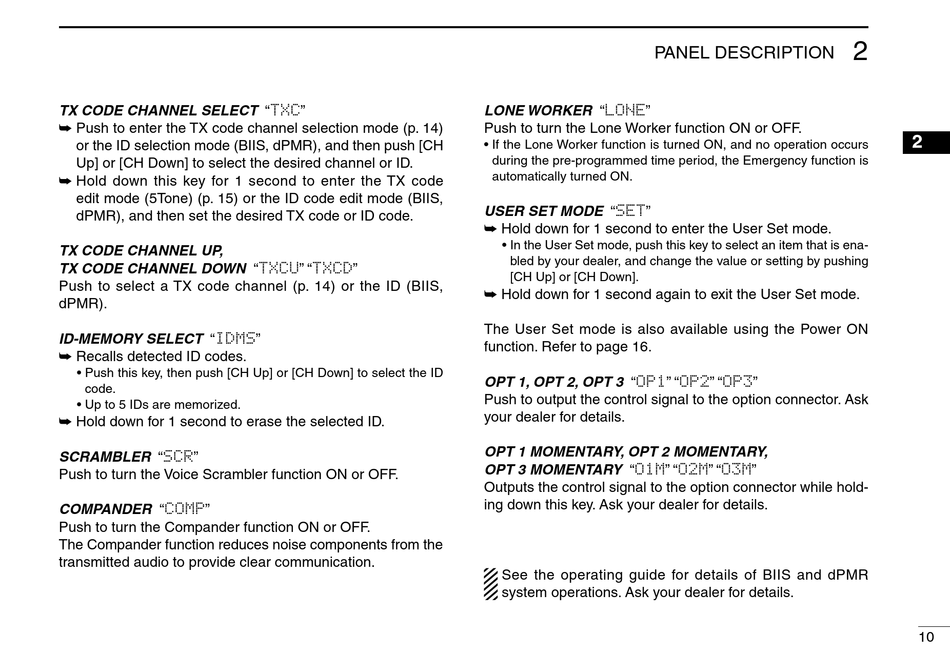

Panel Description - Icom IC-F3162DT Instruction Manual

TX CODE CHANNEL SELECT "TXC"
➥ Push to enter the TX code channel selection mode (p. 14)
or the ID selection mode (BIIS, dPMR), and then push [CH
Up] or [CH Down] to select the desired channel or ID.
➥ Hold down this key for 1 second to enter the TX code
edit mode (5Tone) (p. 15) or the ID code edit mode (BIIS,
dPMR), and then set the desired TX code or ID code.
TX CODE CHANNEL UP,
TX CODE CHANNEL DOWN "TXCU" "TXCD"
Push to select a TX code channel (p. 14) or the ID (BIIS,
dPMR).
ID-MEMORY SELECT "IDMS"
➥ Recalls detected ID codes.
• Push this key, then push [CH Up] or [CH Down] to select the ID
code.
• Up to 5 IDs are memorized.
➥ Hold down for 1 second to erase the selected ID.
SCRAMBLER "SCR"
Push to turn the Voice Scrambler function ON or OFF.
COMPANDER "COMP"
Push to turn the Compander function ON or OFF.
The Compander function reduces noise components from the
transmitted audio to provide clear communication.

PANEL DESCRIPTION

LONE WORKER "LONE"
Push to turn the Lone Worker function ON or OFF.
• If the Lone Worker function is turned ON, and no operation occurs
during the pre-programmed time period, the Emergency function is
automatically turned ON.
USER SET MODE "SET"
➥ Hold down for 1 second to enter the User Set mode.
• In the User Set mode, push this key to select an item that is ena-
bled by your dealer, and change the value or setting by pushing
[CH Up] or [CH Down].
➥ Hold down for 1 second again to exit the User Set mode.
The User Set mode is also available using the Power ON
function. Refer to page 16.
OPT 1, OPT 2, OPT 3 "OP1" "OP2" "OP3"
Push to output the control signal to the option connector. Ask
your dealer for details.
OPT 1 MOMENTARY, OPT 2 MOMENTARY,
OPT 3 MOMENTARY "O1M" "O2M" "O3M"
Outputs the control signal to the option connector while hold-
ing down this key. Ask your dealer for details.
See the operating guide for details of BIIS and dPMR
system operations. Ask your dealer for details.
