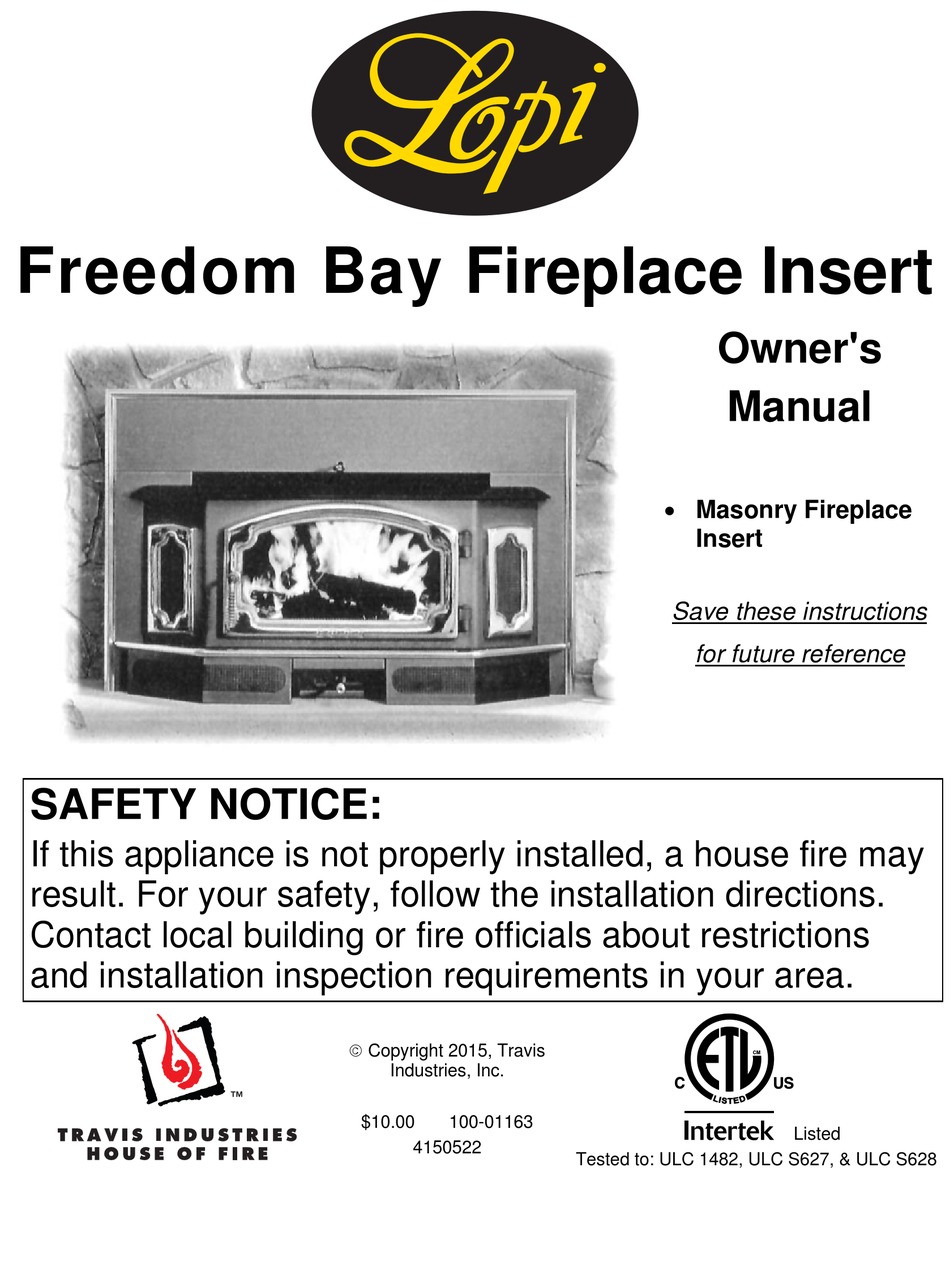

Freedom Bay Fireplace Insert
Owner's
Manual
Masonry Fireplace
Insert
Save these instructions
for future reference
SAFETY NOTICE:
If this appliance is not properly installed, a house fire may
result. For your safety, follow the installation directions.
Contact local building or fire officials about restrictions
and installation inspection requirements in your area.
Copyright 2015, Travis
Industries, Inc.
$10.00
100-01163
Listed
4150522
Tested to: ULC 1482, ULC S627, & ULC S628
